Our new mobile DR system could achieve high-frequency & high-voltage generator, large heat capacity of X-ray tube, battery storage and motorized drive unit, with abundant external interface. It can be widely used in radiology, orthopedic, medical examination department, emergency room, ICU, operating room and neonatal pediatrics, and fully meet the demand of hospital digital radiography.
Analogic X Ray Machine Radiography Machine Medical Diagnostic Equipment Features：
1. Ergonomic design, small space free movement and flexible positioning

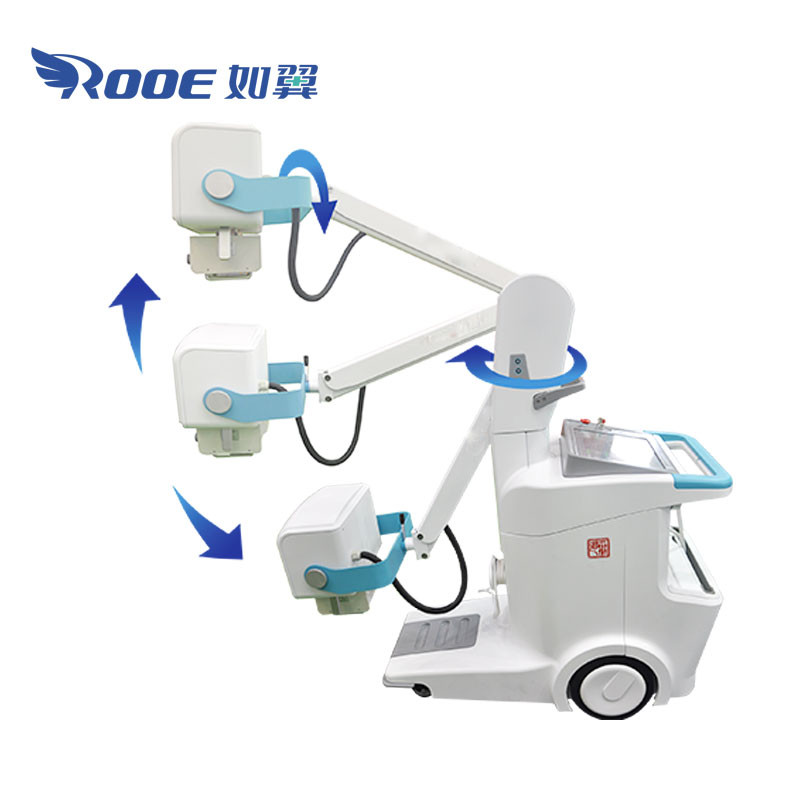

2. Rotating support arm, suitable for narrow ward space, flexible movement
3. High frequency technology ensures optimal image under every operating condition
4. With program photography function, supporting 144 individual bit selection
5. 20KW/32KW high voltage generator power, to meet the photography needs of different parts of various departments
6. Built-in high performance, large capacity rechargeable battery, AC/DC dual, to meet different user needs
7. Wired and wireless remote exposure to achieve remote filming.
8. Parameters are automatically stored in case of power failure.
9. Multifunctional storage box design
Application
orthopedics
Urology department
General surgery
Radiology department
pediatrics
Veterinary (Animal Husbandry - Small Animals)
| Model | PLX100-20R | PLX100-20DR | PLX100-32R | PLX100-32DR | |
| Voltage | AC220V ± 22V | ||||
| Generator | Output Power | 20kW | 32kw | ||
| kV Range | 40～125kV | ||||
| mA Range | 10～320mA | 32~400mA | |||
| mAs Range | 0.5-320mAs | 0.32 ~400mAs | |||
| Working Frequency | ≥100kHz | ||||
| Exposure time | 0.002S～6.3S | 0.002~6.3S | |||
