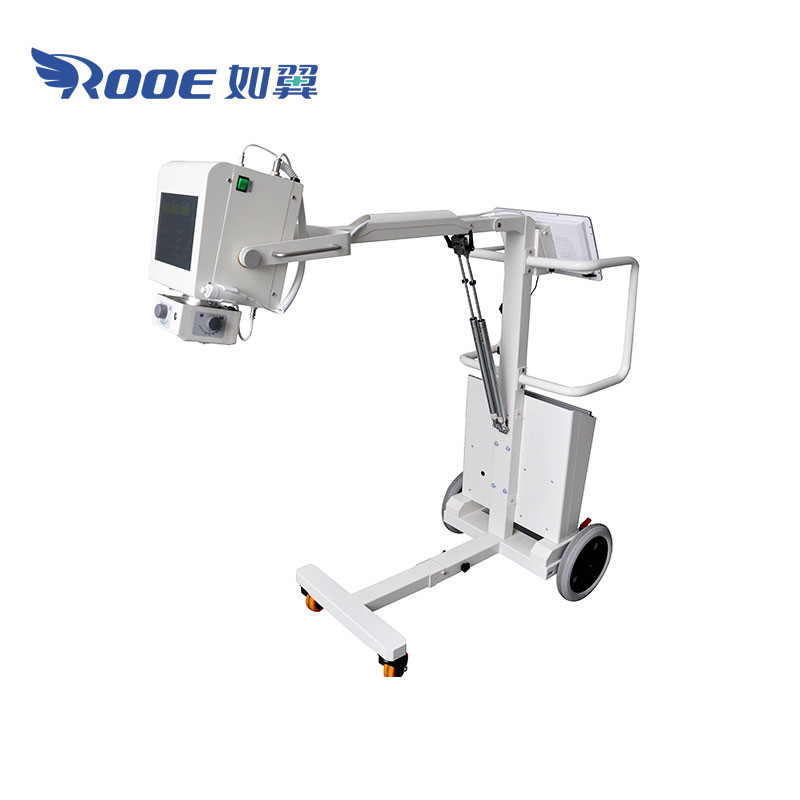

This small, fast and flexible mobile digital X-ray system delivers high quality diagnostic images within a controlled budget. Superior ease of use and wireless workflows provide a wide range of diagnostic capabilities for busy imaging departments.
Rotated Chest X Ray Machine Digital Radiography X Ray Machine Features:
1. The mobile bracket is flexible and convenient, which can meet various positions and make it convenient and fast to handle the box.
2. The APR function allows users to select exposure parameters based on the patient's anatomy.
3. Quick setting of exposure parameters, user-friendly interface.
4. The main X-ray equipment can be placed on the case, manual switch control, exposure control.
5. You can easily carry it from one place to another.
6. Single block X-ray unit with short exposure time to reduce radiation exposure
7. Exposure is controlled by manual switch and remote control, or touch screen.
Model | PLX100-D05DR | |
Voltage | AC220V ± 22V | |
Generator | Output Power | 5kW |
kV Range | 40~110kV | |
mA Range | 20~100mA | |
mAs Range | 0.2-200mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 0.01S~4S | |
X-ray tube | Anode heat storage | 56KHU |
Focus | 1.8mm | |
Inherent filtration | 1mm Al/75Kv | |
Scintillator | CSI | |
Wire Flat Panel Detector | Pixel Matrix | 3328*3328 |
Pixel Pitch | 127um | |
A/D Conversion | 14bit | |
Dimension | 15.6inch | |
All-in-one PC | Memory | 8G |
Disk Capacity | 512G | |
Resolution | 1920*1080 | |
Net Weight | 70KGS | |
Laptop | CPU | Intel Core i5 |
Optional | Memory capacity | 4GB |
Mobile Machine Frame | Max.Height | 200cm |
Width | 66cm | |
SID | 50~200cm |
