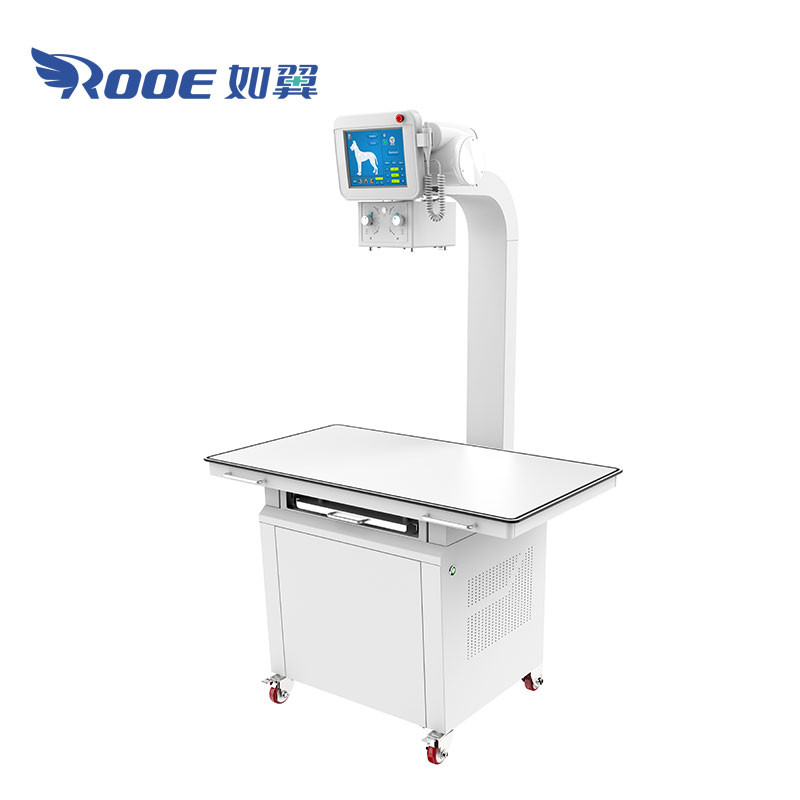

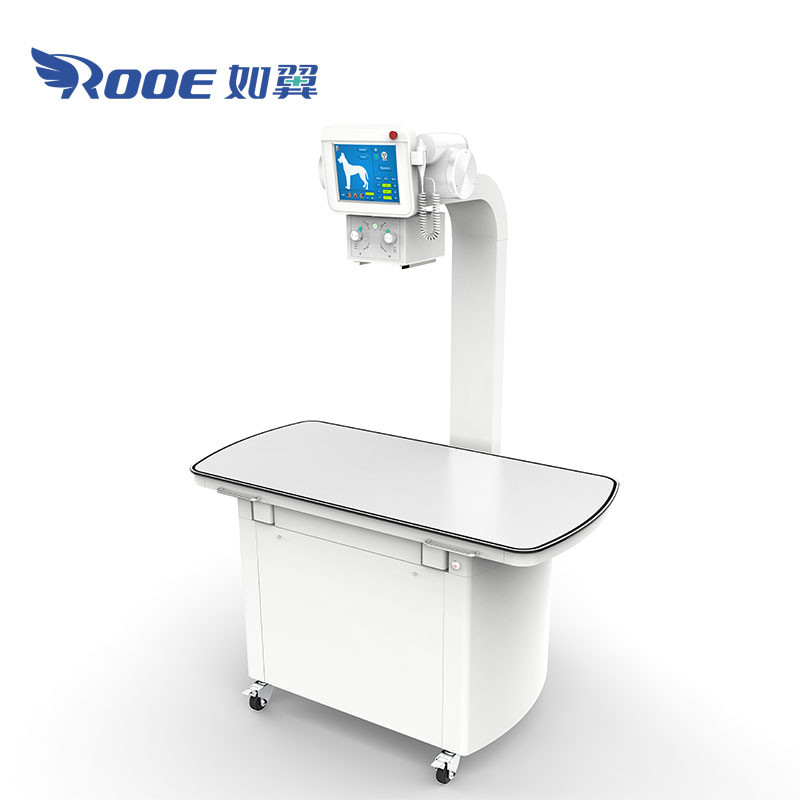

Animal digital X-ray photography system is a perfect, safe and efficient digital X-ray image acquisition system, with a wider range of application, can shoot a variety of animals, kV range of 40~125, MA range of 32~400, enough penetration and exposure.
Horse/Cat/Dog Pet X Ray Machine Price Veterinary Imaging Equipment Features：
1. A 17*17cm flat panel detector can meet all their imaging needs.
2. Intelligent and efficient image processing software, greatly improving image quality
3. A 4-way floating table with different table lengths for most small and medium-sized pet checks
4. Manual/remote control exposure, flexible and compact structure.
5. Small floor area, meet a variety of installation conditions
6. Height-adjustable display provides simple visualization of operating state.
7. X-ray photography can be prepared and triggered by a 2-step foot switch.

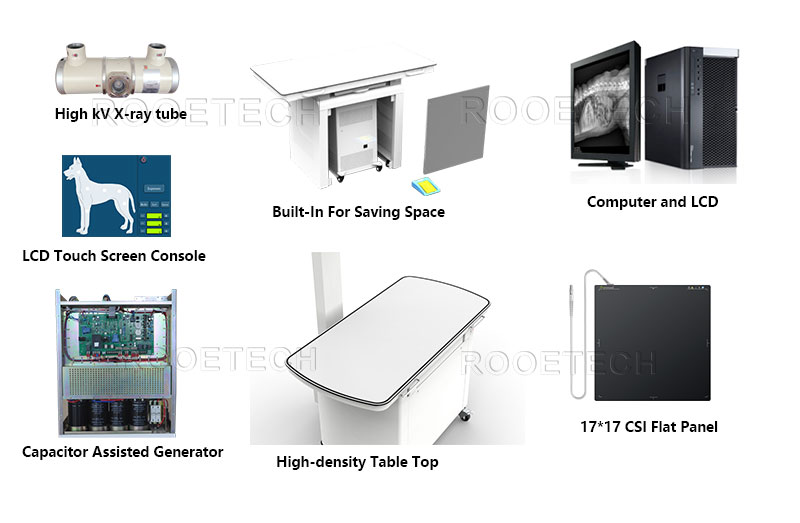

8. The 20KW/32KW high frequency generator is integrated into the X-ray table to optimize the space of the X-ray room.
| Model | VET1700-D20DR | VET1700-D32DR | |
| X-ray Generator | Output Power | 20kW | 32kW |
| Power Voltage | 220V±22V | 220V±22V | |
| kV range | 40~120kV | 40~125kV | |
| mA range | 32~200mA | 32~400mA | |
| mAs range | 0.32 ~200mAs | 0.32 ~400mAs | |
| Loading time | 10~4000ms | 10~5000ms | |
| X-ray Tube | Small focus | 1 | 1 |
| Large focus | 2 | 2 | |
| Anode speed | 2800r/min | 2800r/min | |
