Engineered for increasingly complex surgical scenes, AOT800 comes with extreme loads in any position. The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up to 310mm makes the AOT800 even more versatile.
Spine Surgery Operating Table OT Table Description:
The spine surgery operating table is a high-performance modular with outstanding functions suitable for any surgical specialty. Our OT table only requires the exchange of several modules, so that the operating room team can customize the operating table for each surgery and patient. Lightweight carbon fiber modules allow easy installation and removal to maximize workflow flexibility and efficiency.
Ultra Low&High Medical Universal Operating Table Surgery Features:
General features:

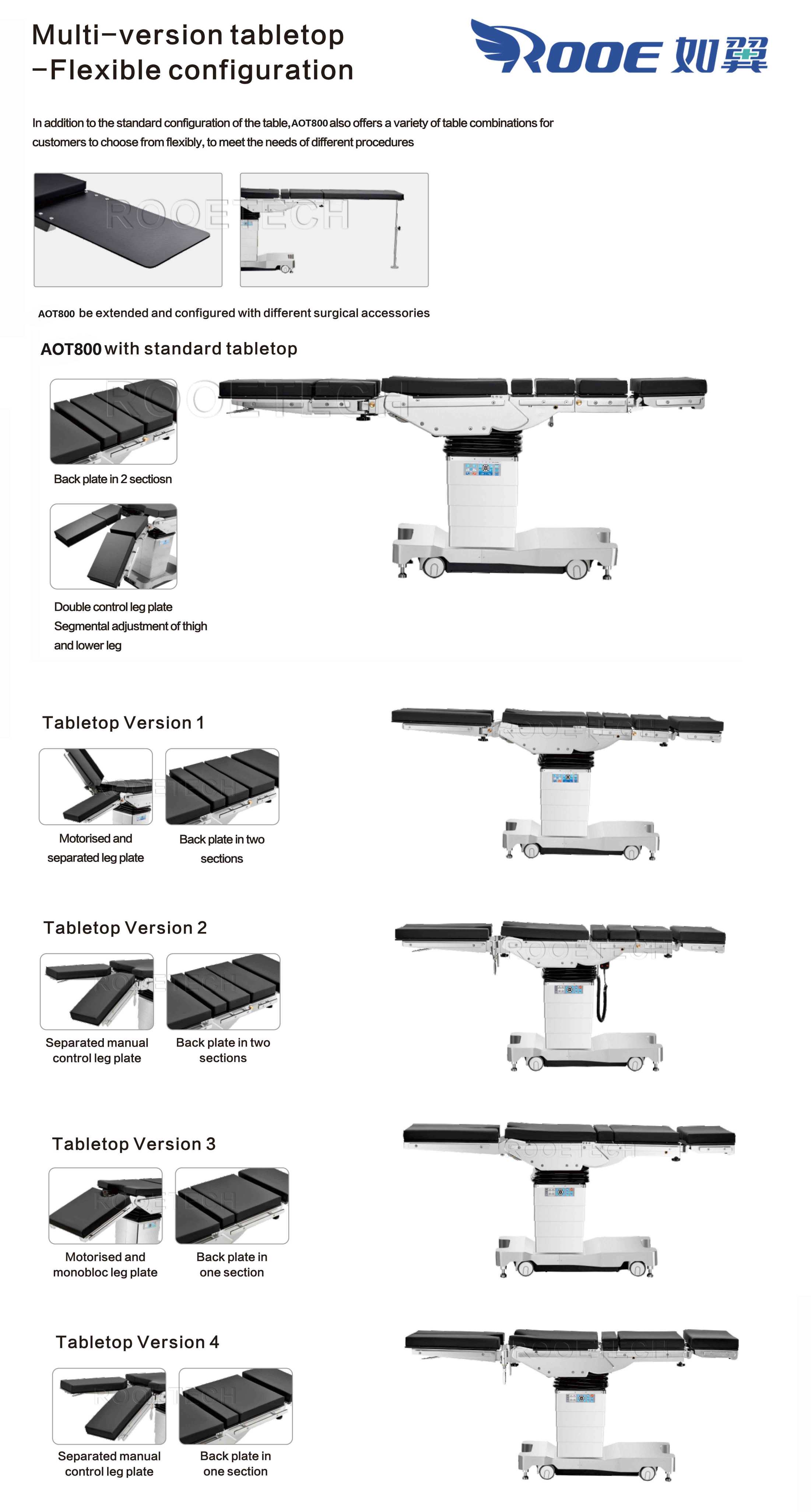

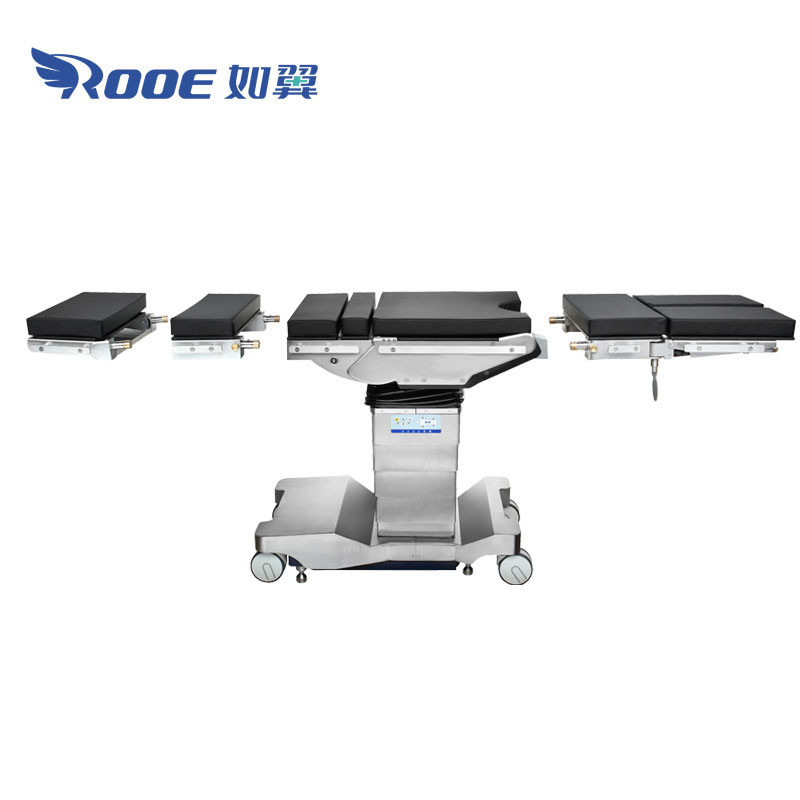

1. Modular design desktop, suitable for various surgical disciplines. Detachable back and legs for quick attachment and positioning.
2. Easy click connection design, for different requirements of the operating table to provide convenient, safe, intuitive modular installation scheme. Lightweight modular components can be quickly and easily fitted and changed to suit surgical needs.
3. The stainless steel base and column housing are made of stainless steel and the surfaces are treated with the most advanced procedures to ensure longer table life and higher resistance to antibacterial products.
4. The panel is made of high strength transparent board, which is very convenient for ray observation.
5. Can be moved on four extremely smooth wheels and can be easily used in a narrow room.

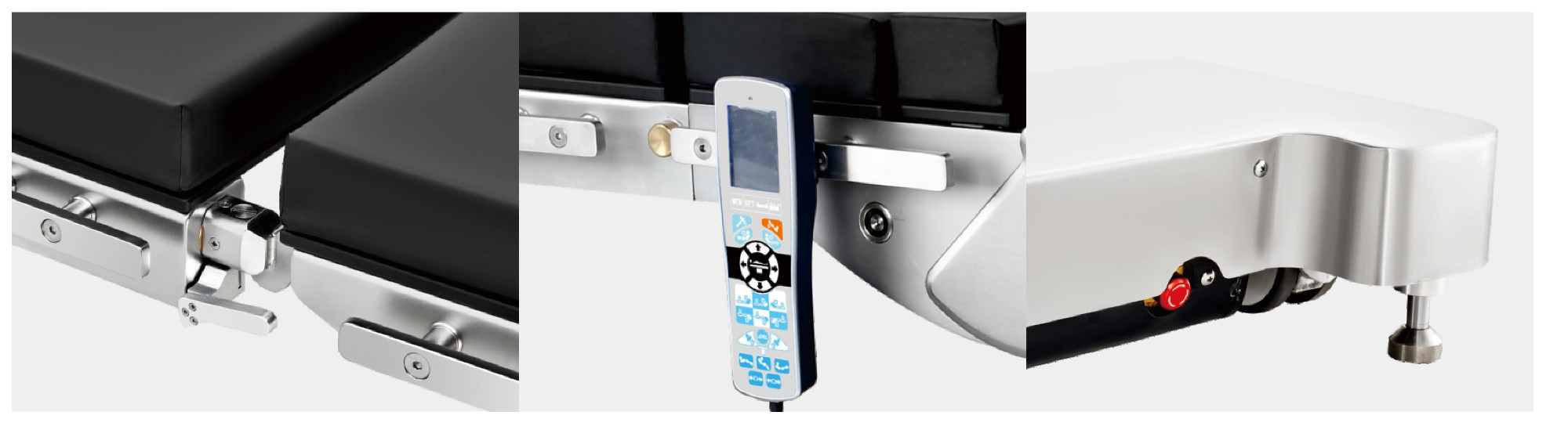

6. Manual controller is equipped with safety lock to avoid accidental movement of the table.
7. Equipped with large casters, this operating table can be transferred regardless of the terrain.

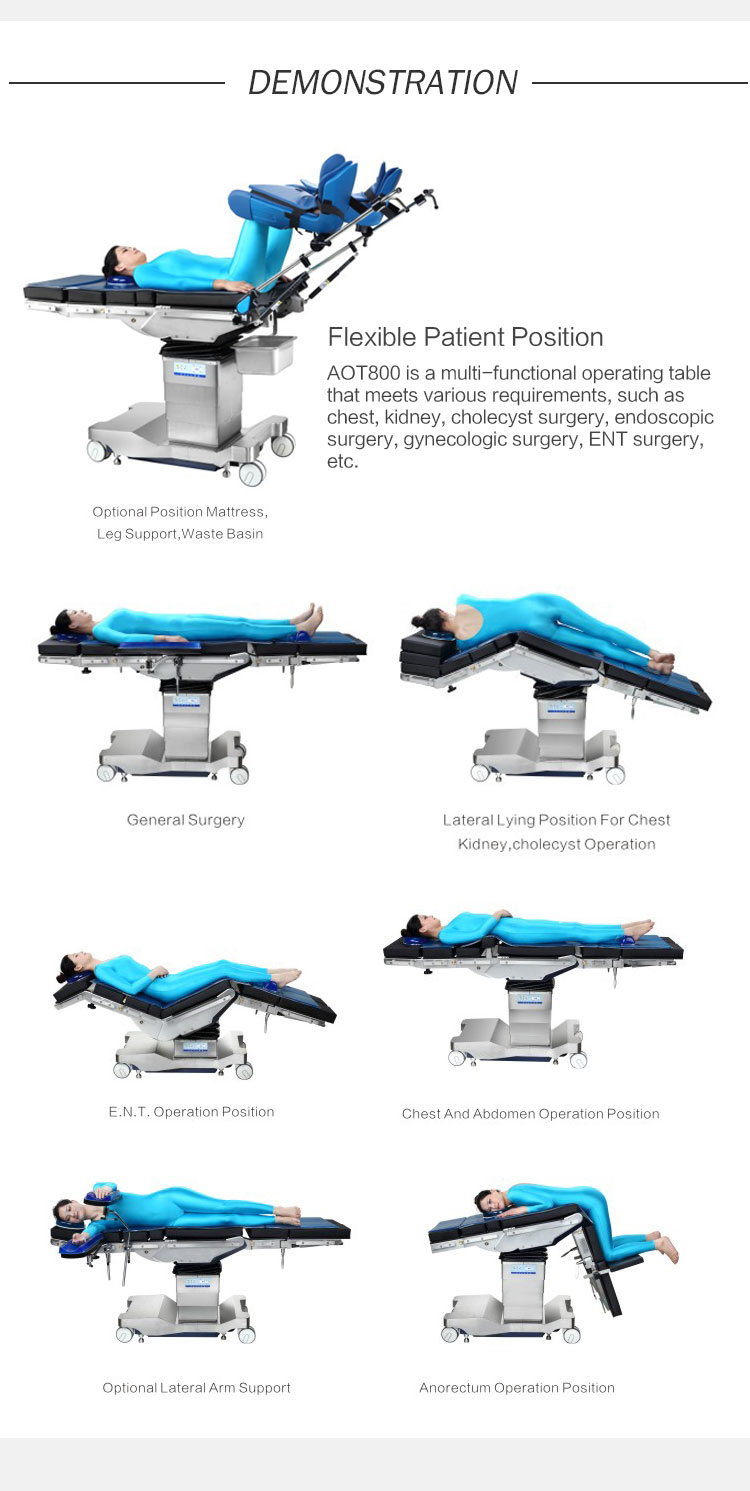

8. It is a multi-functional operating table, which can meet the needs of thoracic surgery, renal surgery, gallbladder surgery, endoscopic surgery, gynecological surgery, ent surgery and other operations.
Modular design benefits:
1. Higher imaging quality, the best stability to meet more endoscopic surgery
2. Module identification system, color coding indicator technology and intelligent collision protection system enhance patient safety
3. Easy to use, easy to move, improve operating room efficiency
Technical Features:

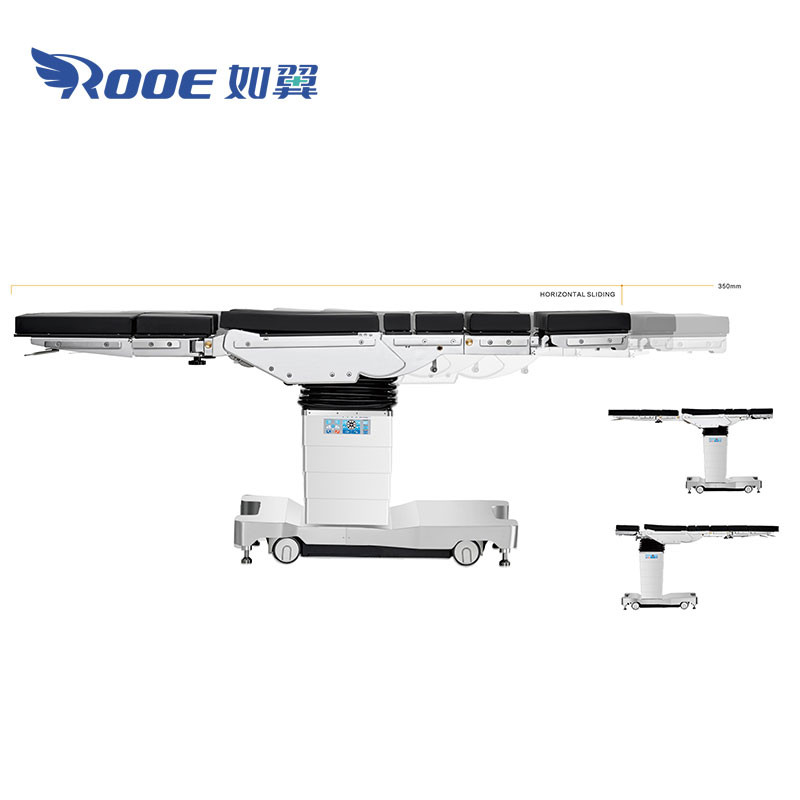

1. The longitudinal slide can reach 310mm, and the C-arm can be freely entered without patient reduction
2. Extreme weight load capacity of 350 kg, with the highest safety and stability

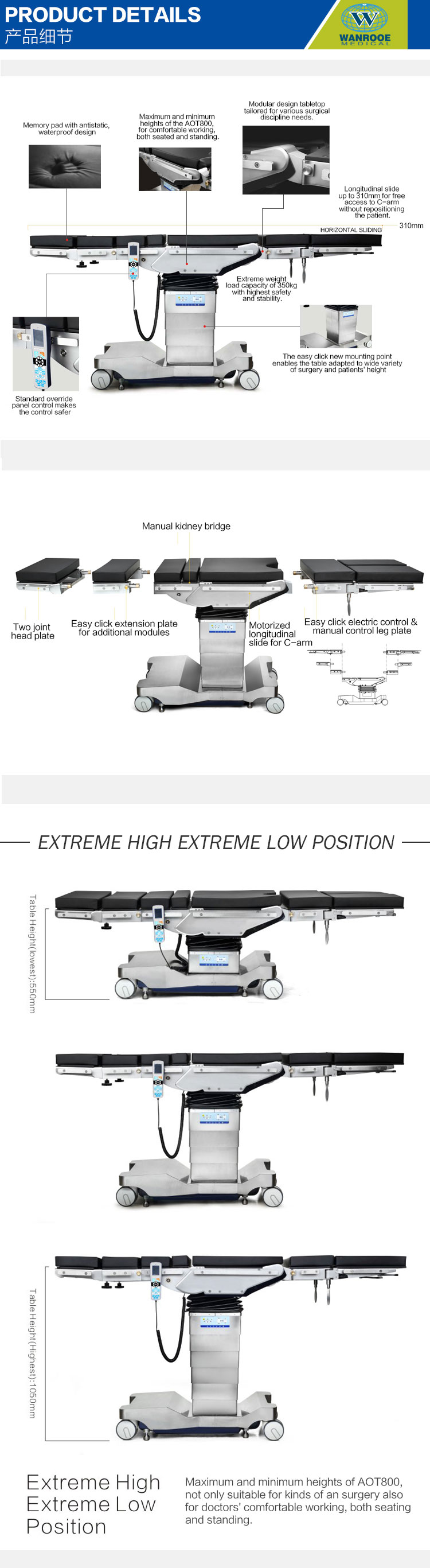

3. The extremely high and low positions are not only suitable for various operations, but also for the comfortable work of doctors.
4. Dual control system. It can be controlled by hand remote control, and can also be operated by the supercontrol panel on the column in case of emergency. (e.g. Flex, Reflex ,0- position or foot locking).
5. The elevation of renal bridge is controlled by manual handle.
6. One-button reset function, just one button can restore the operating table to the horizontal zero position;
Electrical characteristics:
1. Optional spare battery system, which can supply power to the workbench for several hours in case of power failure.
Main Parameter | |
Model | AOT800 |
Operating Table Size | |
Length | ≥2100mm |
Width | ≥550mm |
Table Overall Adjustable Range | |

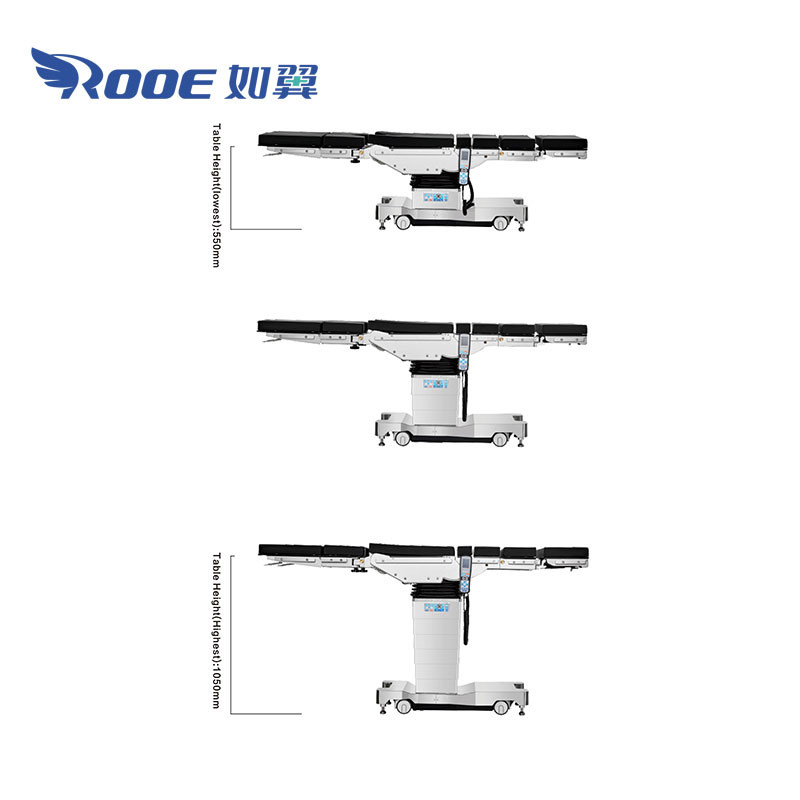

Min. height of table top from floor | ≤550mm |
Max. height of table top from floor | ≥1050mm |
Tendelenburg | ≥35º |
Reversed tendelenburg | ≥35º |
Lateral tilt | ≥25º |
Backward and forward movements | ≥310mm |
Flex | ≥225º |
Reflex | ≤100º |
Horizonal ratation of tabletop | without |
Table Section Adjustment Range | |
Head section raised from the horizontal | ≥40º |
Head section lowered from the horizontal | ≥90º |
Head section flexible position | ≥40º |
Kidney bridge elevated | ≥120mm |
Back section raised from the horizontal | ≥80º |
Back section lowered from the horizontal | ≥45º |
Electric Leg section raised from the horizontal | ≥80º |
Electric/Manual Leg section lowered from the horizontal | ≥90º |
Foot board can be horizontal or vertical with leg board. | |
Power Supply | AC 220V±10%,50Hz |
Basic Accessories: | Anaesthetic screen: 1 set |
Arm support: 1 pair | |
Body support: 1 pair | |
leg support: 1 pair | |
Shoulder Rest: 1pair | |
Foot plate: 1 pair | |
Cushion: 1 set | |
Manual controller: 1 pc | |
Kidney bridge handle: 1 pc | |
Power cord: 1 pc |
