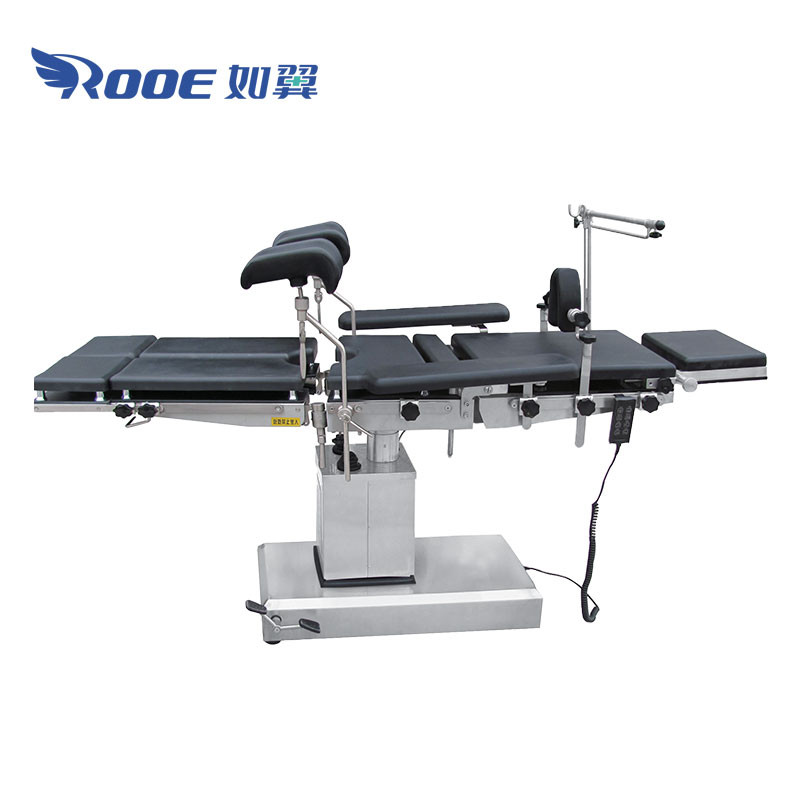

AOT8801 General OT Table Surgery Operating Table

General OT Table Surgery Operating Table Description：

Apply to:

1. General surgery

2. Gynecology and urology

3. Chest surgery

4. Eye surgery

5. Neurosurgery/brain surgery

6. Orthopaedics and trauma

7. Vascular surgery

8. Otolaryngology

General OT Table Surgery Operating Table Features：

General Structural Features：

1. It is composed of head board, back board, waist bridge, sitting board, leg board and other basic accessories.
2. The base and column are covered with 304 stainless steel to ensure the high durability of the operating room.
3. The table is made of phenolic board, plexiglass and other materials to facilitate X-ray fluoroscopy of patients.
4. Four 75mm silent casters are used to move the operating table. Equipped with brakes, casters are locked or released by a pedal lever.
5. Stainless steel side rails accept all kinds of available accessories, equipped with removable attachment clips, easy to use. Equipped with anaesthetic screen, arm rest, body support, leg support, foot plate.
6. The removable memory sponge mattress effectively help patients disperse pressure, reduce the occurrence of bedsores, relieve muscle fatigue and pain caused by long-term anesthesia.
7. The built-in waist bridge manually lifts the rocker arm to raise the waist and expose the surgical field, which can easily adjust the lumbar spine, spine, kidney, gallbladder and other required operations.

Electrical Data：

1. External 220V AC power supply, can be converted to 24V DC drive electric remote control through the power controller.

2. Built-in battery, when the power supply production failure, can be temporarily powered by the internal power supply.

3. Handheld electric remote control adopts 24V DC, easy to operate, safe and reliable.

Technical Features:

1. Table height adjustment, front and back, left and right tilt, vertical translation and other postures are powered by the electric remote control device.
2. Adjust the height from 700 mm to 1000 mm
3. The back board and leg board are designed with air spring and are detachable.
- The leg board can be folded downward and outward, and can be directly connected to the orthopedic traction rack.
- The head board can be folded 45° up and 15° down, manually adjustable;
- Back board up 75°, fold down 15°.
4. Before and after the table electric translation ≥300mm, can be equipped with C arm, X-ray inspection. The mesa translation function can cover the whole body of the patient without moving the patient, and c-arm perspective or whole body photography can be performed, such as cardiovascular photography, body bone perspective, etc.
5. The 30 degree (reverse) Trendelenburg position allows the patient to perform bariatric surgery sitting or standing
6. Maximum carrying capacity of operating table: 250kg
