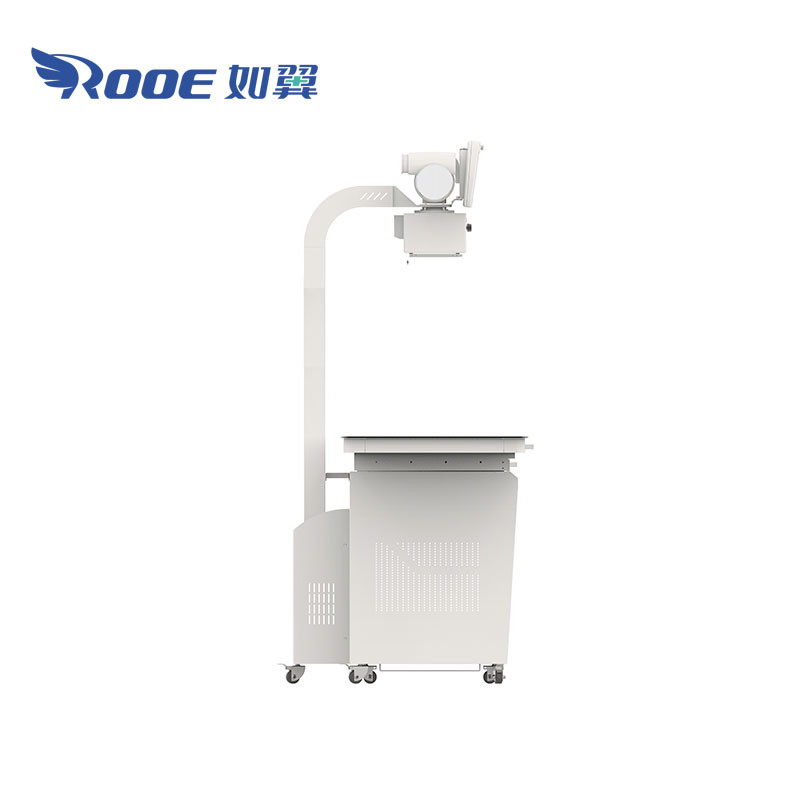

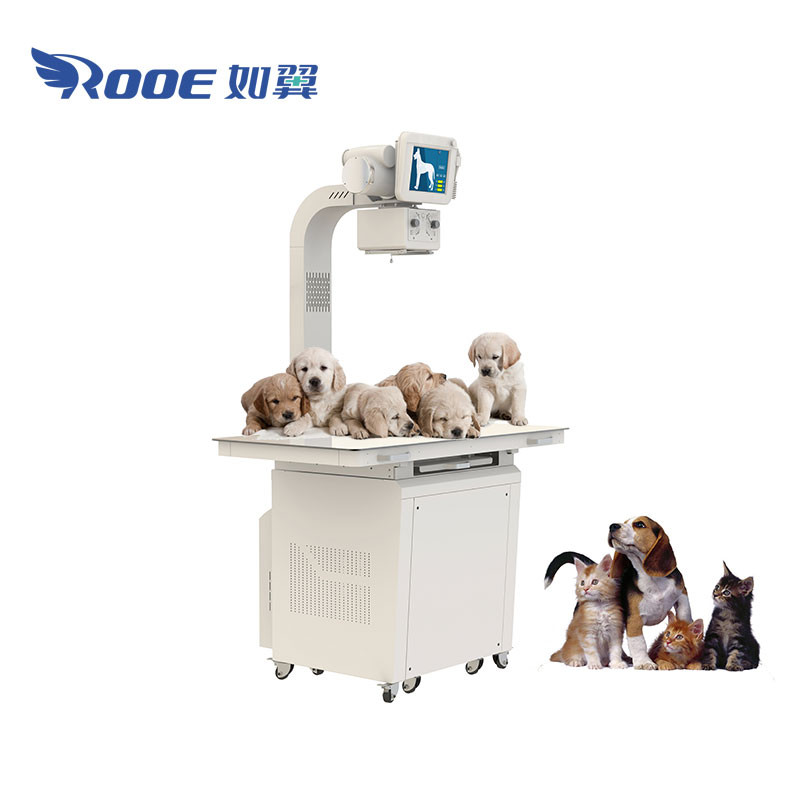

VET1700-D20/32 Analog Horse/Cat/Dog X Ray Machine Veterinary Digital Radiography VET1700-D20/32 Analog Horse/Cat/Dog X Ray Machine Veterinary Digital Radiography

Demand for pet X-ray machines has been increasing. The ability to diagnose various diseases and injuries through X-ray imaging is an important aspect of modern pet care. Pet X-ray machines allow veterinarians to diagnose diseases such as pneumonia, cancer and heart disease in pets. In addition, fractures, joint problems and other injuries in pets can be diagnosed more quickly and accurately using X-ray imaging.

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

Analog Horse/Cat/Dog X Ray Machine Veterinary Digital Radiography Features:

1. Designed for animal photography, easy to operate.

2. Compact structure design, excellent coverage performance, support the whole body multi-angle photography.

3. The four-way floating bed surface can be moved back and forth and left and right, which is more convenient for taking pictures of pet limbs and other parts.

4. Professional animal image acquisition software, with animal graphics as the main parameter setting and remote exposure control mode.

5. There are multiple filming programs, users can modify and save by themselves.

6. The X-ray tube head can be rotated ±180° around the center of the support arm, which is convenient for doctors to take Angle position, lateral position and special Angle photos of animals.

7. After power failure, the system automatically saves the parameters to ensure that the parameters are not lost.

dog x ray machine, horse x ray machine, analog x ray machine, veterinary digital radiography

dog x ray machine, horse x ray machine, analog x ray machine, veterinary digital radiography



ModelVET1700-D20VET1700-D20VET1700-D32
X-ray GeneratorOutput Power20kW32kW32kW
Power Voltage220V±22V
kV range40~120kV40~125kV
mA range32~200mA32~320mA32~400mA
mAs range0.32 ~200mAs0.32 ~200mAs0.32 ~400mAs
Loading time10~4000ms10~5000ms10~5000ms
X-ray TubeSmall focus1
Large focus2
Anode speed2800r/min



×
