It is a multi-functional operating table to meet the requirements of various operations. 350mm horizontal slide, suitable for X-ray and C-arm. The "T-shaped" base design provides enough free space for the doctor. High automation, low noise, high reliability.
General Surgery Hydraulic OT Table With Sliding Tabletop Features:
General Features:
1. The hydraulic ot table with 4 stage structure: head plate, backplane, hip plate, leg plate.
2. Made of high quality 304 stainless steel and aluminum alloy, acid and alkali resistant, corrosion resistant.
Electrical Characteristics:
1. Use electrohydraulic control operating table position, with batteries.
2. Two control methods: electric remote control and column control panel.
Technical Features:

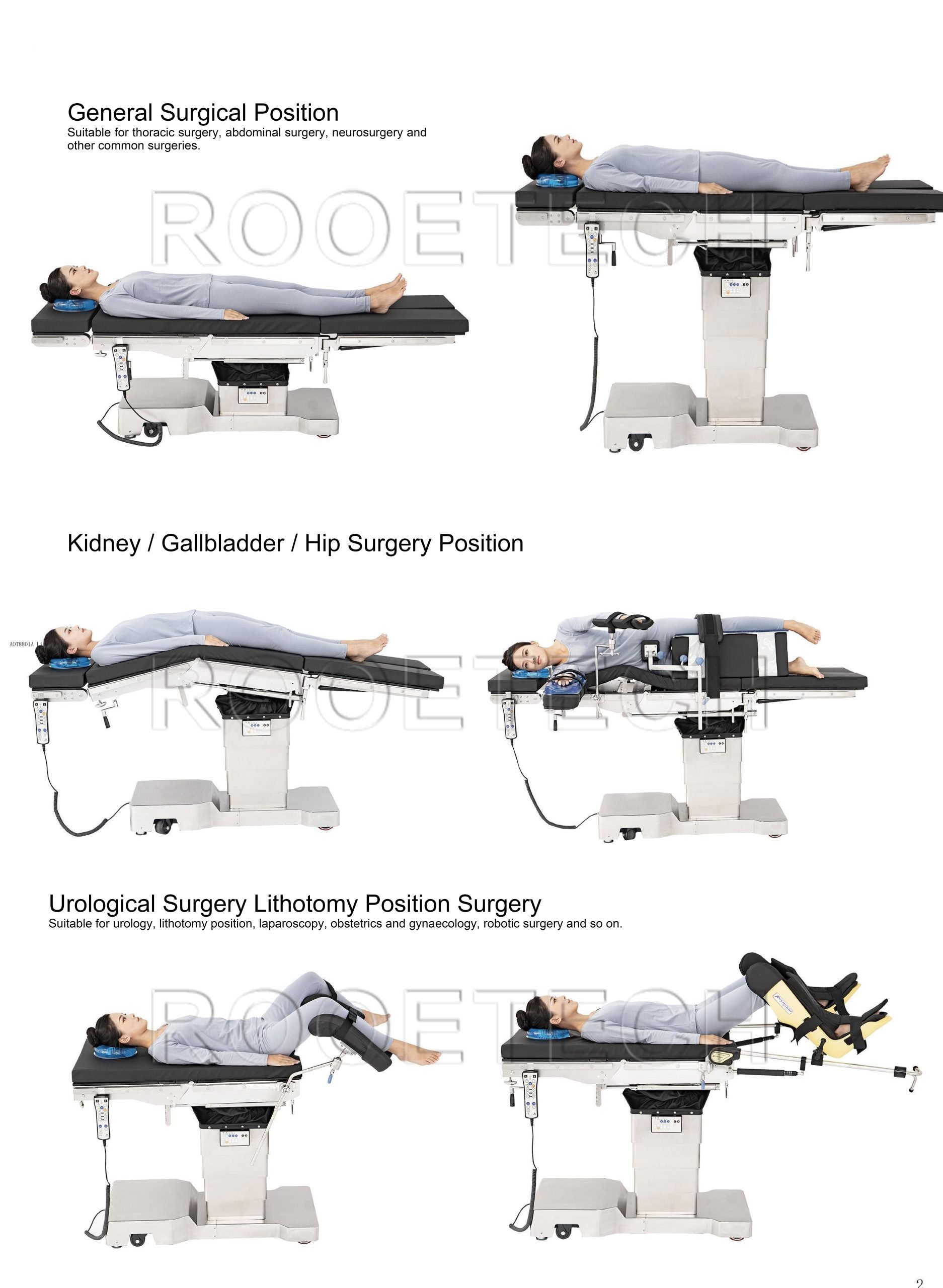

1. Hi-Lo, Trendelenburg and Re-Trendelenburg, left and right tilting, backplane lifting, vertical movement.
2. The electric base brake will completely stabilize the base of the operating table on the floor.
3. The head-to-tail interchange function effectively increases the perspective space and meets the requirements of spinal surgery and other operations.
4. The back plate can be lifted and folded down to facilitate the doctor's access to the surgical position.
5. Split air spring leg plate can be lifted, lowered and separated.
6. Vertical translation 350mm, easy to position during shooting.
7. The Angle of One buttom Flex position and Re-Flex position shall be 220° and 110°.
8. One-click reset function for all kinds of emergencies.
Main Parameter | |
Model | AOT8801A Lite |
Operating Table Size | |
Length | 2070mm |
Width | 540mm |
Height Adjustable Range | |
Min. height of table top from floor | 540mm |
Max. height of table top from floor | 1040mm |
Table Overall Adjustable Range | |
Reversed tendelenburg | ≥30° |
Tendelenburg | ≥30° |
Lateral tilt | ≥22° |
Backward and forward movements | 0-350mm |
Table Section Adjustment Range | |
Head section raised from the horizontal | ≥40º |
Head section lowered from the horizontal | ≥90º |
Kidney bridge elevated | 0-140mm |
Back section raised from the horizontal | ≥80° |
Back section lowered from the horizontal | ≥40° |
Leg section raised from the horizontal | ≥15º |
Leg section lowered from the horizontal | ≥90º |
Leg section opened | ≥90° |
Foot board can be horizontal or vertical with leg board. | |
Power Supply | AC 220V±10%,50Hz |
Basic Accessories: | Anaesthetic screen: 1 set |
Arm support: 1 pair | |
Body support: 1 pair | |
leg support: 1 pair | |
Cushion: 1 set |
