The DR system provides advanced digital X-ray capabilities in a convenient and familiar configuration that provides general radiography services for most practices. Clinicians will gain imaging flexibility, image resolution, and immediate results in both desktop and standing exams, allowing them to make informed decisions faster and help improve your workload and patient satisfaction.

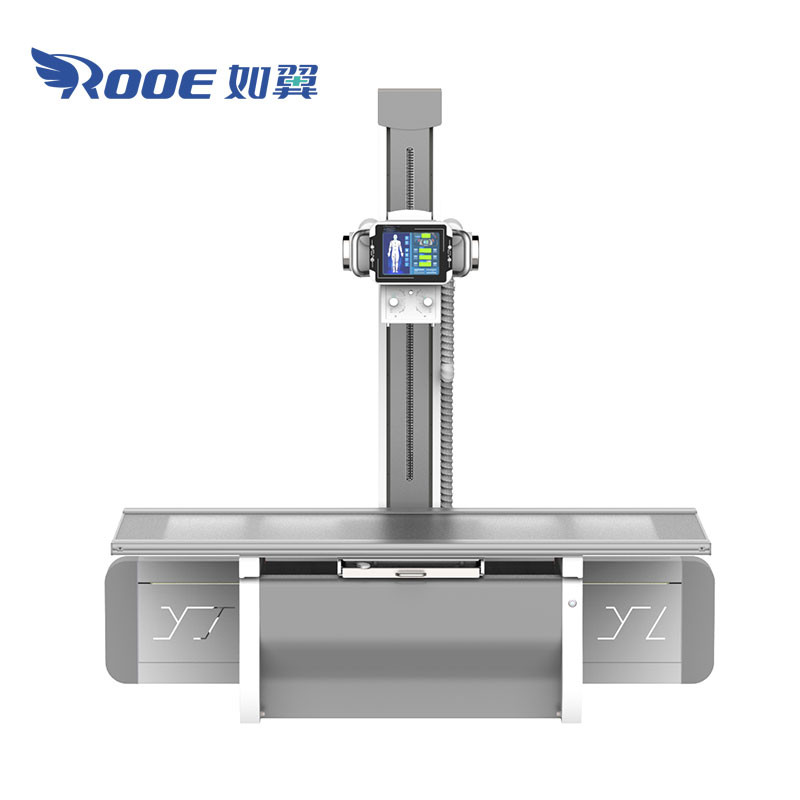

Dual Column DR Fluoroscopy Radiology Systems Features:
1. Fault self-diagnosis and protection.
2. with the tube current automatic calibration function.
3. AEC function, can be adapted to different ionization chamber.
4. analog digital double ring control mode, simple operation, high degree of intelligence.
5. rich interface, and can realize remote diagnosis.
6. with filament hibernation function, effectively protect the X-ray tube assembly, extend its service life.
7. high kV, high current, high power, strong penetration, for the diagnosis of obesity patients.
| Model | PLD7400-65DR-P | |
| X-ray Generator(include console) | Output Power | 65KW |
| Power Voltage | 380V±38V | |
| kV range | 40~150kV | |
| mA range | 10~800mA | |
| mAs range | 0.1 ~630mAs | |
| Exposure time | 2~10000mS | |
| X-ray Tube | Small focus | 0.6 |
| Large focus | 1.2 | |
| Anode speed | 9700r/min | |
| Radiographic Table | Top Table Size | 2100X800X650mm |
| Bucky Size | 18X18inch | |
| Table longitudinal movement | ≥900mm | |
| Cassette Movement Distance | ≥500mm | |
| Vertical Chest Stand | Vertical moving range | ≥1200mm |
| Bucky Size | 18X18inch | |
