Digital X-ray - the direct digital radiography system .The complete solution for digital x-ray applications in medicine. DR supplies highest quality x-ray images with a lower dose rate simultaneously. And you can get it for a very favorable price - compare to other DR-systems on the market! Furthermore our DR device reduces your current labor costs extensively. It eliminates the need for cost-intensive film processing: • No extensive archive • No waste disposal • No chemicals • No films

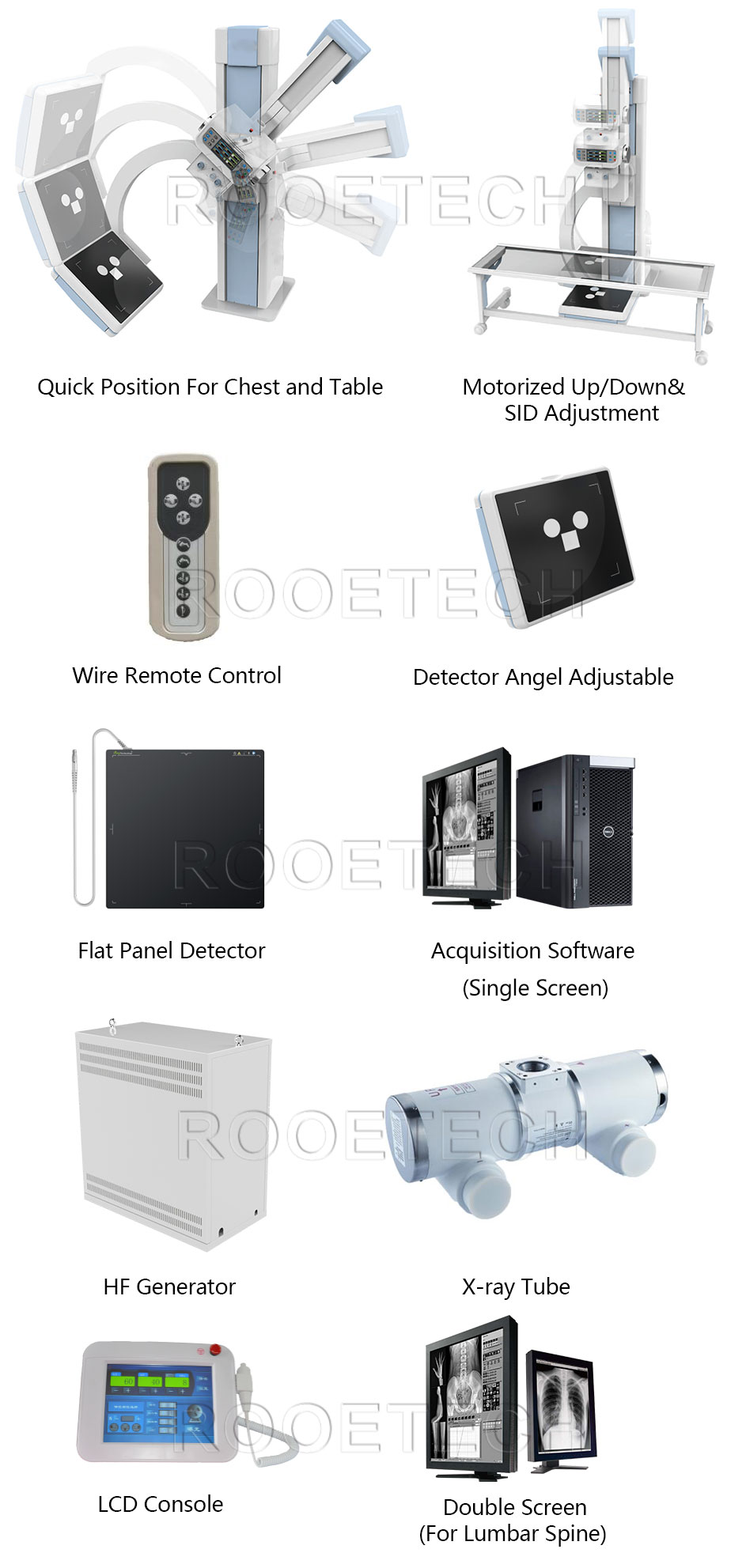

Digital Radiography Equipment DR Imaging Fluoroscopy Equipment Features:
1. DR - direct digital radiography for orthopedics, surgery and thorax diagnostic.
2. Electric control multi-angle, mA, kV, to meet the whole body position imaging.
3. Compared with film technology, digital X-ray images complete diagnosis in less time by eliminating all working steps of development.
4. By the use of the scanning-method your patients are exposed to a much lower radiation dose compared to conventional X-ray systems.
5. Fast exposure provides the best images, which can be scaled and edited.
6. By the tiltable exposure system it saves space and it`s suited very well for exposures of the standing, seated or recumbent patient.
7. For the treatment of the lying patient, different examination tables are available .

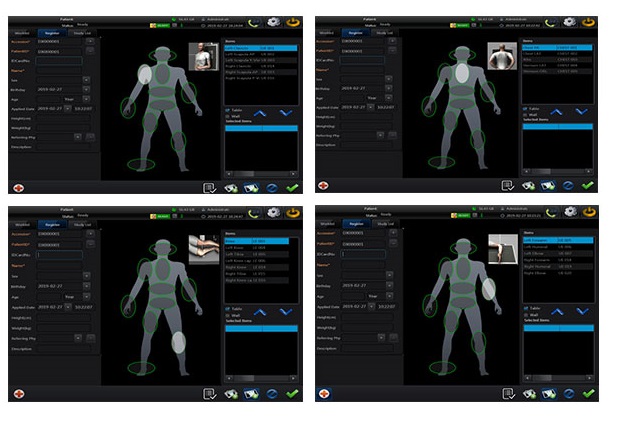

8. Integrated PC system, which can exchange data and image information quickly and improve the efficiency of surgical workflow.
9. Both U-arms offer a wide range of vertical and SID strokes, perfect for head-to-toe comprehensive imaging.
10. High power, more penetrating force, can deal with obese patients.

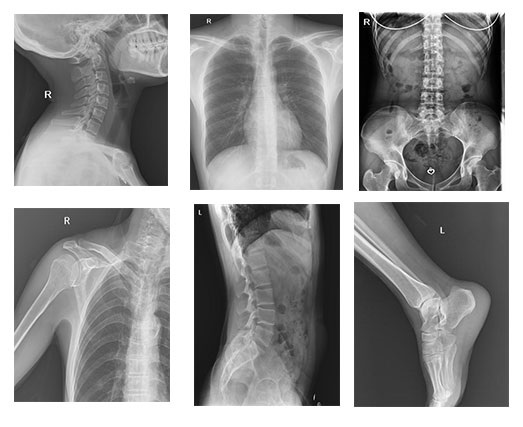

Imaging Picture:
Model | PLD7400-50DR-U | PLD7400-65DR-U | |
X-ray Generator(include console) | Output Power | 50KW | 65KW |
Power Voltage | 380V±38V | ||
kV range | 40~150kV | ||
mA range | 10~630mA | 10~800mA | |
mAs range | 0.1 ~630mAs | ||
Exposure time | 0.002~6.3S | / | |
Loading time | / | 2~10000mS | |
X-ray Tube | Small focus | 0.6 | |
Large focus | 1.2 | ||
Anode speed | / | 9700r/min | |
Radiographic Table | Top Table Size | 2020mmX690mmX680mm | |
Load-bearing | Less than 200kg | ||
Movement | Wheels | ||
DR Machine Frame | Up&Down Moving Range | 700mm ~ 1700mm | |
Rotating Range | 0°~ 105° | ||
SID | 1000mm ~ 1800mm |
