With high precision digital beam forming and Doppler ultrasonic imaging technology.Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accruacy and analysis efficiency.

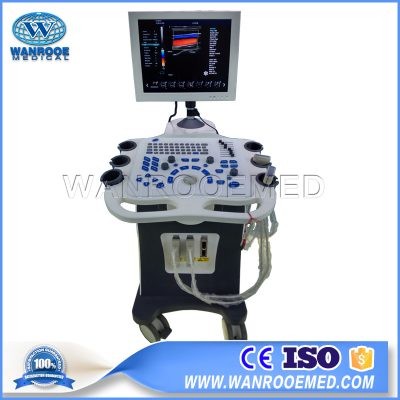

USC80 Digital Diagnosis Trolly 128 Element Color Doppler System Ultrasound Scanner Features:
This USC80 upgrade can be equipped with a phased array probe for the heart.
1.17inch LED display
2.Windows operation platform(Win7)
3.Three probe connectors
4.Rich clinical measurement software
5.Element:128
6.PW
7.Support OB report print
8.System Language:Chinese,English,Spanish,French,Russian,Arabic,Vietnamese,Portuguese,Indonesian,German,Persian and Thai

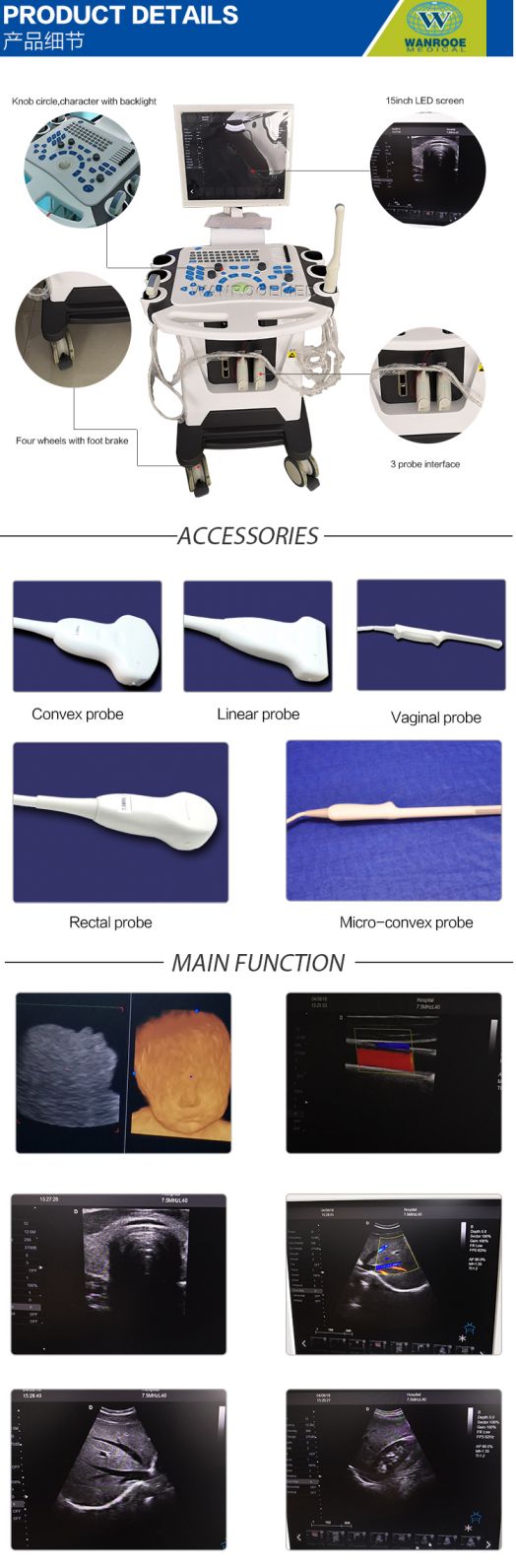

Probe frequency range:
3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz
7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
6.5Mhz micro-convex probe(R11/R15/R20):2, 3, 3.5, 4, 5.5, 6.5, 7.5, 10Mhz
Display | 17 inch LED medical display |
Probe connector | 3 active |
Operation interface | English (more languages as option) |
Display mode | B、B+B、4B、B+M、M、C、PW、CW、B/C、B/C/PW、B/PW |
Focus | 4 segments |
Body mark | ≥57 |
Image processing | Up/Down, Left/Right, Angular variation, Reverse |
Measurement | Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed. |
Application | Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight. |
Character display | Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing) |
Cine loop | ≥ 600 frames, continuous playback or view one by one. |
Storage | Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device |
Gray scale | 256 levels |
Puncture guide | Available |
Gravel positioning | Available |
Dynamic range | 0-270dB |
TGC control | 8 segments |
Pre-processing | Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on. |
Post-processing | Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on. |
Blind zone | ≤4mm |
Max display depth | 320mm |
Geometric accuracy | horizontal ≤ 5%, vertical ≤ 5% |
Resolution | lateral ≤ 2mm, axial ≤ 1mm |
External interface | HDMI, USB, DICOM 3.0 |
Display magnification | 16 kinds |
Frame rate | 5-1016fps |
Scanning range | 5% - 100% |
Gain adjustment | Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15 |
Image optimization | 6 level adjustable |
Smoothing | 8 level adjustable |
Edge enhancement | 8 level adjustable |
PRF | 16 level adjustable |
Gray scale curve | 16 level adjustable |
Acoustical power | 15 level adjustable |
Hard Disc Storage | 120G SSD |
