Horizontal autoclave, which adopted the way of gravity exchange to releaseing the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilzation. This unit ideal equipment for clinics, scientific research institutes and other organizations to sterlize surgical instruments,fabric glasss,culture medica etc.

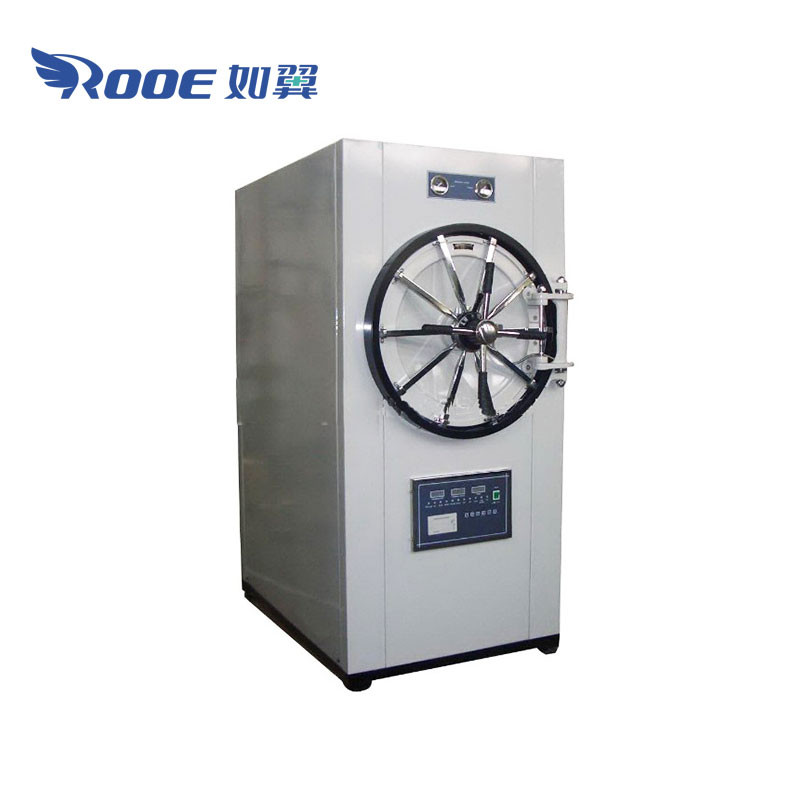

Horizontal High Pressure Steam Sterilizer Front Loading Lab Autoclave Features:
1.Sterilizing course automatic sterilization controlled,easy to operate.
2.With drying function,suitable dressing drying.
3.With over-temperature,over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
| Technical Data Model | WS-150YDB | WS-200YDB | WS-280YDB |
| Sterilizing chamber volume | 150L(φ440*1000mm) | 200L(φ515*1000mm) | 280L(φ600*1000mm) |
| working pressure | 0.22 MPa | ||
| working temperature | 134℃ | ||
| Adjustment of temperature | 40℃- 134℃ | ||
| Time of sterilization | 0-99 min | ||
| Time of drying | 0-99 min | ||
| Heat average | ≤±2℃ | ||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Dimension | 1400*650*1600 | 1400*750*1700 | 1520*910*1900 |
| Transport dimension | 1560*820*1820 | 1560*910*1880 | 1680*1080*2100 |
| G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
