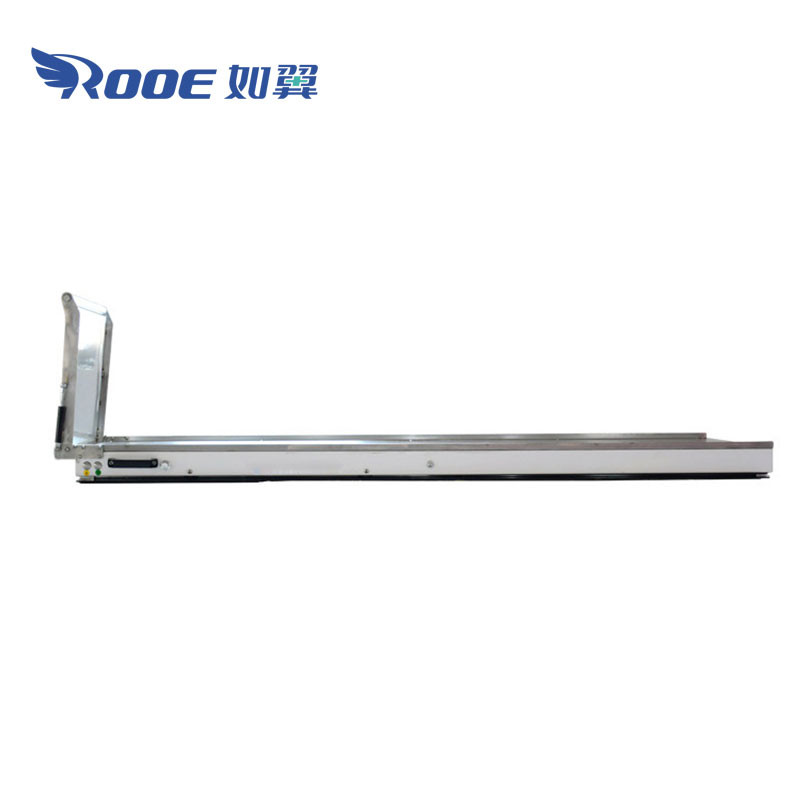

The stretcher base is suitable for ambulance car, it is designed for ambulance stretcher up and down conveniently.The flap can be turned up and down by electric control.
Electric Ambulance Ramp Stretcher Support Platform Lift Features：
1. Suitable for ambulance car with higher chassis, suitable for cars with chassis below 1.2m.
2. Designed for stretchers loading and unloading conveniently.
3. Composed of Stainless steel and Aluminum alloymaterials.
4. Can slide backward on guide rail which is convenient for the stretcher loading&unloading.
5. Use ambulance power supply, forward leaning by electric pusher.
Optional: EA-D8 Plus with manual left/right sliding function: 30cm
Model | EA-D8 |
Material | Stainless steel&Aluminum alloy |
Feature | Basic type for ambulance |
Electric drive pusher | |
Equip with guide rail | |
Power supply | DC 24V |
Dimension | 204×62×43.5cm |
Capacity | Max.230kg |
N.W. | 115kg |
Packing | 250×68×20cm, 1pc/Plywood case |
G.W. | 130kg |
Optional | |
manual left/right sliding | 30cm |
