Video laryngoscopes enable clinicians to successfully intubate patients on the first attempt, while minimizing the chance of injury that may occur during surgery by better viewing the glottic structure.
Children/Adult Portable Laryngoscope Anesthesia With Camera Features:
1. Compact and portable body;
2. High sensitivity capacitive touch screen, multi angle and flexible adjustment;
3. Full digital HD imaging technology, integrated video recording and storage in one design;
4. With its own physical heating and super anti fog function, it helps the image to be clearly visible;
5. Lithium battery has super long endurance and wireless charging function;
6. Reusable handle, ergonomic design, easy to operate;
7. Ready to use, simple and fast installation, necessary tools for first aid in and out of the hospital;
8. The angle of the peep film conforms to the anatomical structure of the human body, the glottis is clearly exposed, and it is easier to safely intubate.
Monitor | |||
Monitor | 3.5-inch LCD | ||
Rotation angle | Up and down≥120°, left and right≥270。 | ||
Storage capacity | 16g, can shoot more than 100000 copies, or record more than 20 hours(can be expanded to 256G ) | ||
Standby time | ≥4 hours | ||
Charging time | ≤3.5 hours | ||
Peep handle | |||
Field angle | ≥60° | ||
Light source | LED Cold light source | ||
Peep Film | |||

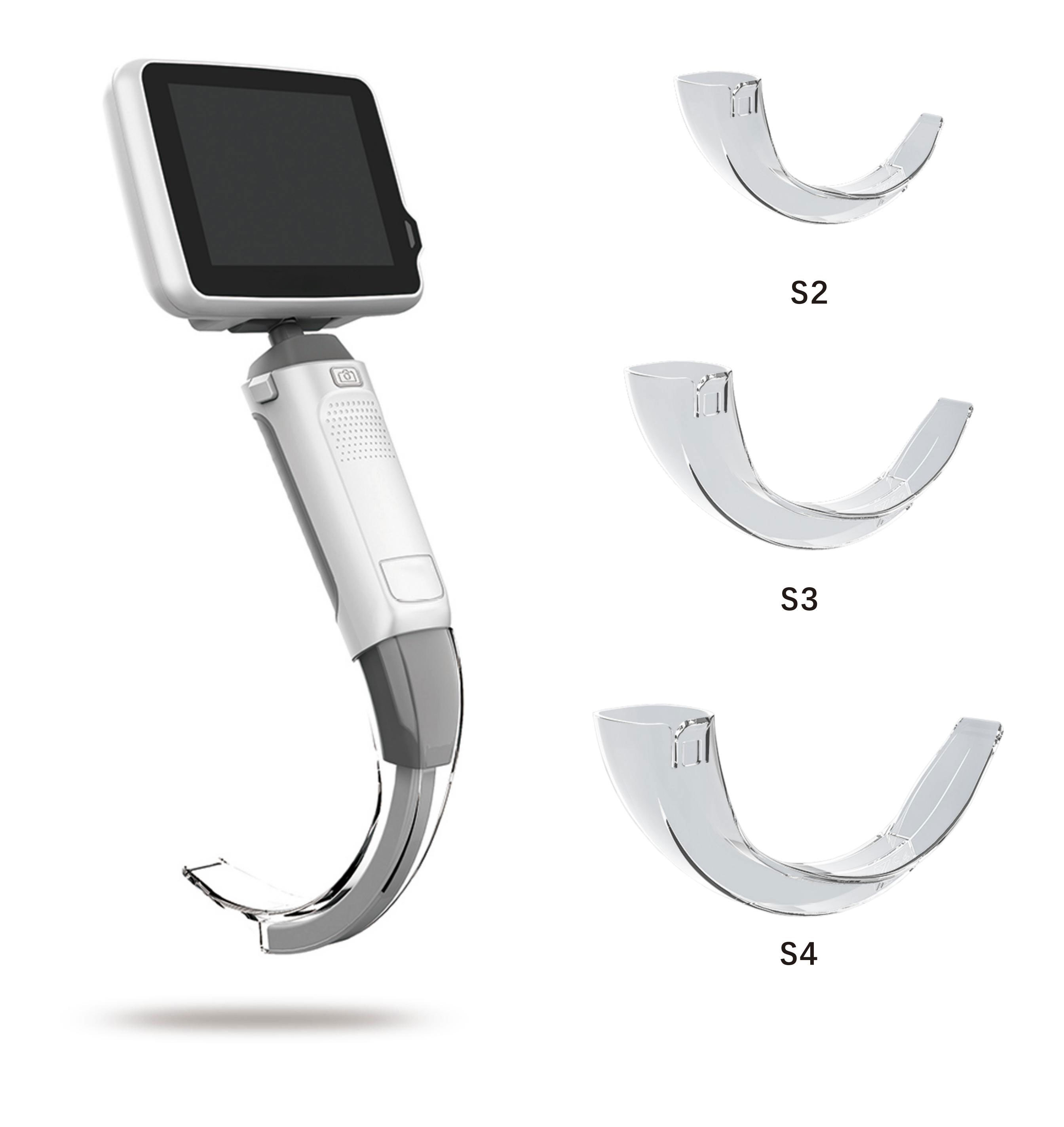

Model | S2 | S3 | S4 |
Scope of application | Children | Adult | Adult Large |
Applicable inner diameter range of endotracheal intubation | 3.0-6.0mm | 6.0-9.0mm | Over 6.0mm |
