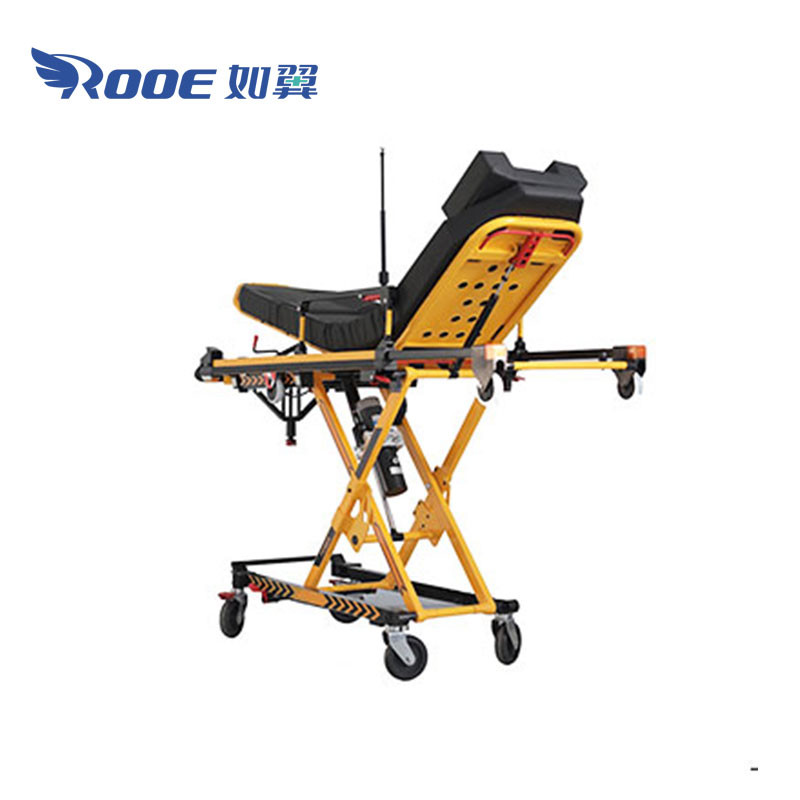

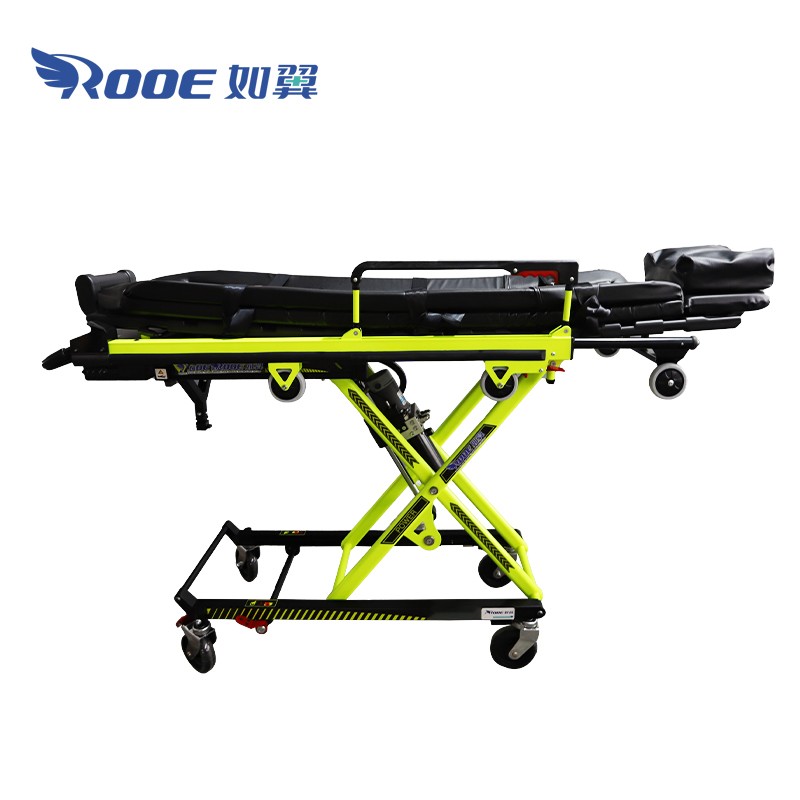

X-frame undercarriage is easily raised when loading. When unloading, the safety U-bar will hold the stretcher on ambulance until the operator release it. Mainly used for ambulance, hospitals, emergency centers.
Motorized Stretcher Collapsible Gurney Features:
1. Two sets of charging systems, in-vehicle charging and external power supply charging.
2. Electric boost, reduce the manual strength of the operator.
3. The hydraulic lifting system enables the stretcher.
4. Damper to provide security and comfort.

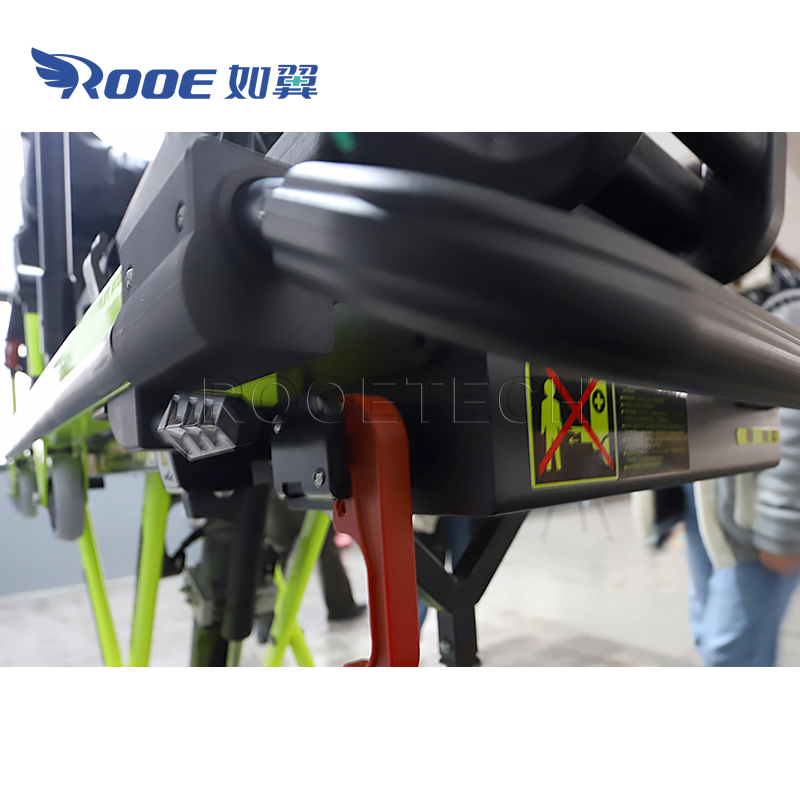

5. The pressure release system can be used for manual adjustment when there is no power.

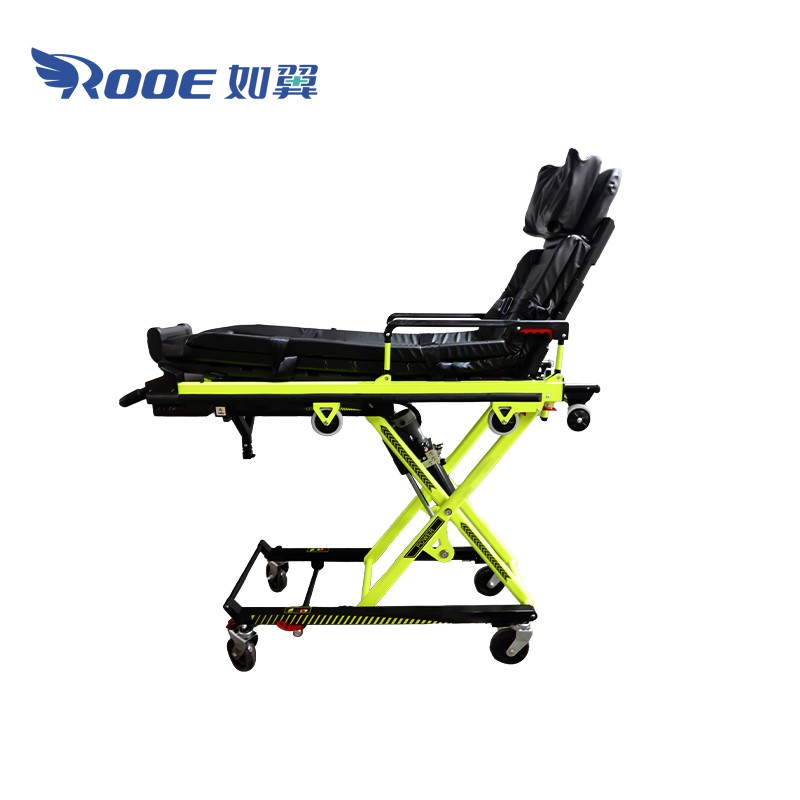

6. The back can be adjusted to 90 degrees for easy positioning.

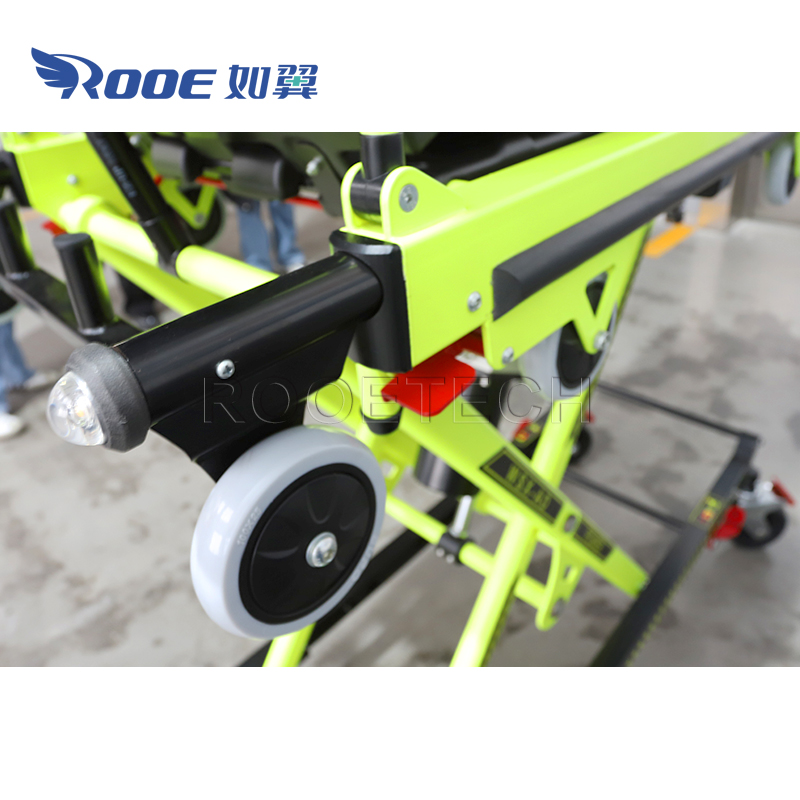

7. The fixed four casters can be adjusted to a universal cassette to adapt to various terrain.
8. You can zoom in and shortened to easily pass the navigation area. Score range: 0 ~ 40cm.
9. Touch the stretcher with the sensor touch button. It can be adjusted in a few seconds.
10. High-density foam film material for more comfortable operation.
11. The folding guardrail provides full operation in a limited space for the convenience of the user.

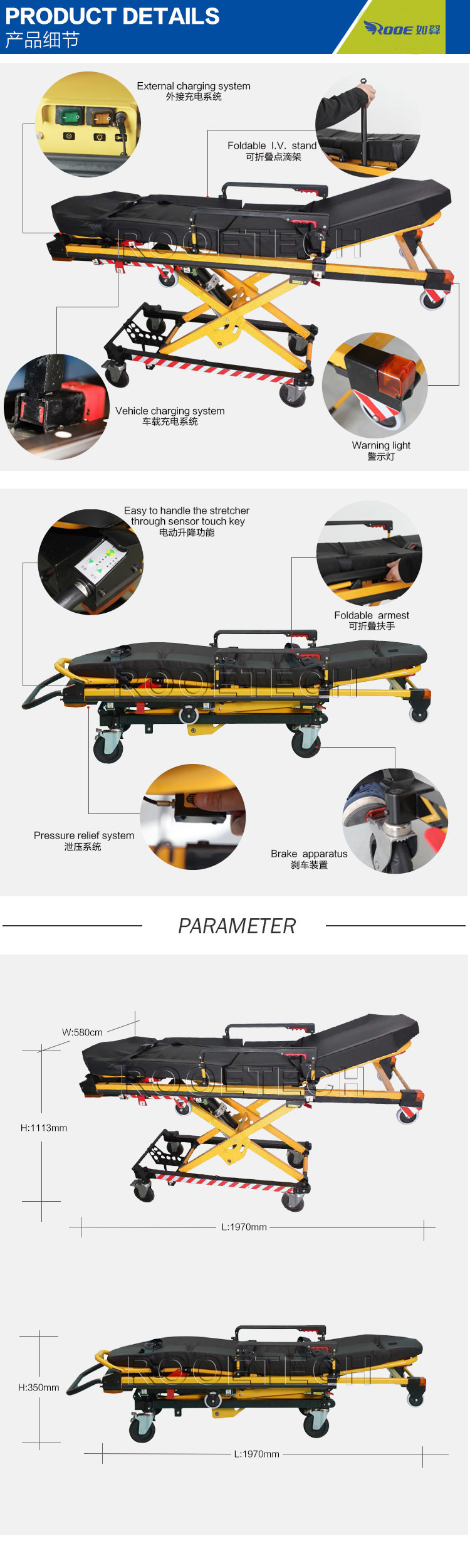

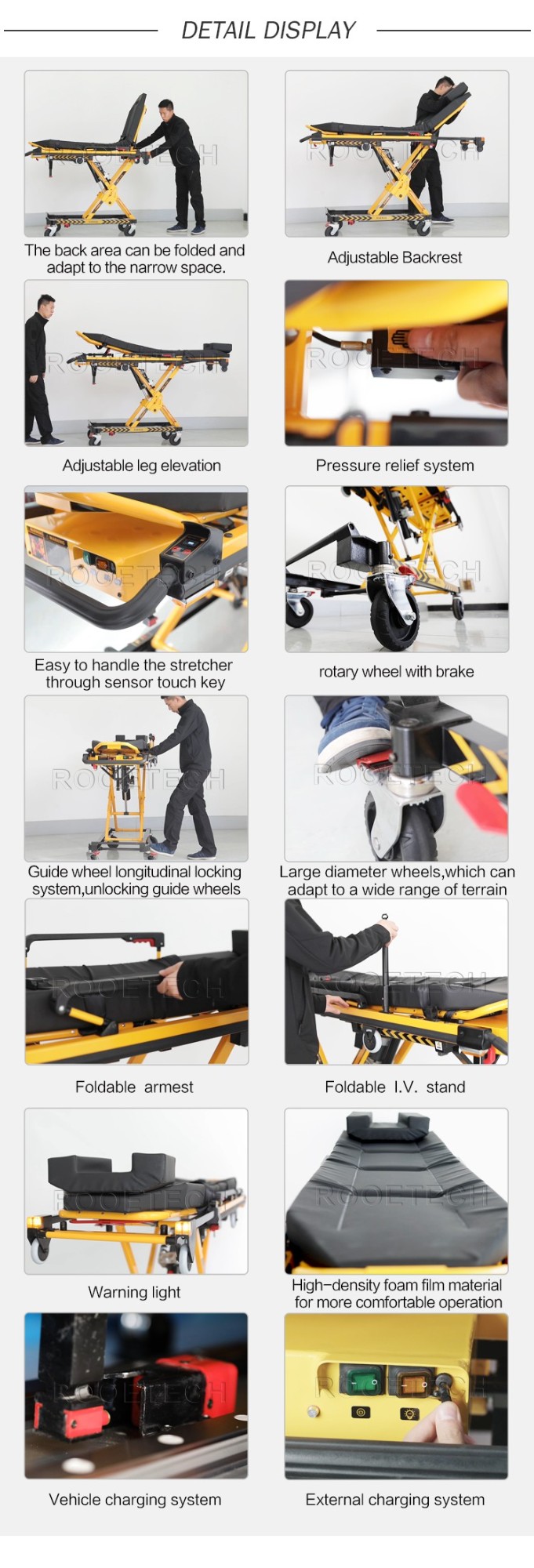

Accessories:
1. Brake apparatus
2. Foldable armest
3. Foldable I.V. stand
4. Warning light
5. Vehicle charging system
6. External charging system
7. Pressure relief system
8. Electric lifting function
Model | High position | Low position | Maximum Angle of the Back | Size of wheel(diameter) | Load Bearing | N.W. | G.W. | Packing Size(1pc/CTN) |
EA-3AD | 197x58x111.3cm | 197x58x35cm | 0-85 degree | 15cm | 160kg | 74kg | 81kg | 201×61×38cm |
