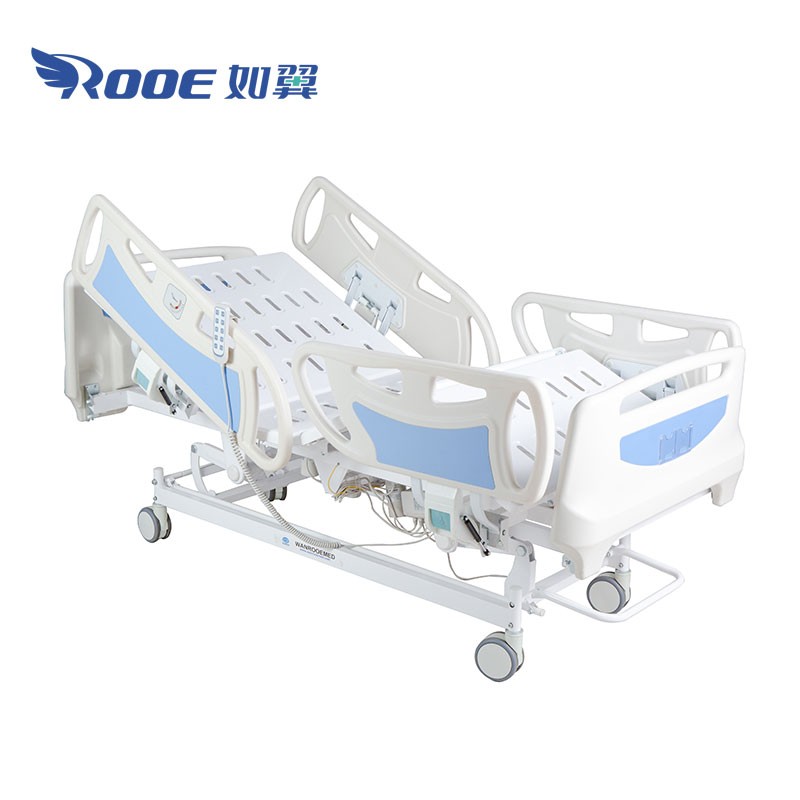

BAE502 Basic Advanced Electrical Medical Bed Motorized Icu Bed With Soft Connection
BAE502 Basic Advanced Electrical Medical Bed Motorized Icu Bed With Soft Connection

BAE502 Basic Advanced Electrical Medical Bed Motorized Icu Bed With Soft Connection BAE502 Basic Advanced Electrical Medical Bed Motorized Icu Bed With Soft Connection

Cold-rolled steel plate and tube and coated by electrostatic spray after twice phospatization. The quality attains national standard. Wholly molded cold steel sleeping plateform with soft connection device.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Electrical Medical Bed Motorized Icu Bed With Soft Connection Description:

electrical medical bed is an ideal bed for ICU patients. The bed offers adjustable head, foot and height functions. advanced hospital bed also offers tredelemberg and reverse tredelemberg features.

The motorized hospital bed used soft connectors to connect the back plate to the leg plate, so that the bed patient would not feel hard while lying on the bed. The motorized icu bed was a high-end hospital bed driven by a linear motor. Through the control of the remote control, you can adjust the head and foot posture; You can also adjust the overall height of the bed.

The medical bed manufacturer is ideal for high-end nursing homes and hospital intensive care units.

electrical medical bed, advanced hospital bed, motorized hospital bed, motorized icu bed, medical bed manufacturer

Electrical Medical Bed Motorized Icu Bed With Soft Connection Features:

1. The bed board is made of perforated steel, surface epoxy powder coated and baked finish.

2. Four-part bed board with optional ABS soft connection, soft joints make the patient feel more comfortable.

3. The guardrail can move with the bed to effectively protect patients and reduce the risk of falling. Optional long guardrail

4. Headboard/footboard can be quickly installed and removed, which is convenient for nursing staff to operate when treatment or other needs are needed.

5. Silent medical double-sided casters with central brake control, 125mm diameter.

6. Have electric remote control to control body position. Hi-Lo, Trendlenber position, reverse Trendlenber position, back lifting, leg lifting, back leg linkage can be achieved.

7. There is a CPR button on the side of the bed to quickly lower the bed to a horizontal position in case of emergency.

8. Bring spare batteries to effectively cope with emergencies.

electrical medical bed, advanced hospital bed, motorized hospital bed, motorized icu bed, medical bed manufacturer

Specification
ModelBAE502 Basic
Measure
Length:2200mm
Width:1060mm
Bed Base Height Range
Maximum Height700mm
Minimum Height450mm
Technical Features
Backrest max upward angle0-75°
Footrest max upward angle:0-40°
Trebdelenburg0°~≥12°
Anti-Trebdelenburg0°~≥12°
Loading Capacity250kg
Power supply220VAC or 110VAC   Frequency: 50-60HZ
Power Plug:EU type standard if other type, confirm each order
OptionalExtended bed frame
Matress
IV Pole
Weighing system
X-ray bed board
Oxygen cylinder holder


×
