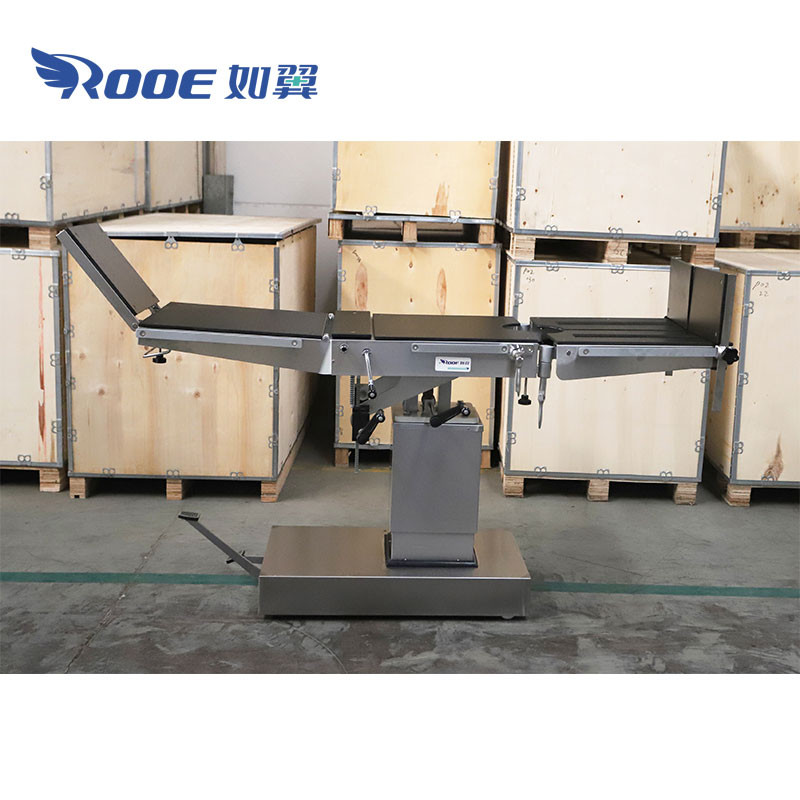

This manual hydraulic operating table has different positions to perform operations more easily, even when there is no power supply, you can operate without relying on electricity.Operating tables are used in various types of procedures such as cardiothoracic, orthopedic, bariatric, robotic, urologic, and more.
Manual Hydraulic Operating Table For General Surgery Features：
General features:
1. Table top is divided into 4 parts: headboard, backboard, hipboard and legboard.
2.Manual cranks for adjusting the position are fitted on the sides.
3. Soft mattress for pain relief.
Technical features:
1. Manual hydraulic drive operating table to complete multiple types of positioning.
2. Use foot-operated oil pump to control the lifting and lowering.

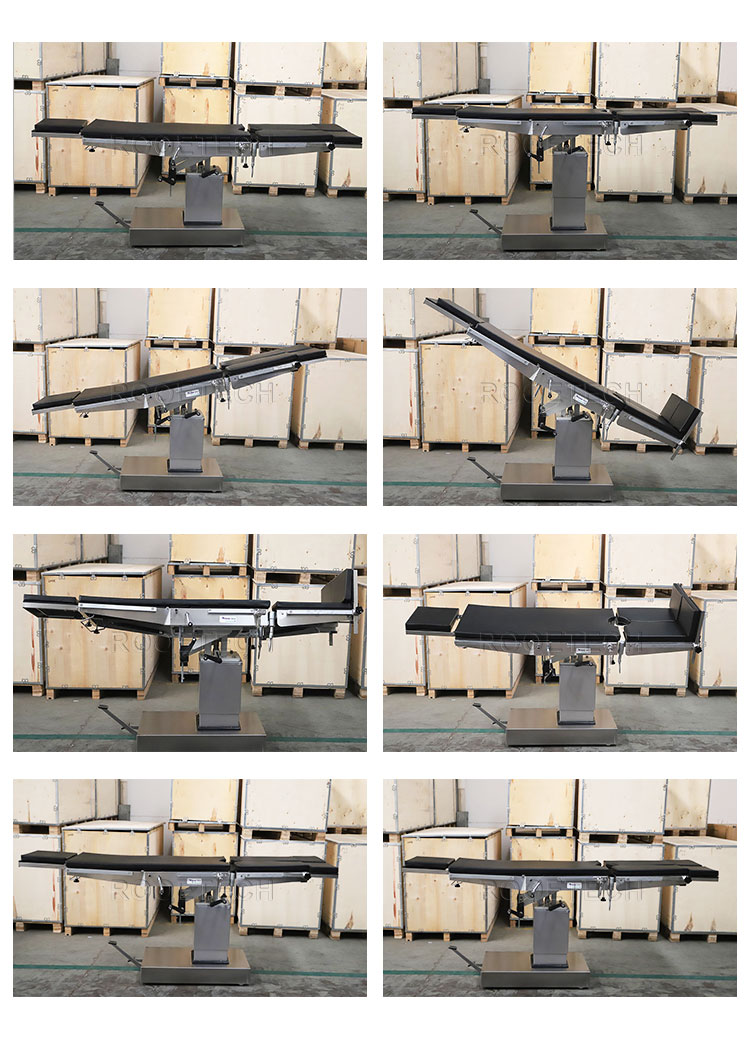

3. Manual crank is able to complete Hi-Lo position, Trendelenburg and anti-Trendelenburg position body position, left and right tilt, longitudinal translation, lumbar bridge lifting.
4. The headboard, backboard and legboard are lifted and lowered by gas spring control.
5. The leg board can be lowered and unfolded vertically.
6. Foot brake system for easy movement of the operating table.
| Main Parameter | |
| Model | AOT3001BA Plus |
| Operating Table Size | |
| Length | 2050mm |
| Width | 500mm |
| Table Overall Adjustable Range | |
| Min. height of table top from floor | 770mm |
| Max. height of table top from floor | 1020mm |
| Tendelenburg | ≥25º |
| Reversed tendelenburg | ≥20º |
| Lateral tilt | ≥18º |
| Table Section Adjustment Range | |
| Head section raised from the horizontal | ≥45º |
| Head section lowered from the horizontal | ≥90º |
| Kidney bridge elevated | ≥120mm |
| Back section raised from the horizontal | ≥60º |
| Back section lowered from the horizontal | ≥15º |
| Leg section raised from the horizontal | Without |
| Leg section lowered from the horizontal | ≥90º |
| Foot board can be horizontal or vertical with leg board. | |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Shoulder Rest: 1pair | |
| Foot plate: 1 pair | |
| Cushion: 1 set | |
