Designed to provide veterinarians with portability and ease of imaging through its advanced features and user-friendly interface. Easy to carry, easy to handle and lightweight, easy to carry and use in a variety of clinical Settings.Meet the growing diagnostic needs for prevention and treatment with digital medical, dental and veterinary imaging solutions.
Digital X-ray Machine Leg/Hand/Chest/abdominal X Ray Features：

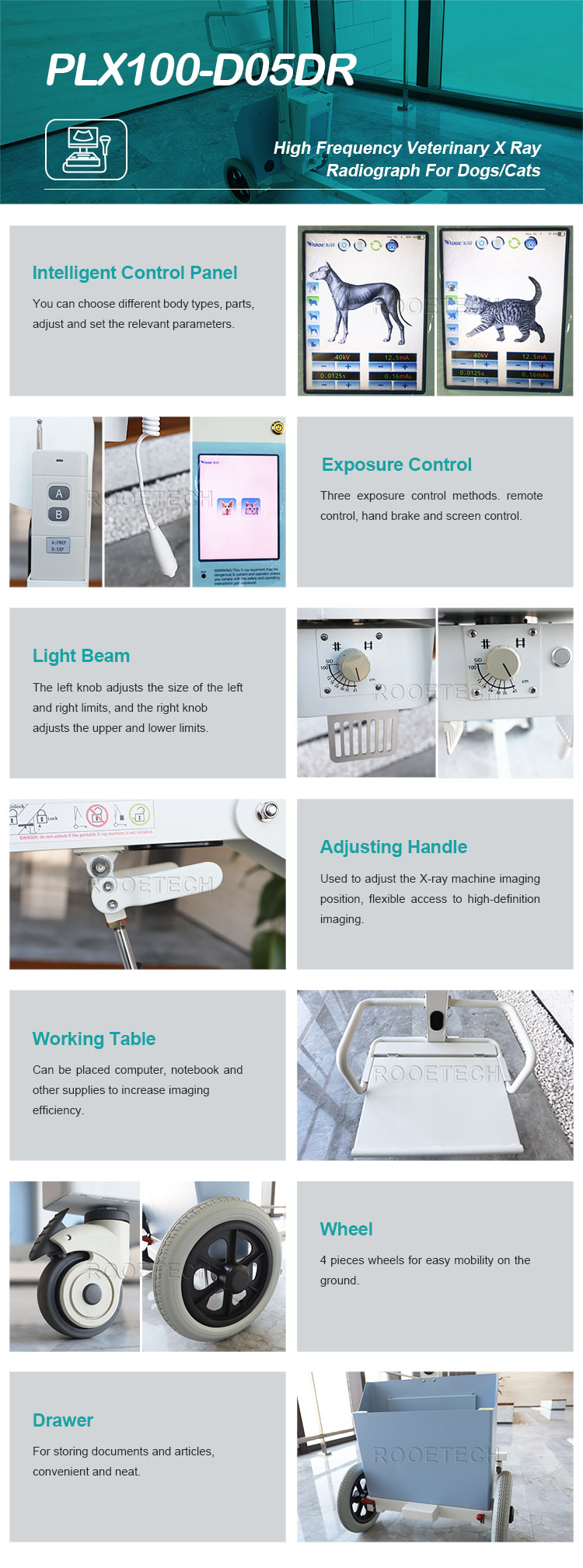

1. Touch screen interface with APR setting, easy to operate.
2. 8kW high power output, covering all kinds of animal X-ray phase formation
3. Three exposure control methods. remote control, hand brake and screen control.
4. Complex image processing facilitates more accurate diagnosis
5. Optional one-piece suitcase for easy transportation and carrying.
6. Designed to provide maximum mobility and flexibility for animal X-ray examination.
| Model | PLX100-D05DR | |
| Voltage | AC220V ± 22V | |
| Generator | Output Power | 8kW（Support customization） |
| kV Range | 40～110kV | |
| mA Range | 20～100mA | |
| mAs Range | 0.2-200mAs | |
| Working Frequency | ≥40kHz | |
| Exposure time | 0.01S～4S | |
| X-ray tube | Anode heat storage | 56KHU |
| Focus | 1.8mm | |
| Inherent filtration | 1mm Al/75Kv | |
| Scintillator | CSI | |
| Wire Flat Panel Detector | Pixel Matrix | 3328*3328 |
| Pixel Pitch | 127um | |
| A/D Conversion | 14bit | |
| Dimension | 15.6inch | |
| All-in-one PC | Memory | 8G |
| Disk Capacity | 512G | |
| Resolution | 1920*1080 | |
| Net Weight | 70KGS | |
| Laptop | CPU | Intel Core i5 |
| Optional | Memory capacity | 4GB |
| Mobile Machine Frame | Max.Height | 200cm |
| Width | 66cm | |
| SID | 50~200cm | |
