An operating table is a table on which a patient lies during a surgical procedure. Sometimes known as a surgical table or operation table, operating tables are typically used within an operating room or surgical suite of a hospital, ambulatory surgery center, or other healthcare facilities where surgeries are performed.

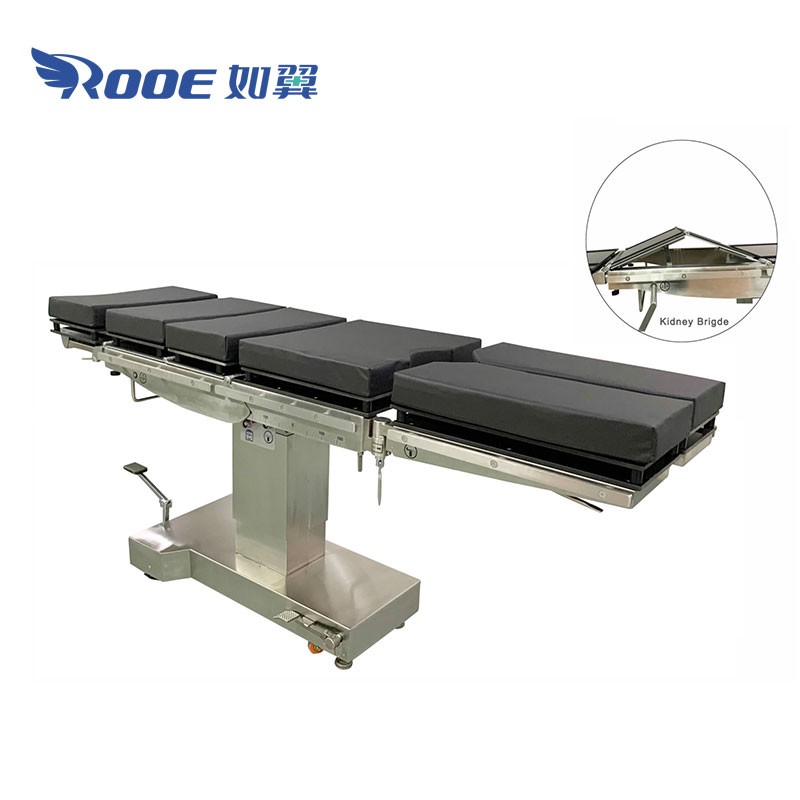

Operating Room Manual Surgical Bed Medical Imaging Table Features：
General features:
1. The cover all adopted premium 304 stainless steel,the main body used cast aluminum,anti-rust and corrosion the tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.
2. "T- shape"base design makes enough free space for the doctors.
3. The table is made of high transparent material, which can be used with C-arm or X-ray film box.
4. Two-section backplane design can realize kidney bridge function.
5. The foot space is reserved for the base, which can work in close distance on the operating table and ensure stability.
Technical Features:
1. Manual hydraulic system controls height adjustment, forward and backward tilt, longitudinal movement and left/right tilt.
2. The front page adopts double throttle spring adjustment design, which can be quickly disassembled.
3. The backplane and leg plate adopt air spring adjustment design, leg plate can be quickly disassembled.
4. 320mm horizontal sliding suitable for X- ray and C -arm.
5. Mechanical hydraulic lifting system can easily control the overall lifting of the operating table.
| Main Parameter | |
| Model | AOT700M |
| Operating Table Size | |
| Length | ≥2050mm |
| Width | 520mm |
| Table Overall Adjustable Range | |
| Min. height of table top from floor | ≤690mm |
| Max. height of table top from floor | 970mm |
| Trendelenburg | ≥32° |
| Reversed Trendelenburg | ≥32° |
| Lateral tilt | ≥22º |
| Longitudinal sliding | ≥320mm |

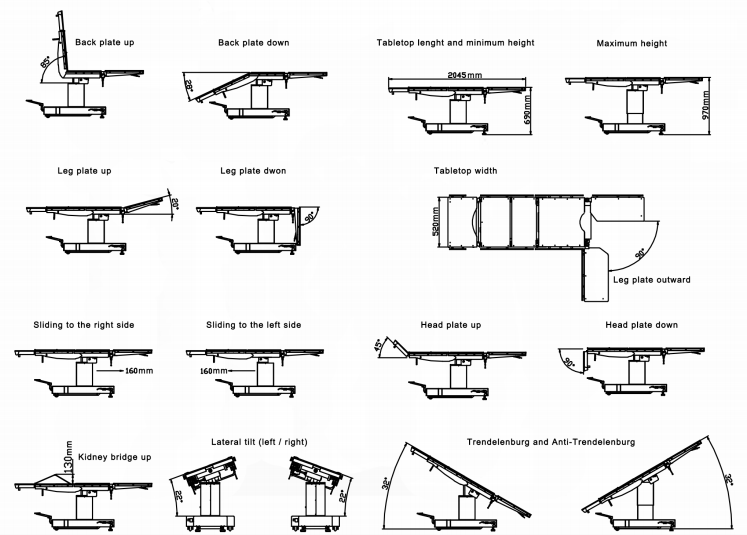

| Table Section Adjustment Range | |
| Head section raised from the horizontal | ≥45º |
| Head section lowered from the horizontal | ≥90º |
| Kidney bridge elevated | 130mm |
| Back section raised from the horizontal | ≥85º |
| Back section lowered from the horizontal | ≥28º |
| Leg section raised from the horizontal | ≥20º |
| Leg section lowered from the horizontal | ≥90º |
| Foot board can be horizontal or vertical with leg board. | |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Shoulder Rest: 1pair | |
| Foot plate: 1 pair | |
| Cushion: 1 set | |
