AOT8801A PRO M Metal Operating Table Surgical Bed With High Position 1150m AOT8801A PRO M Metal Operating Table Surgical Bed With High Position 1150m

The metal operating table is favored for its versatile adjustment and comprehensive safety safeguards, providing doctors with an efficient and safe operating platform while providing patients with a comfortable and reliable surgical experience

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

Metal Operating Table Surgical Bed With High Position 1150m Features:

General Features:

1. The operating table consists of four parts: headboard, backboard, hipboard and legboard.

2. Built-in lumbar bridge, suitable for lumbar spine, spine, kidney and gallbladder surgery.

3. 450kg load capacity for highest safety and stability.



Electrical Features:

1.With battery can cope with emergency power failure.

2. Hydraulic pump auxiliary operation.



Technical Features:

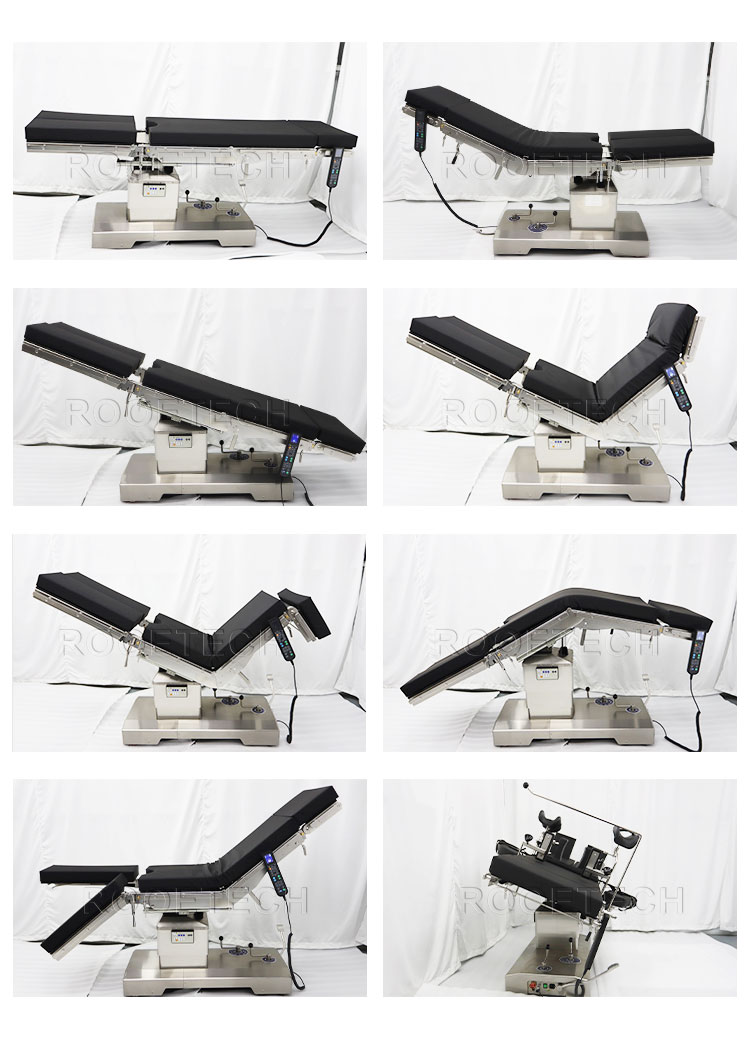

1. Hi-Lo position, longitudinal movement, left-right tilt, Tendelenburgand reserve-Tendelenburg position, flexion position and anti-flexion position, back lifting and lowering, one-touch reset, and head-tail interchange function are all motorised control.

2. Head board, back board, leg board up and down folding are controlled by gas spring.

3. The backboard raises 80° and lowers 40°. The headboard can be lifted up by 60° and lowered by 80°.

4. The leg board can be lifted up, folded down and unfolded vertically.

5. Longitudinal translation 350mm.

6. Two control modes: electric remote control and column controller.

7. Extra high table height (1150mm) can meet the needs of surgery in these special cases, such as obese patients.


Main Parameter
ModelAOT8801A Pro M
Operating Table Size
Length2080mm
Width520mm
Height Adjustable Range
Min. height of table top from floor650mm
Max. height of table top from floor1070~1150mm
Table Overall Adjustable Range
Reversed tendelenburg≥30°
Tendelenburg≥30°
Lateral tilt≥20°
Backward and forward movements0-350mm
Table Section Adjustment Range
Head section raised from the horizontal≥60º
Head section lowered from the horizontal≥80º
Kidney bridge elevated0-120mm
Back section raised from the horizontal≥80°
Back section lowered from the horizontal≥40°
Leg section raised from the horizontal≥15º
Leg section lowered from the horizontal≥90º
Leg section opened≥90°
Foot board can be horizontal or vertical with leg board.
Power SupplyAC 220V±10%,50Hz
Basic Accessories:Anaesthetic screen: 1 set
Arm support: 1 pair
Body support: 1 pair
leg support: 1 pair
Cushion: 1 set



×
