The electric operating table helps meet customer requirements and makes this low-cost and reliable table even more attractive. Designed to support patients during all surgical procedures and interventions: general surgery, vascular surgery, endoscopy, neurosurgery, gynecology, urology and orthopaedic surgery.

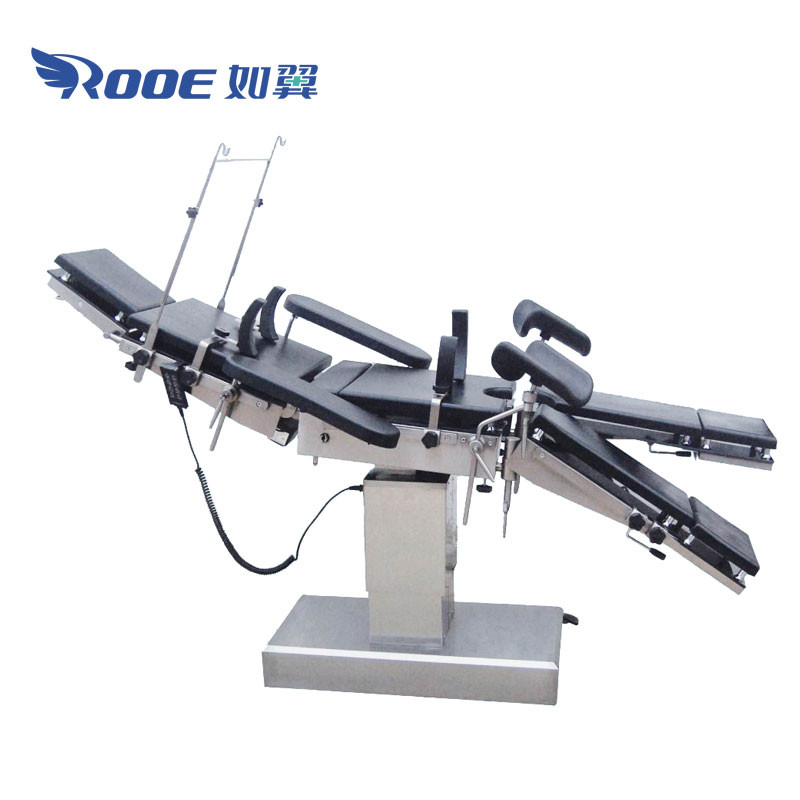

Electric Surgical Table OR Operation Table Description：
These rugged operating tables are suitable for both specialty and general surgery. The electric surgical table is height-adjustable and comes with a wide range of accessories to meet a wide range of clinical needs.
Electric Surgical Table OR Operation Table Features：
General Features:
1. Four-stage structure: head board, back board, hip board, leg board
2. Made of stainless steel with thin but strong lines, it can support patients weighing more than 200 kg.
3. Double layer table, can be placed in the hollow position of the shooting report.
Electrical Characteristics:
1. Use electric control operating table position, with spare batteries.
2. Equipped with electric remote control to remotely control the position of the operating table.
Technical Features:
1. Adjustable overall lifting, Trendelenburg position, anti-Trendelenburg position, left and right tilt
2. The backplane can be lifted up and cannot be lowered.
3. The leg plate is controlled by the gas spring and can be folded down 90° and extended out 90°.
| Main Parameter | |
| Model | AOT8801 Basic |
| Operating Table Size | |
| Length | 2100mm |
| Width | 480mm |
| Height Adjustable Range | |
| Min. height of table top from floor | 750mm |
| Max. height of table top from floor | 1000mm |
| Table Overall Adjustable Range | |
| Reversed tendelenburg | ≥25º |
| Tendelenburg | ≥25º |
| Lateral tilt | ≥15º |
| Backward and forward movements | None |
| Table Section Adjustment Range | |
| Head section raised from the horizontal | ≥45º |
| Head section lowered from the horizontal | ≥90º |
| Kidney bridge elevated | ≥120mm |
| Back section raised from the horizontal | ≥45° |
| Leg section lowered from the horizontal | ≥90º |
| Leg section opened | ≥90º |
| Foot board can be horizontal or vertical with leg board. | |
| Power Supply | AC 220V±10%,50Hz |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Cushion: 1 set | |
