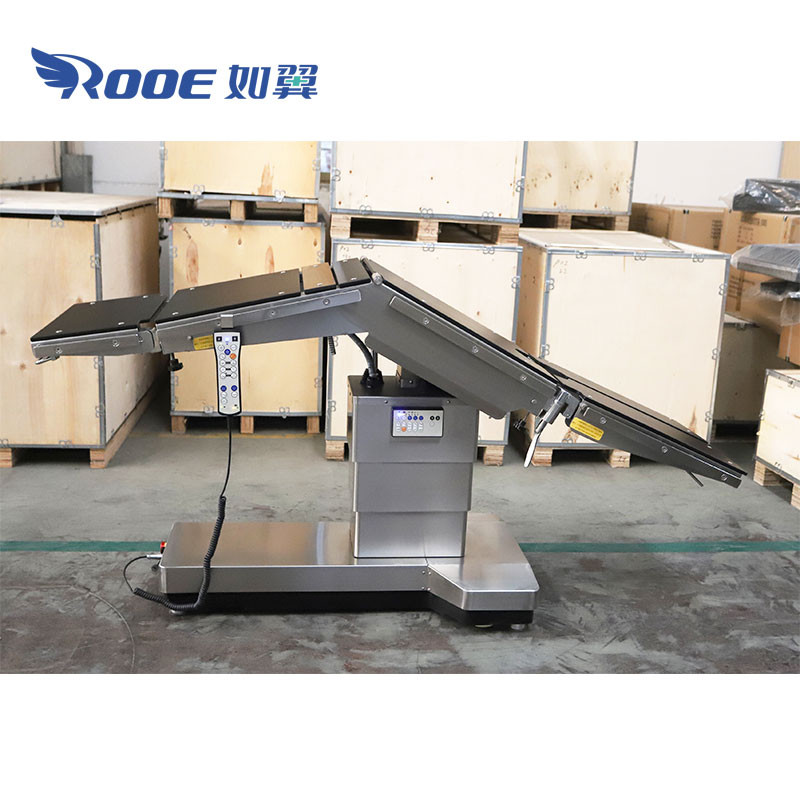

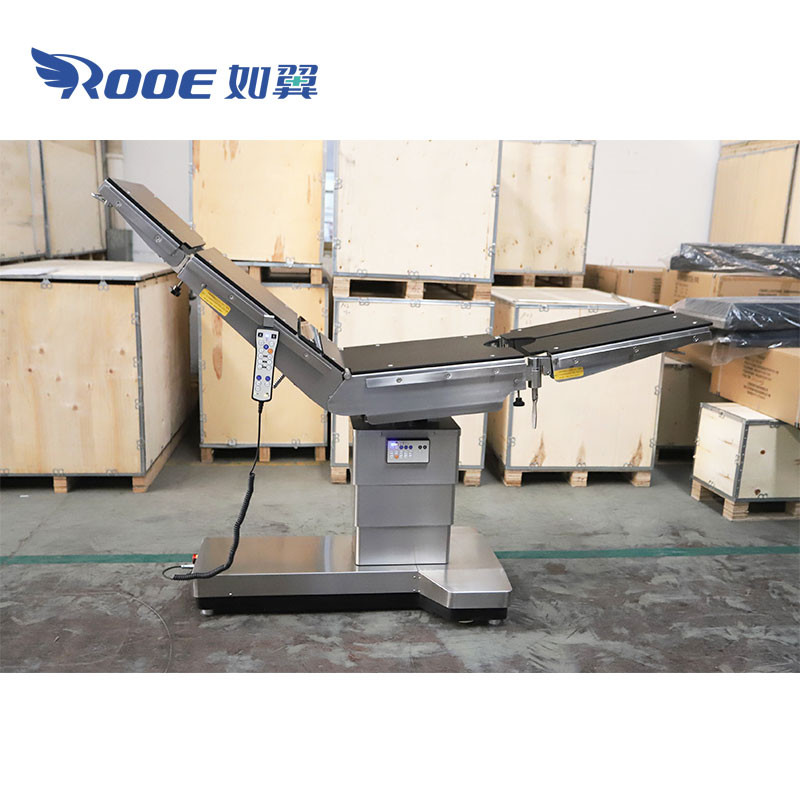

AOT8801A Pro Advanced Orthopedic Fracture Table Operating Room Tables

Advanced Orthopedic Fracture Table Operating Room Tables Features：

General features:

1. The orthopedic fracture table consists of a table top, a table base and supporting parts for the electro-hydraulic control system.

2. Four-section structure, five-section operating table plate: head plate, back plate, kidney lifting plate, hip plate and leg plate.

3. T Base and column cover are made of high quality 304 stainless steel.

4. The table top is equipped with a large number of practical standard accessories to meet different operational requirements and the side rails are flanked by high quality 304 stainless steel. The accessory clamps are removable and easy to use.

5. One-step medical polyurethane moulding process mattress with a seamless, antibacterial and easy-to-clean surface.

6. Built-in lumbar bridge can lift the waist to expose the surgical field and facilitate various position adjustments required for lumbar spine, spine, kidney and gall bladder surgery.

7. castors for easy movement of the operating table, which can be electrically controlled to contract or extend when not in use.

8. 135kg load capacity, with the highest safety and stability.

Electrical characteristics:

1. Electricity is changed to 24V DC by the electronic control system to drive the hydraulic system.

2. In case of failure of the network power supply, temporary power supply can be provided by the internal power supply.

 Technical Features:

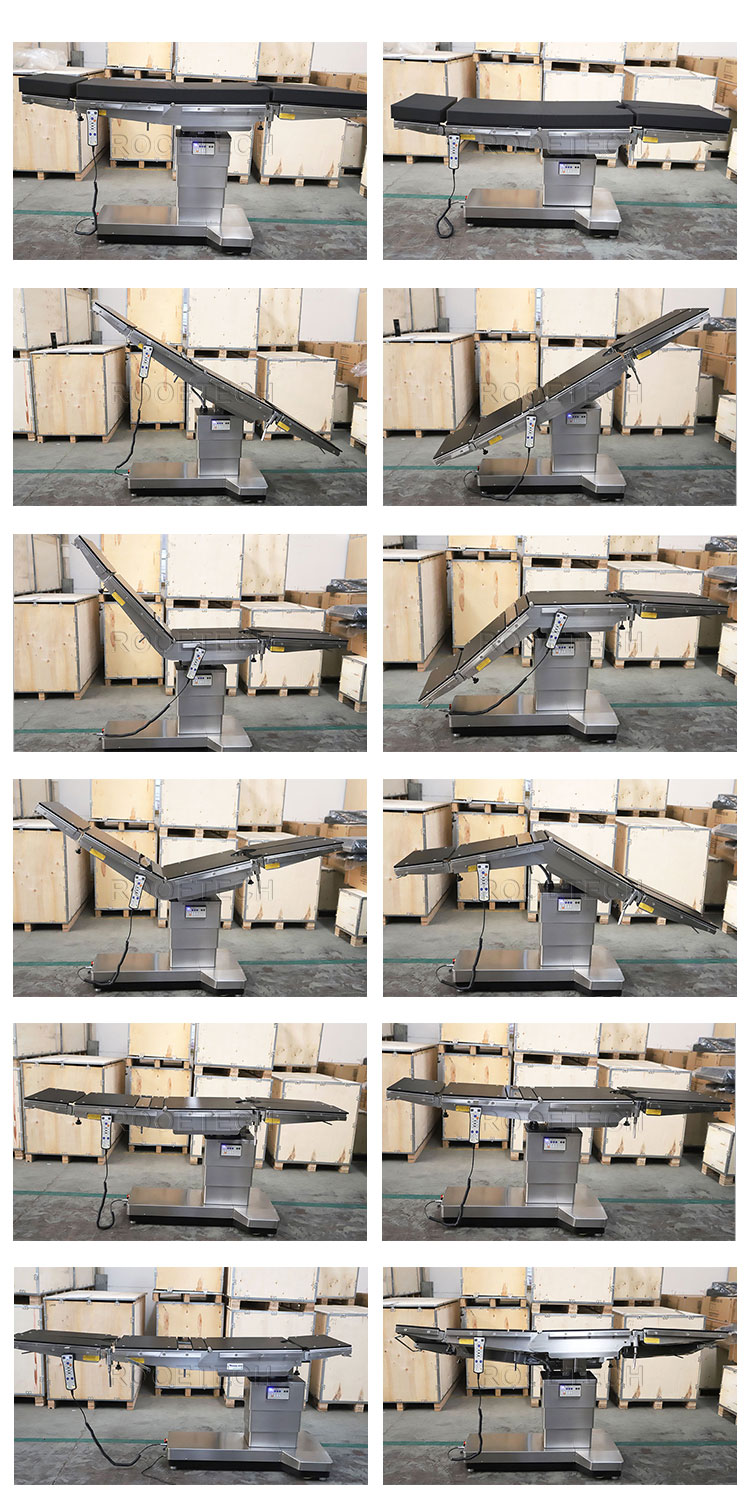

1. Table lifting, back and forth movement, left and right tilting, front and back tilting, back plate up and down folding, table floor braking, one button reset by electro-hydraulic realisation, Button operation.One press to "∧" or "∨" (Flexion and anti-flexion.)

2. The electro-hydraulic system makes the table low noise, high safety and high reliability.

3. The table is widened to 55cm and the T-shaped base gives the doctor more room to move around.

4. The back plate can be lifted and folded down to allow the surgeon to access the surgical site.

5. Vertical translation 300mm, the patient can freely contact the C-arm without repositioning.

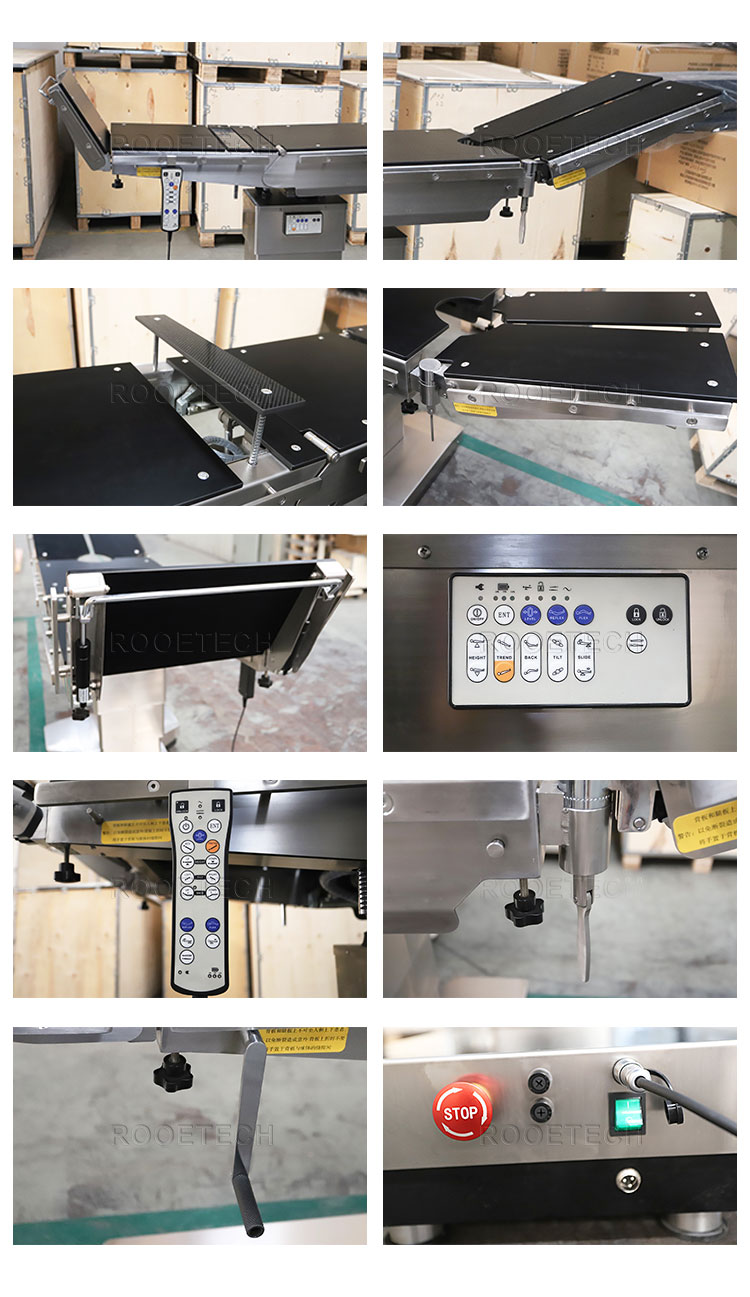

 6. Two control modes: electric remote control and standard supercontrol panel control, push-button operation, safer control.

7. With excellent braking system, the table can be fixed in a very stable position, and can be applied or released by manual switch or the overcontrol panel on the column.

 Scope of application:

Mainly used by medical institutions to carry patients in head, neck, chest, abdomen, perineum, limbs and other surgical, gynaecological, urological, osteopathic and other surgical positions.
