Based on the physiological characteristics of the human eye, the colour temperature of the LED is limited to around 8000K, which is not harsh to the eyes, and even if viewed for a long time, the eyes are not easily fatigued. Medical film viewing light source long life, convenient repair, low repair costs: LED theoretical life span of up to 100,000 hours, much higher than fluorescent lamps and thermal light sources. And the repair is convenient, the repair cost is low. Energy saving: the new light source LED is used, which greatly reduces energy consumption.
Single/Doube/Triple Radiography Led Medical Film Viewer Supplier X Ray Box Description:
Led Medical Film Viewer adopts advanced electronic technology and the latest ultra-high brightness power LED light source, with more than 50,000 hours of working time, high brightness, uniform and stable light, brightness adjustment, no hot, no curling film, suitable for long-term use. The intensity of light source of radiographic view box can be adjusted, which has a good effect on the protection of people's eyes. At the same time, it will not have too much influence on people's eyes. It is suitable for doctors to use for long-term investigation, and the Angle of viewing can be adjusted, so that it can be better observed. The Medical Film Illuminator is the ideal X-ray film viewing light with excellent seismic performance and no fear for general handling and transportation. Radiography film Viewer supplier is widely used in the evaluation of unit radiography negatives for machinery, chemical, aviation, shipbuilding, boiler, power and other units. In general, X-ray box is more suitable for high-intensity and long-term use than traditional ones without causing too much eye impact and eye fatigue to physicians.
Single/Doube/Triple Radiography Led Medical Film Viewer Supplier X Ray Box Features:
Efficient and durable LED light source technology
1. Adopt imported luminous chips, gold wire welding process, pure copper bracket, self-encapsulated LED light source technology.
2. Environmentally friendly, low carbon, energy saving, service life up to 50,000 hours, equivalent to 6 years of continuous lighting
PWM digital high frequency dimming
1. Natural soft light, no glare, healthy eye protection
2. PWM digital high-frequency dimming, more linear brightness adjustment, more accurate dimming, more stable colour temperature, natural soft light does not hurt the eyes.
High definition film reading experience

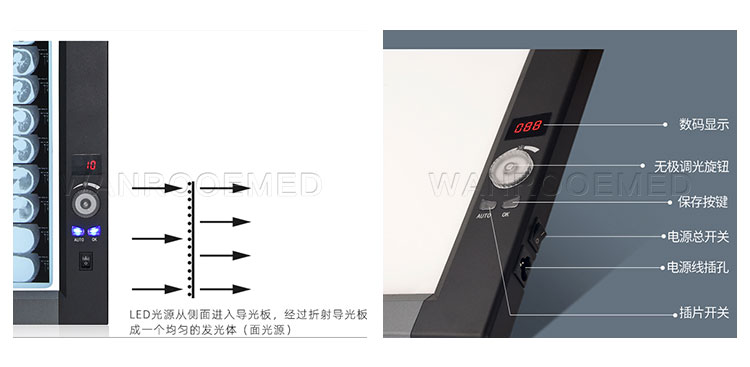

1. Imported acrylic diffusion plate, LED light source from the side into the light guide plate, high light transmission, durable and non-deformation, no discoloration
2. 4mm acrylic light guide plate has the light transmission and uniform diffusion performance of glass
3. High contrast ratio, high colour rendering index and comfortable colour temperature make the reading of the film more clear and crisp
Ultra-thin design
1. slim body, only 25mm thick, lightweight and does not occupy an area
2. Aero-profile + ABS structure design, conducive to heat dissipation
Excellent light distribution
1. Upper and lower light intake method, the brightness uniformity of the observation screen reaches more than 90%
2. High density light source arrangement, brightness up to 4000cd/㎡, customizable brightness
Unique knob rotation and digital control technology
1. Innovative, flexible, practical and easy to operate knob operation
2. 100 steps of stepless dimming for viewing x-rays and CT films of all densities
3. open-and-shut three-digit number display panel.
Film sensing and brightness memory
1. Automatic sensing, automatically illuminates when film is inserted and automatically closes when film is removed.
2. Also features brightness memory.
Simple and easy to use clip mechanism
1. Silicone clamping device for easy film insertion and removal
Stable power supply
1. The power supply chip for the film viewer uses the new semiconductor material potassium nitride
2. Potassium nitride has excellent thermal conductivity, high temperature resistance and acid and alkali resistance
3. small size and light weight of the power supply, and the advantage of charging power conversion
Model No. | AOT-1D Plus | AOT-2D Plus | AOT-3D Plus | AOT-4D Plus |
External Size (mm) | 476×500×25 | 836×500×25 | 1196×500×25 | 1556×500×25 |
Visual Size(mm) | 361×420 | 721×420 | 1081×420 | 1441×420 |
Maximum X-Ray Film Reading Size | 17×14 inch(355.6×431.8mm) | |||
Max Power | 30W | 60W | 90W | 120W |
Light Source | Lifespan:Super high brightness SMD LED 144 PCS/Panel;CT〉6500K; Lifespan of 100000 hours | |||
Electric Parameters | Global Voltage Adaptive built-in power;AC90v-240v;50/60Hz | |||
Brightness Setting | PWM dimming system, minimum brightnesss ≤300cd/m2 and the maximum brightness ≥24000cd/m2. The brightness can be customized | |||
Clip Device | Slicone clip device | |||
Mount Type | Wall-mounted or bracket type(optional) | |||
Application Films | General film,digital film,breast mamography film | |||
Sensor Function | automatic sensing function,plug is bright,memory function,delay power off funtcion | |||
Viewing Uniformity | ≥90° |
