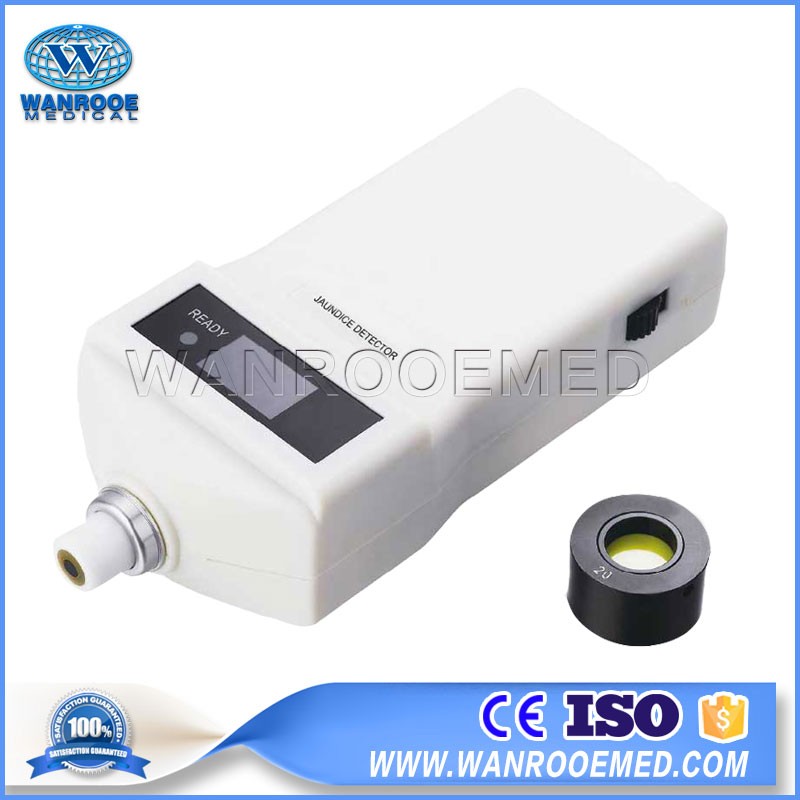

HBJH20-1A/B/C Hospital Neonate Newborn Baby Transcutaneous Bilirubin Measurement Jaundice Detector
HBJH20-1A/B/C Hospital Neonate Newborn Baby Transcutaneous Bilirubin Measurement Jaundice Detector

HBJH20-1A/B/C Hospital Neonate Newborn Baby Transcutaneous Bilirubin Measurement Jaundice Detector HBJH20-1A/B/C Hospital Neonate Newborn Baby Transcutaneous Bilirubin Measurement Jaundice Detector

Huang Yiyi also known as percutaneous jaundice tester, is China's domestic first product, application of fiber optics, optical technology, electronics and information processing technology, small size, light weight, as long as the probe gently press the baby forehead, you can immediately determine the baby instantly Skin tissue bilirubin concentration.

Quantity:
Share this:
  • Product Description

Technical specification

Model

HBJH20-1A

HBJA20-1B

HBJA20-1C

Checking methods

Compare the blue and green light

Compare the blue and green light

Compare the blue and green light

Indication

Two-figure LED digital display

Three-figure LED digital display (one decimal digits)

Three-figure LCD digital display (one decimal digits)

Readable

Switch the measured value into the bilirubin value according to the comparative table



Test the bilirubin value directly on the forehead of baby

Test the bilirubin value directly on the forehead of baby

Average counting

No

No

Can calculate the measured average values for 2-5 times automatically

Test deviation

00~20±1

21~40±2

0~15±1

16~25±1.5

0~15±1

16~25±1.5

Light resource

Xenon-flashing light

Xenon-flashing light

Xenon-flashing light

Power supply

Nickel xenon battery No.5 of 4pieces

Nickel xenon battery group 4.8V

Nickel xenon battery group 4.8V

Prepare time of start-up

<10s

<10s

<5s

Charger

Input 220V 50Hz Output 6V 0.3ADC

Input 220V 50Hz Output 6V 0.3ADC

Input 220V 50Hz Output 6V 0.3ADC

Checkout

White screen indicates 00 or 01 Yellow screen indicates 20.0&plusmn;1

White screen indicates 00 or 01 Yellow screen indicates 20.0&plusmn;1

White screen indicates 00 or 01 Yellow screen indicates 20.0&plusmn;1

Product Weight

About 340g

About 245g

About 190g

Product siz

171mm*74mm*41mm

163mm*66mm*37mm

161mm*53mm*30mm

Gross weight

30kg

Packing dimension

30cm*25cm*15cm


×
