HBXHZ Hospital Medical Baby Neonate Bilirubin Phototherapy with Side Door HBXHZ Hospital Medical Baby Neonate Bilirubin Phototherapy with Side Door

Baby mode control by micro-computer;
Failure alarm indication;
Blue light radiation in two sides;
Timer for phototherapy caring time;
Bassinet can be pulled out from the side door.
DC motor

Quantity:
Share this:
  • Product Description

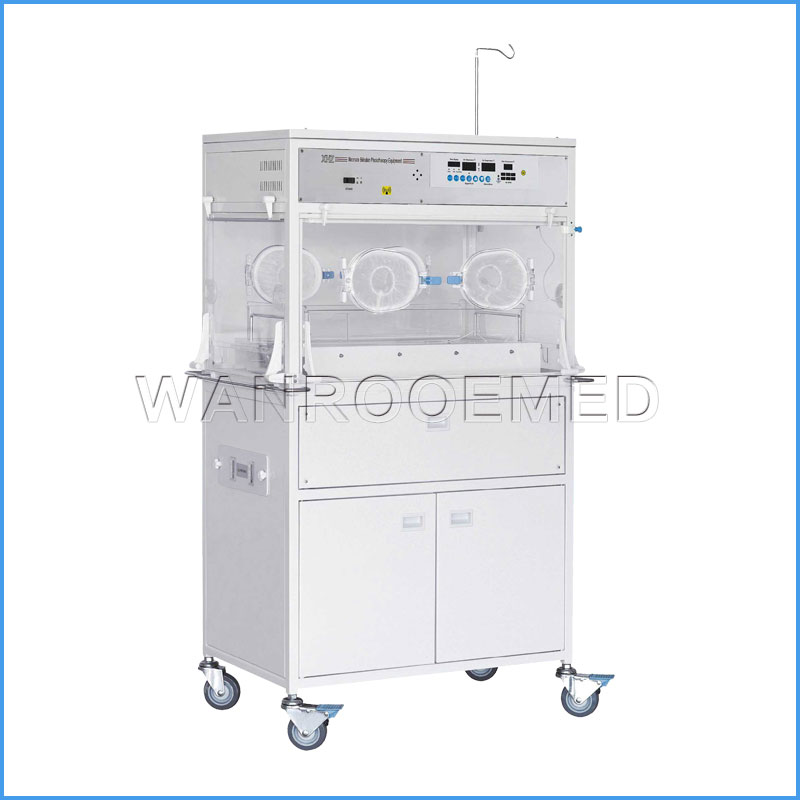

HBXHZ Hospital Medical Baby Neonate Bilirubin Phototherapy with Side Door

Brief Introduction

Baby mode control  by micro-computer;

Failure alarm indication;

Blue light radiation in two sides;

Timer for phototherapy caring time;

Bassinet can be pulled out from the side door.

DC motor



Standard configuration

Above case (including above lamp, controller and infant bed);

Nether case (including nether lamp and cabinet);Skin temperature sensor;I.V.Pole.



Optional Configuration:

LED blue light sa upper case light source;

Disposable skin temperature sensor is optional.



Specification

Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 600VA

Mode of control: Air mode control by micro-computer

Temperature control range: 25-34°C

Skin temperature sensor display range: 5°C -65°C

Correlation of displayed average value and actual average value ( steady temperature condition )≤0.8°C

Accuracy of skin temperature sensor: ±0.3°C

Temperature uniformity of the bed≤ 2.0°C

Noise level above the bed: 55dB(A)

Failure alarm: over-temperature alarm; deviation alarm, sensor failure alarm, fan failure alarm and check alarm.

The total irradiance for bilirubin on the effective surface area:

Above case≥1.5mw/cm2 (blue fluorescent lamp)

           ≥ 2.0 mw/cm2(LED blue light)

Nether case≥3.0 mw/cm2

Average value of general bilirubin radiation on the effective surface area:

Above case≥1.4mw/cm2 (blue fluorescent lamp)

           ≥1.5mw/cm2 (LED blue light)

Nether case: 2.5mw/cm2

Uniformity of the total irradiance for bilirubin: >0.4

Dominant wave length of blue light: 400nm-550nm



Environmental temperature:

Operating range : 18 °C -28°C

Ambient air movement rate:<0.3m/s



Product Packaging:

Package: each unit is packed into two cartons

Dimension (Main body): 1000mm x 700mm x 805mm

                    (Cabinet): 900mm x 600mm x 885mm

Gross Weight (Main body): 70Kg

                         (Cabinet): 50Kg

×
