A-scan Ultrasound biometry, also referred to as just A-scan, utilizes an ultrasound device for diagnostic testing in Opthalmology practices. This device can determine the length of the eye and can be useful in diagnosing common sight disorders. A-scans are also extremely beneficial in cataract surgeries, as they enable the Opthalmologist to determine the power of the intraocular lens (IOL) needed for the artificial implant. Another use for A-scans is diagnosing and measuring masses in the eyes.
US100 Ophthalmic Ultrasound Scanner Features:
Nearly 20 years ultrasound research history, bring you US100 series for ophthalmology biometry.
5.7” color LED touch screen, more convenient for your operation.
Immersion & contact methods, precise measurement.
Built-in thermal printer, realize print anytime.
l-station software enable massive storage, report transmission and print.
Sensitive , accurate measurement, show 8 groups with deviation meanwhile.
With IOP(intraocular pressure) adjustment after get tonometer measurement results.
A Scan
10MHz red-light A scan probe
Resolution: 0.01mm
Accuracy: ±0.1 mm
Gain adjustable: 0-120dB
Measurement range: 15-35 mm (vel 1640m/s)
Measurements: ACD, Lens, Vitreous, and AXL
Examination modes: Support Normal, Cataract, Aphakic and Special eye model
Measurement mode: Immersion and contact ,auto and manual
Pachymeter
20MHz angled pachymeter probe
Resolution: 1um
Measurement range: 0.23-1.2mm
Accuracy: ±0.01 mm
Single or nine points measurement, average reading increase accuracy
IOL formulas: SRK-ll,SRK-T,BINKHORST, HOLLADAY, HOFFER-Q,HAIGIS

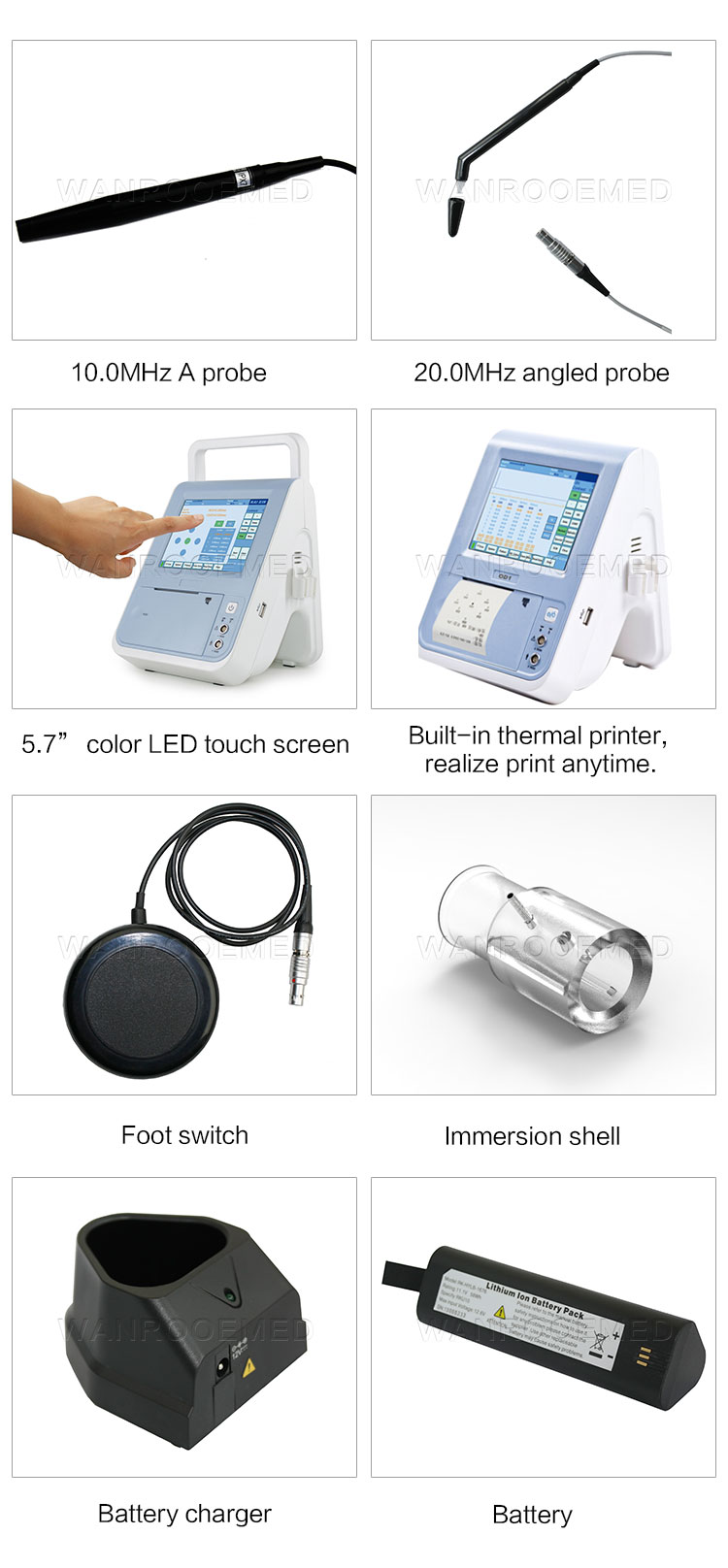

Optional accessories:
Immersion shell
Foot switch
Battery
Battery charger
Standard configuration:
| US100-A Biometer | US-P Pachymeter | US-AP Biometer/Pachymeter |
10.0MHz A probe Gage block for A-Scan/Biometer Power adapter Touch screen pen | 20.0MHz angled probe Gage block for Pachymeter Power adapter Touch screen pen | 10.0MHz A probe 20.0MHz angled probe Two kinds of Gage blocks Power adapter Touch screen pen |
