PLX7200 Medical Mobile 3D Digital Radiology Equipment X-Ray C-Arm System (Cone Beam CT) widely used in Orthopedics, general surgery, othopedic surgery, urology, spinal surgery, abdominal surgery, gastroenterology department, gynecology and operating room etc. Bone tissue biopsy, spine pedicle screw implantation, long tubal bone marrow nail fixation and hand, foot fracture surgery with screw fixation.

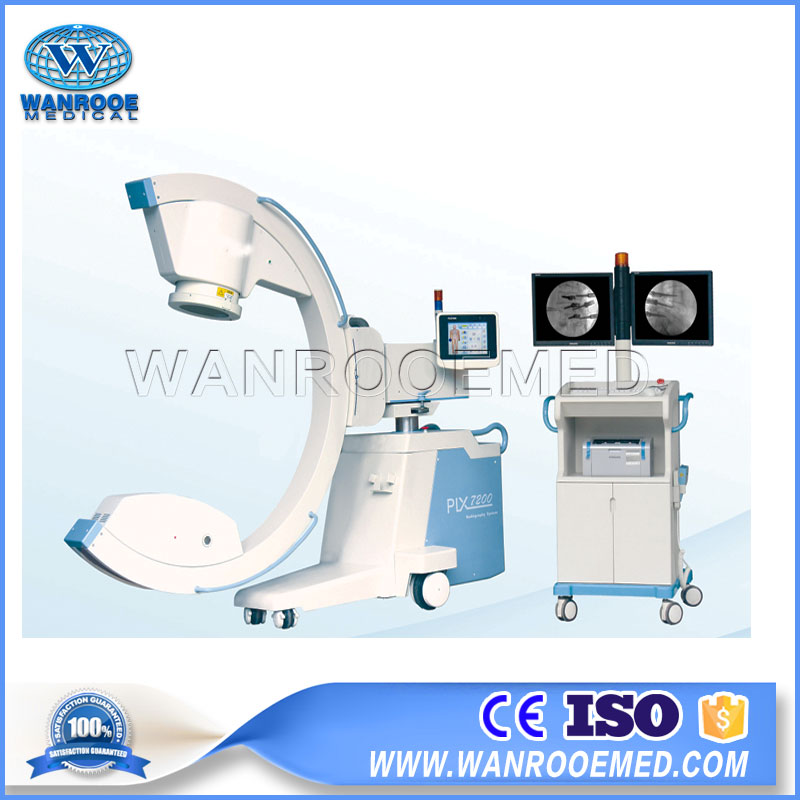

PLX7200 Medical Mobile 3D Digital Radiology Equipment X-Ray C-Arm System (Cone Beam CT)
PLX7200 Medical Mobile 3D Digital Radiology Equipment X-Ray C-Arm System (Cone Beam CT) widely used in Orthopedics, general surgery, othopedic surgery, urology, spinal surgery, abdominal surgery, gastroenterology department, gynecology and operating room etc. Bone tissue biopsy, spine pedicle screw implantation, long tubal bone marrow nail fixation and hand, foot fracture surgery with screw fixation.
Isocentric Design Technology:
Eliminate the need for repositioning and enable both and dose saving Ensure a constant image size with varying projections Wide orbital rotation of up to 190° Prerequisite for 3D imaging via orbital movement
Category | Item | Main Contents |
Electrical Performance | X-ray Generator | Output Power: 5.0kW Inverter Frequency: 60kHz |
Continuous Fluoroscopy (Automatic/ Manual) | Tube Voltage: 40kV~125kV continuous adjustment | |
Tube Current:0.3mA~4mA continuous adjustment | ||
Pulse Fluoroscopy | Tube Voltage:40kV~125kV continuous adjustment Tube Current:4.1mA~30mA continuous adjustment Pulse Frequency:1-10 frame/ continuous adjustment | |
C-arm Rotation Sequences Radiography | Tube Voltage:40kV~125kV continuous adjustment Tube Current:4.1mA~15mA continuous adjustment Number of Sequence Radiography: 100frame | |
Radiography | 40kV~125kV 100mA 0.01-180mAs | |
X-ray Tube | Rotary Anode Focus | 0.3/1.5mm |
Anode Thermal Capacity | 35kJ | |
Tube Thermal Capacity | 650kJ | |
Image System | Image Intensifier | TOSHIBA 9" image intensifier |
CCD Camera | Medical Mega-pixels digital CCD camera | |
Monitor | 19' MEGA pixels high definition Medical LCD Monitor | |
Digital Image Processing System | Image acquisition module: Achieve a single frame, sequence image acquisition, ultra-high-speed Ethernet pass - real-time transmission | |
The image processing module: Images have been collected or stored in the module of image processing: tagging, zoom, measurement, sub- window display, Continuous play. 90 Rotation , horizontal mirror , vertical mirror function | ||
The report module: Modify report templates provide a variety of content, user-friendly report writing, report printing function | ||
Film print module: Follow Dicom Medical film typesetting and printing capabilities | ||
Image 3D Processing: 1) Sequence image reconstruction: Run 3D image reconstruction after the acquisition of sequence data is complete. 2) Image reconstruction time less than 10s. 3) Automatic display of the Cross plane, Coronal plane, Sagittal plane and 3D image 4) 3D display: MIP and VRT | ||
Structure Performance | Direction Wheel Main Wheel | Direction wheel 360°rotation Main wheel ±90°rotation |
C-arm | Motorized rotation around horizontal axis: ±180° | |
Motorized slip on orbit: 190° | ||
Rotation around vertical axis: ±15 | ||
Motorized forward and backward movement: 200mm | ||
Motorized ascending and descending of pillar: 400mm | ||
SID:1025 mm Open:825 mm Arc depth:810 mm | ||
Remote maintenance system | 1) Equipment failure automatic acquisition and analysis 2) Remote operation guide and troubleshooting 3) Workstation Software automatic upgrade | |
Power supply | 220V ± 20V, 50Hz ± 1Hz | |
