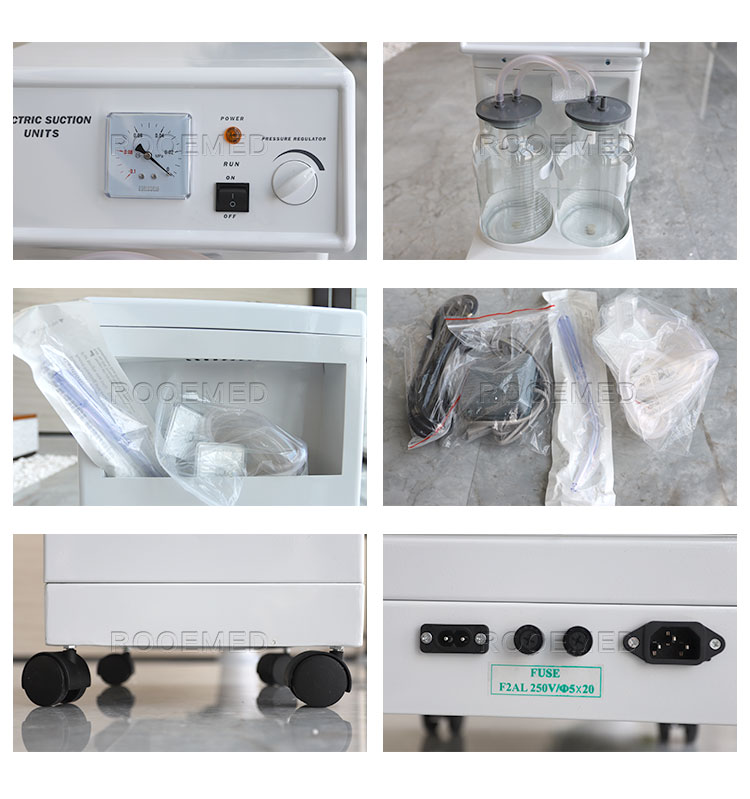

The electric suction device is composed of negative pressure pump, negative pressure regulator, negative pressure indicator, collection container assembly, foot switch, frame, etc. The electric attractor provides high vacuum and high flow rate, and it quickly establishes a strong vacuum in seconds.
Piston Suction Pumps Portable Electric Suction Apparatus For Dental/Clinic Description:
Electric Suction apparatus is a new generation of oil-free medical suction apparatus with negative pressure pump. Portable Suction apparatus is composed of negative pressure pump, negative pressure regulator, negative pressure indicator, collection container assembly, foot switch, frame, etc. Pump suction provides high vacuum and high flow, and it quickly builds up a strong vacuum in seconds. Dental Suction machine provides flexible and combinable container system to meet various clinical applications. Suction Clinic is a high flow and high vacuum device, which is very suitable for use in general wards, accident and emergency, small operating rooms, intensive care units and can also be used as a backup device in hospitals and dental clinics.
Piston Suction Pumps Portable Electric Suction Apparatus For Dental/Clinic Features:
1. Provide extremely efficient vacuum generation, maintenance-free and easy to repair.
2. Oil-free piston pump helps to keep from oil mist pollution.
3. Plastic panel makes it resistant from water erosion.
4. Low noise, easy to operate with manual and pedal switches.
5. Overflow protection device prevents liquid or solid particles from entering the intermediate tubing and pump; Single-use bacterial filters can eliminate airborne pollution.
6. Medical suction, high negative pressure, high flow rate.
7. The required vacuum degree is controlled by the vacuum regulator and displayed on the vacuum gauge.
8. The manual switch and foot switch are installed in parallel, and can be selected at will.
9. With two autoclavable transparent glass bottles, more durable and easy to clean. The tank is graduated and has an automatic overflow stop valve.
10. There are 4 anti-static casters for easy movement.
Specification | ||
Model | YX930DA① | YX930DA② |
Max vacuum | ≥0.09 MPa | |
Adjustable Vacumm Range | 0.02MPa~Max.Vacuum | |
Noise | ≤60 dB(A) | |
Flow Rate | ≥20L/min | ≥40L/min |
Power | AC 220V±22V/110V±11V,50Hz/60Hz±1Hz | |
Input power(VA) | 150 VA +15% | 250VA |
Reservoir capacity | ≥2500 ML/PC, 2PCS | |
Weight(kg) | 21kg | |
DIM(mm) | 350×312×800 | |
List of Accessories Suction | ||
Hose (φ7×φ12,length≥1.3m) | 1 piece | |
Fuse | 2 pieces | |
Air filter | 2 pieces | |
Power cord | 1 piece | |
Pedal switch | 1 piece |
