BAE508 Adjustable Automatic 5 Function Hospital Bed Up And Down Patients BAE508 Adjustable Automatic 5 Function Hospital Bed Up And Down Patients

Five-function electric bed is the most common adjustable electric bed. 5 The main function of the function bed is to adjust the back, the leg adjustment, the backrest and the legs are adjusted together, Tucelumber's boiling / reverse Tucelumber's position and high adjustment. This bed can also add cardiopulmonary resuscitation function

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

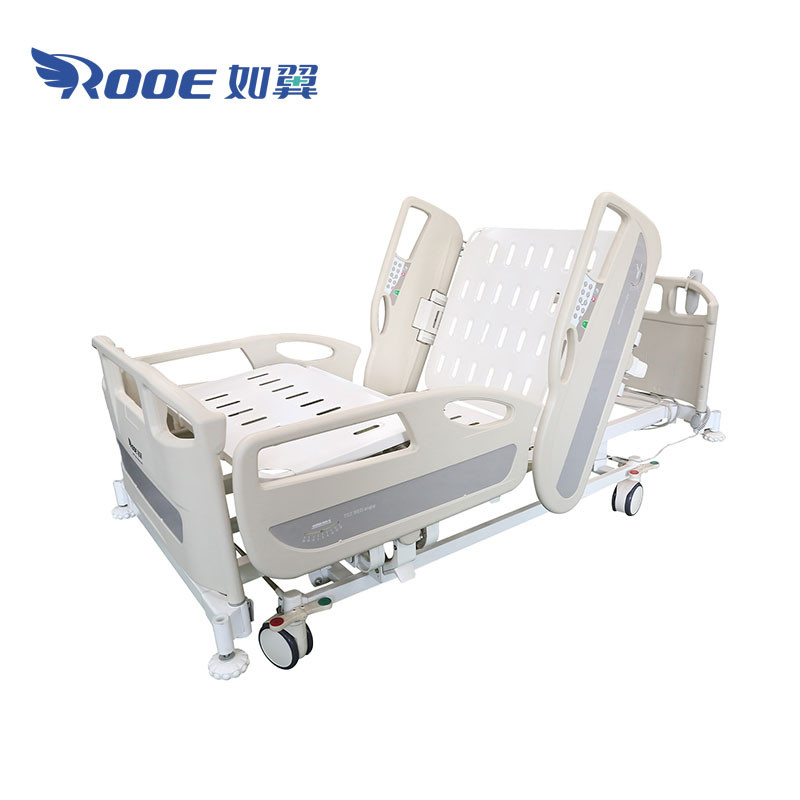

5 Function Hospital Bed Up And Down Patients Description:

5 Function Hospital bed is a multi-functional electric-sleeve, which combines the necessary safety functions that allow patients to remain on the rehabilitation path. The low noise of high-quality motor systems can meet the requirements of medical equipment. Open architecture design can achieve fast and easy cleaning, which helps reduce risk of infection, and intuitive controls make it easy to use. hospital bed up and down provides patients with security to provide staff with safer working conditions.

Automatic hospital bed provides an adjustable head, feet, a height adjustable hospital bed functions built-in battery, can be used during a power outage. adjustable hospital bed for patients is equipped with four bed safety rails, stylish and elegant. The bedside board matches the tail plate. Classic 5 feature provides you with comfortable care and health protection.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

5 Function Hospital Bed Up And Down Patients Features:

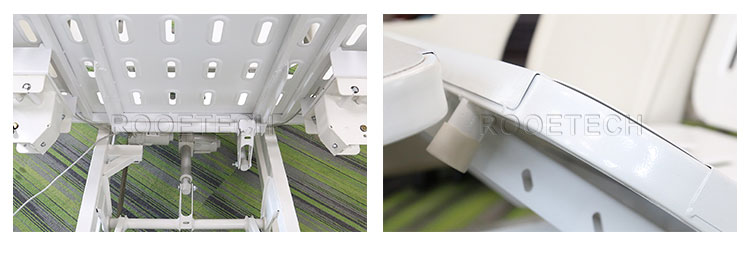

1. Bed frame and mattress base are made of powder coated steel. Four roof sections are perforated evenly and should be properly mounted on the main frame. The bed frame is sturdy and stable, supporting at least 250 kilograms.2. The bed surface adopts

2. cold rolled steel plate integral stamping process, the bed body adopts square steel welding, the surface adopts plastic spraying treatment, anti-rust, anti-corrosion, stable and durable as a whole.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

3. The head/end of the bed adopts ABS injection molding technology, anti-aging and antibacterial. Head plate and tail plate adopt automatic locking device. In case of emergency, it is convenient to disassemble rescue, special care and safe transport of patients. Head and tail board all have grasp handle that designs by human body engineering principle, facilitate carry out.
4. All electric control, and indicators show the working status. The use of easy to operate touch switch, to solve the mechanical keyboard service life is limited, keys due to continuous operation and failure.
5. The electric remote control provides the following functions: 1. Backrest elevation 2. High and low elevation 4. Trendelenburg position 5. Reverse Trendelenburg position. 6. One-touch CPR button for quick recovery.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

6. - Four ABS guardrails on the side are equipped with Angle indicators, through which nursing staff can monitor the patient's head Angle.
- Patient control panels on both sides can independently operate hi-LO, back, knee and auto-chair, manual CPR to quickly restore the bed board to a horizontal state in an emergency.
- External panels for nursing staff and inner panels for patients to prevent transmission of infection.
- Guardrail provides best fall protection. The guardrail can be folded with one key, convenient for patients to get on and off the bed. After being put down, it can be hidden under the bed plate to achieve zero clearance transfer. Guardrail safety switch is designed to be placed below the guardrail to avoid patient misoperation.
* Auto-chair function, which can simultaneously manipulate the backrest and knee rest to the position of the Chair, providing a comfortable position for the patient.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

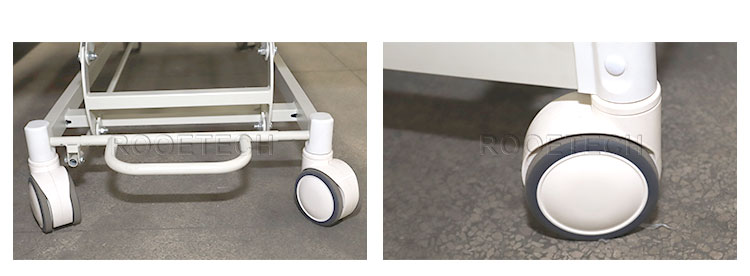

7. 5 inch central control casters, free and directional three-stage seesaw central control locking device.

8. The four corners of the bed are equipped with anti-collision wheels, made of plastic and protruding outside the bed body, which can effectively prevent the bed from colliding directly with elevator, door frame and other planar obstacles during operation and use, ensuring a smooth transition.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

9. Spare batteries for emergency power outages. External power supply can be used.
10. There are 4 holes at both ends of the bed for assembling the infusion stand
11. Assembly: The bed is fully assembled except for the side rails and headboard. No tools needed.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed

12. The built-in scale makes weighing easy, which helps reduce the risks associated with handling the patient manually. Its support, robustness and weight detection system make it a safe and easy to use choice.

13. Optional hospital bed guardrail electric control panel.

5 function hospital bed,hospital bed up and down,automatic hospital bed,adjustable bed for patients,adjustable hospital bed


Specification
ModelBAE508
Measure
Length:2130mm
Width:1050mm
Bed Base Height Range
Maximum Height740mm
Minimum Height460mm
Technical Features
Backrest max upward angle0-75°±10°
Footrest max upward angle:0-45°±10°
Trebdelenburg0°~≥12°
Anti-Trebdelenburg0°~≥12°
One button heart chair position0-90°
Loading Capacity
Loading Capacity250kg
Power supply220VAC or 110VAC   Frequency: 50-60HZ
Power Plug:EU type standard if other type, confirm each order
OptionalMatress
IV POLE
The Weighing Function
Extension bedplate
Over Bed table
beside locker


×
