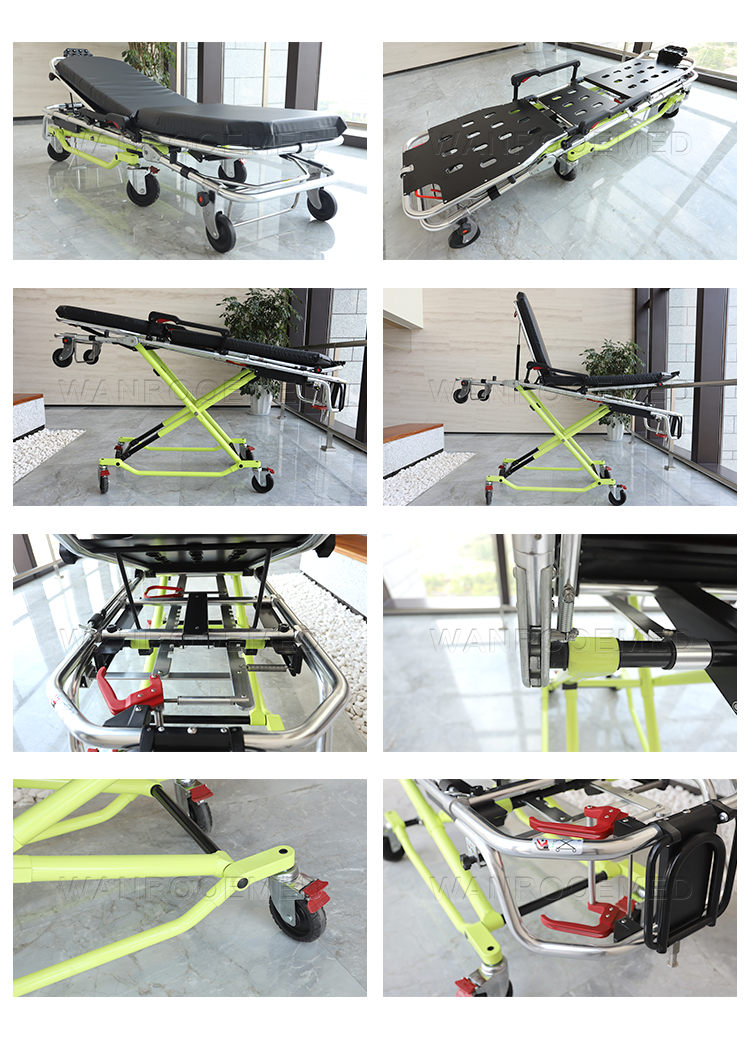

X-frame undercarriage is easily raised when loading. When unloading, the safety U-bar will hold the stretcher on ambulance until the operator release it. Breakaway head section, adjustable height.This product is made of high-strength aluminium alloy thick-wall pipes. Soft foamed cushion surface with adjustable backrest, making the wounded feel comfortable.
Adjustable Stretcher Trolley Bariatric Stretcher Ems Rescue Equipment Description：
Easy on and off ambulance operation
Since both the patient and the stretcher are in the ambulance, the ambulance can be pushed in or pulled out when getting on and off the ambulance. The adjustable stretcher trolley has reasonable structure, flexible movement, stable and reliable.
High strength aluminum alloy structure
Slimming stretchers are mainly made of aluminum alloy with die-cast aluminum connectors. It has the characteristics of light weight, good toughness and easy disinfection. It can be used in hospital emergency centers to transfer casualties.
Comfortable sponge cushion with adjustable back
EMS first aid equipment adopts spongy cushion with adjustable backrest Angle to make patients more comfortable to lie down. There are three manual stretchers that can be adjusted to the height of the ambulance.
Easy folding operation
EMS stretchers use left hand handles and side retractable handles to control folding, requiring only one paramedic to push the patient into the ambulance. Wheel rubber material, durable.
Safety fixture
The stretcher must be locked to a fixture on the ambulance to ensure the safety of the patient while the ambulance is moving. Use two seat belts to ensure patient safety.
Automatically deploys stretcher legs
When transporting the patient to the ward or destination, open the rear lock and slowly pull it out of the ambulance to automatically deploy the stretcher legs.
Adjustable Stretcher Trolley Bariatric Stretcher Ems Rescue Equipment Features：
1. X-frame undercarriage is easily raised when loading.The longer front legs of the X-frame are designed to be less flexible, increasing the stability and centrality of the stretcher. When the stretcher is subjected to minor bumps or tilts during transport, it can effectively reduce the risk of injury to the operator or the patient.
2.U-hook design is easy to fix in the emergency vehicle, increasing the safety of transit.When unloading, the safety U-bar will hold the stretcher on ambulance until the operator release it.
3.The side handle enables the stretcher to ascend and descend.
4.Adjustable height.
5.Breakaway head section.
6.The backrest can be adjusted from 0- 75 deg by gas spring.
7.Swing-down side rails to protect patient when transfer.
8.Only one person or two person can raise and slide the stretcher on to the ambulance.
9.The stretcher can be locked by the fixing device when it is in the ambulance.
10.It is made of high-strength aluminum alloy.
11.The loading wheel can be folded to shorten.
12.Φ15cm four wide rubber castors，which have safety locks.
13.Mainly used for ambulance, hospitals, emergency centers.
Bariatric Stretcher Ems Rescue Equipment Accessories：
1. Waterproof seamless welding PVC mattress(8cm thickness foam).
2.3pcs belts for chest, hip and knee and shoulder strap.
3.Fixing device L04 or L06.
| Model | High position | Low position | Maximum Angle of the Back | Maximum Angle of the knee part | Load Bearing | N.W. | G.W. | Packing Size（1pc/CTN） |
| EA-3G | 200x56x100cm | 200x56x38cm | 75° | 35° | 250kg | 43kg | 60kg | 202×69×44cm |
