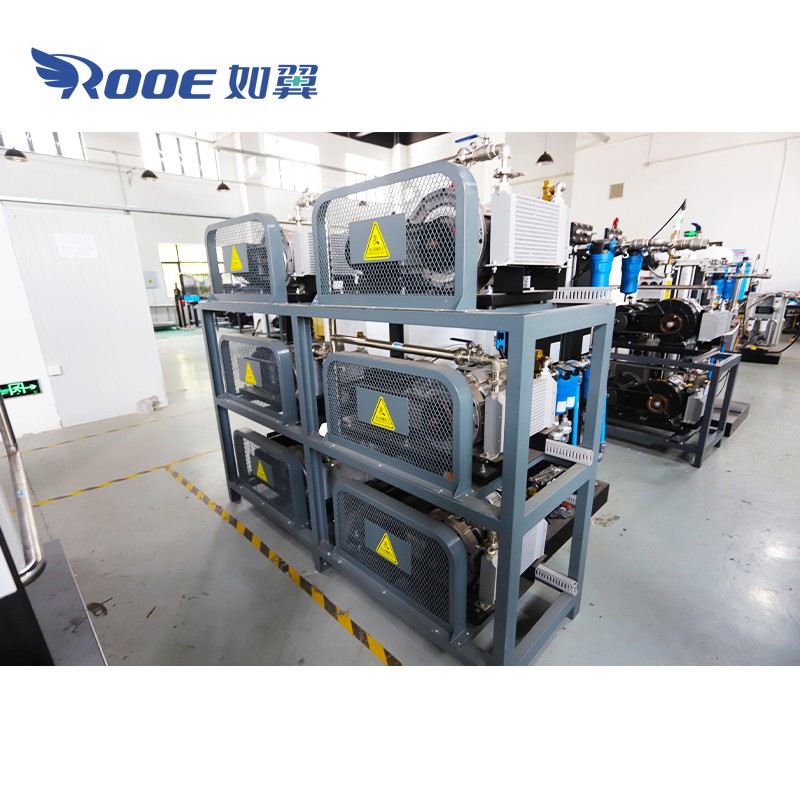

Our Medical Air Compressor features cutting-edge oil-free scroll pump technology, delivering a consistent supply of clean, dry medical air for hospitals and healthcare facilities. Equipped with intelligent control systems, triple-stage filtration, and continuous backup protection, it guarantees safe, efficient, and uninterrupted air delivery for operating rooms, ICUs, and other critical clinical settings.
 |  |  |

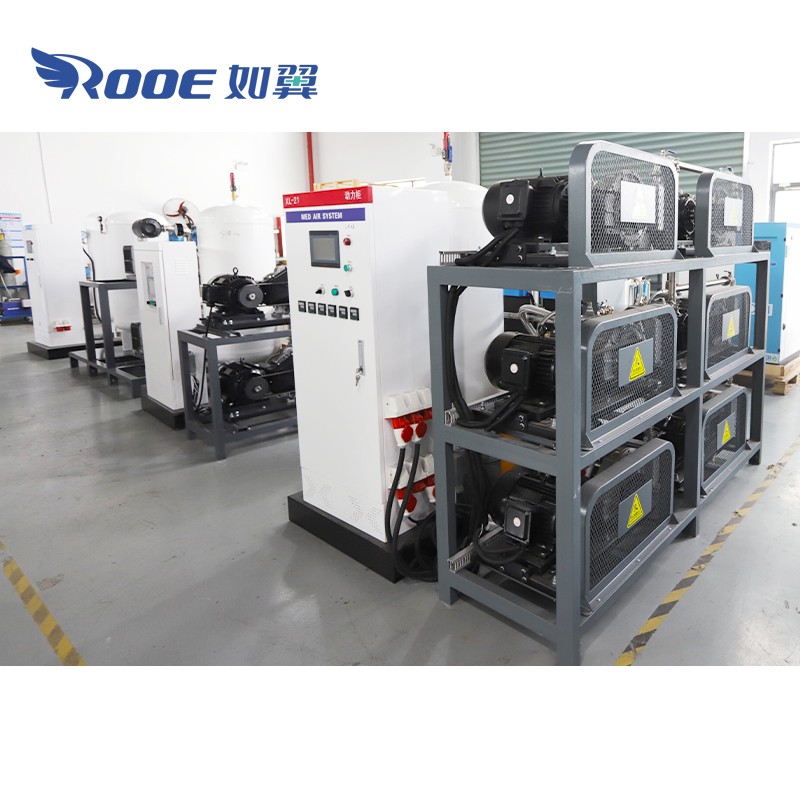

Delivers oil-free, contamination-free air that meets international medical standards. The compact skid-mounted design integrates multiple functions, simplifying installation and operation.
Supports multi-unit standby circulation mode to continuously monitor pump performance. In case of a fault, the system automatically detects the issue, triggers an alarm, and bypasses the affected unit to maintain uninterrupted medical air supply.

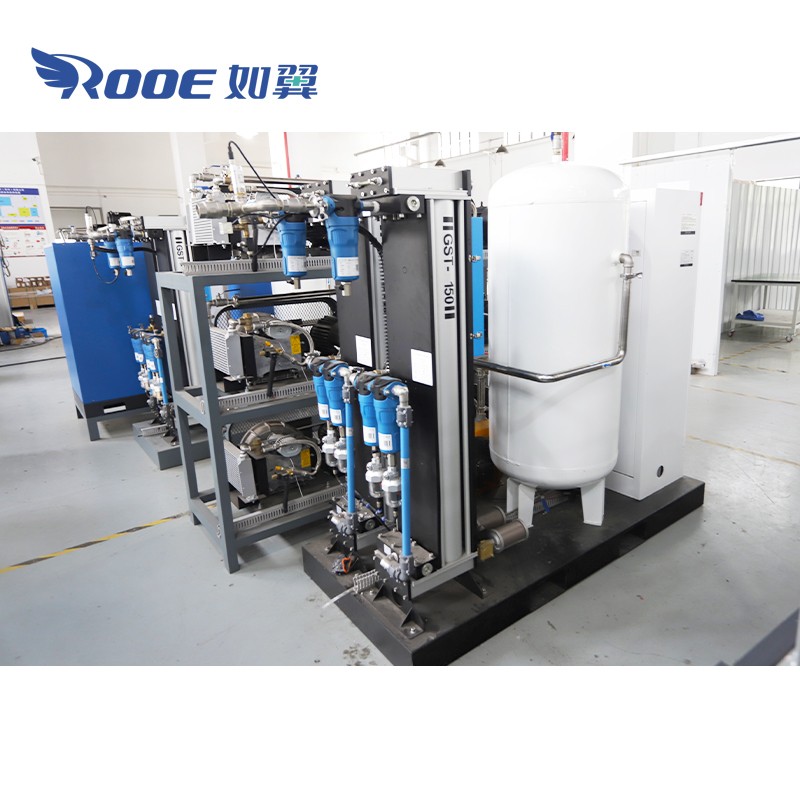

Equipped with a triple-stage filtration system and automatic drain valve to eliminate manual drainage. The adsorption dryer achieves a pressure dew point of -20°C, ensuring a continuous flow of clean compressed air for operating rooms and ICUs.

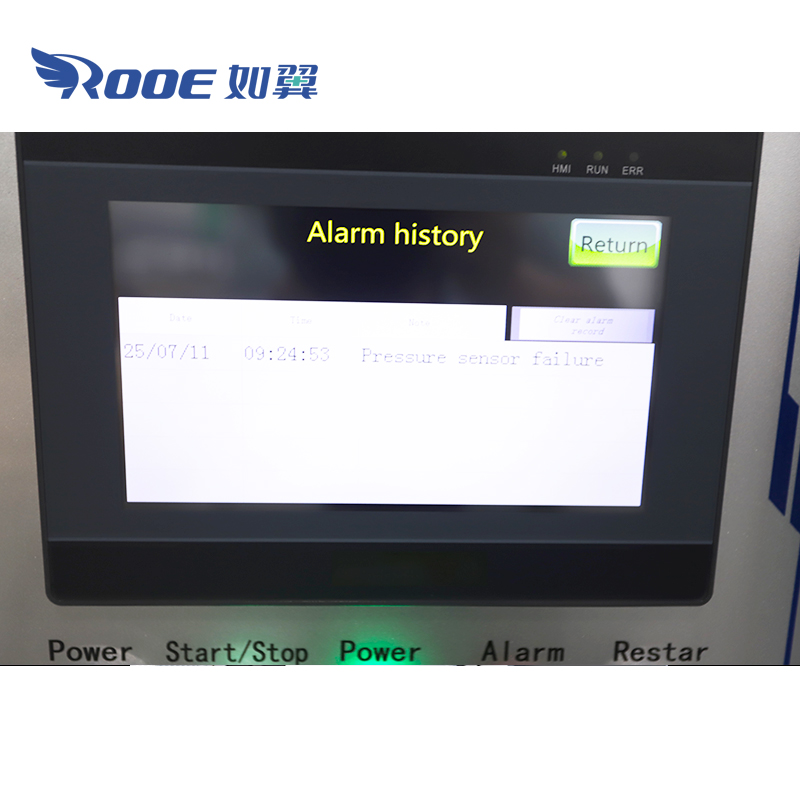

Includes dew point and carbon monoxide alarms, supporting both local monitoring and remote transmission to the hospital’s building automation system (BAS).

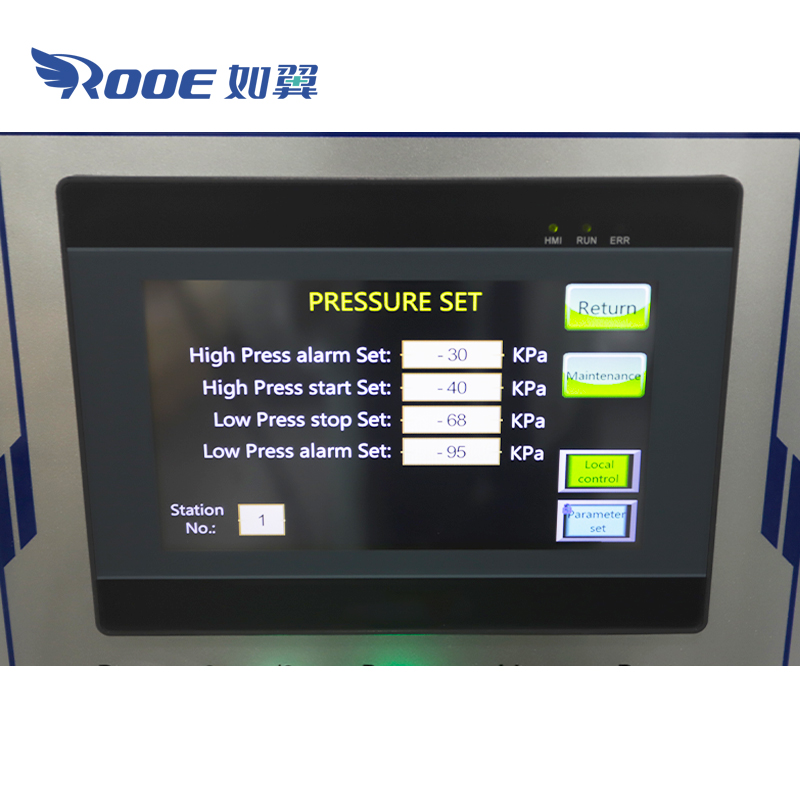

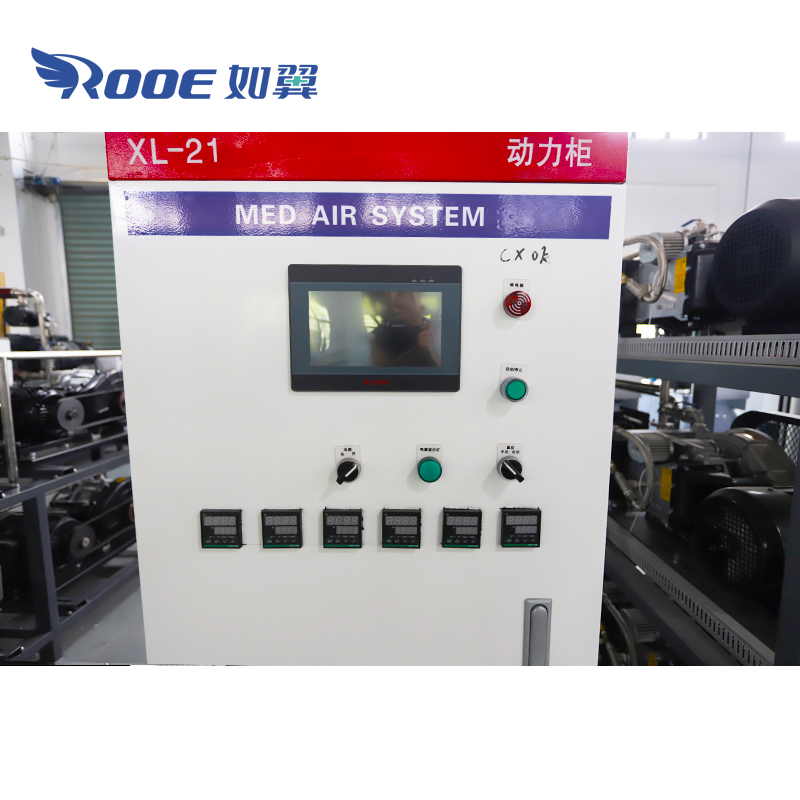

Automatic operation managed by pressure sensors with reverse protection. Features auto-restart after power outages for enhanced reliability and a remote communication protocol interface for seamless integration with hospital management platforms.
| Model | Single Unit Flow Rate(m³/min) | Single Unit Power(kw) | Refrigerated Dryer Capacity(m³/min) | Activated Carbon Filtration Capacity(m³/min) | Oil Removal Filter Capacity(1um,0.1mg/m³) | Dust Removal Filter Capacity(3um,m³/min) | High-Efficiency Filter Capacity(0.01um,0.01mg/m³) |
| GAS-AIR-3.7N | 0.41 | 3.7 | 1.6 | 1.3 | 0.57 | 0.57 | 0.57 |
| GAS-AIR-5.5N | 0.62 | 5.5 | 1.6 | 1.3 | 1.3 | 1.3 | 1.3 |
| GAS-AIR-7.5N | 0.82 | 7.5 | 1.6 | 1.3 | 1.3 | 1.3 | 1.3 |
| GAS-AIR-11.0N | 1.24 | 11 | 1.6 | 2.8 | 2 | 2 | 2 |
| GAS-AIR-15.0N | 1.62 | 15 | 2.4 | 2.8 | 2 | 2 | 2 |
| GAS-AIR-16.5N | 1.86 | 16.5 | 2.4 | 2.8 | 2 | 2 | 2 |
| GAS-AIR-18.5N | 2.03 | 18.5 | 2.4 | 2.8 | 2.8 | 2.8 | 2.8 |
| GAS-AIR-22.0N | 2.48 | 22 | 3.8 | 2.8 | 2.8 | 2.8 | 2.8 |
