The AMJ-560B5 Advantage offers modular scalability with enhanced functionality for effective care across a wide range of patient types, from neonate to bariatrics. Standard safety features, advanced ventilation modes, central locking brake, and a high-pressure O2 port support initial clinical needs with advanced ventilation modes, lung protective strategies and workflow tools available for true scalable functionality.
AMJ-560B5 ICU Anesthesia Ventilator Introduction:

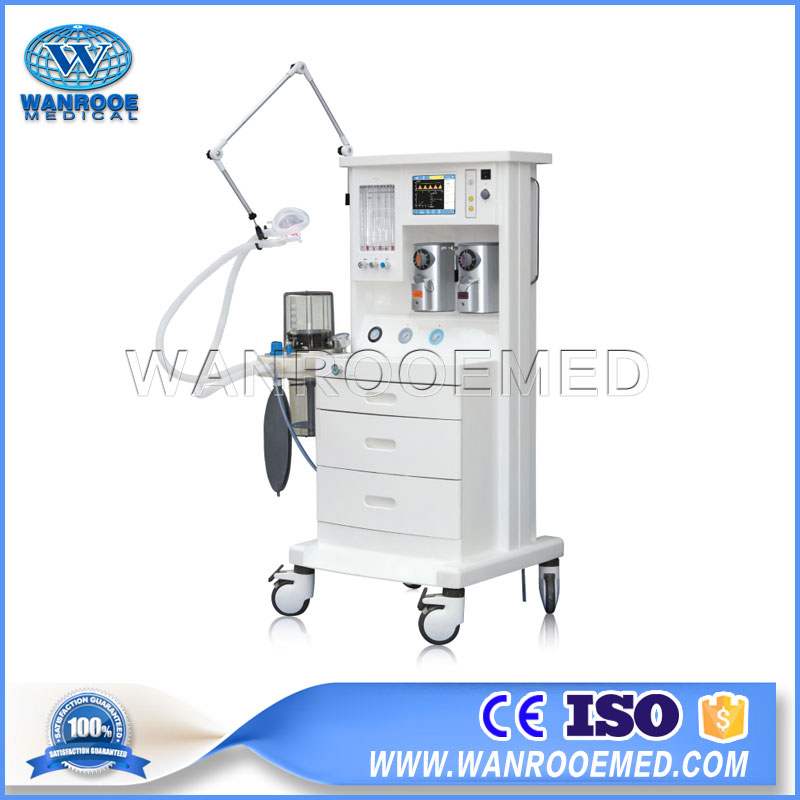

AMJ-560B5 Anesthesia Machine, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process are what demonstrate the inner quality of Aokai products: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.
AMJ-560B5 ICU Anesthesia Ventilator Features:
1. The Ventilator adopts microcomputer control with high-definition 10.4" TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters.
2. It is versatile in function and excellent in performance.
3. The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose two kinds of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
4. High-definition five-tube flowmeter (oxygen, nitrous oxide, and air), designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.
Reliable pneumatic transmission system.
5. Economic and proper configuration of technologies, optional as required by the Customer.
6. Modularized design and upgrading. Upgrading is available as required by the Customer.
Part of Anesthesia Machine
Main body | High-strength engineering plastic rack, light, beautiful and corrosion resistant |
Scope of application | adult, child |
Gas source | O2: 0.27~0.55MPa N2O: 0.27~0.55MPa |
Flow meter | O2 : 0.1~1.0L/min 1.1~10L/min N20: 0.1~1.0L/min 1.1~10L/min Air : 0.1~10L/min |
O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off. |
Flow rate of rapid oxygen supply | 25~75L/min |
Low oxygen pressure alarm | There will be sound alarm when the oxygen pressure < 0.2MPa |
Vaporizer | it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. |
Respiratory circuit | working mode: all-close, semi-close, semi-open APL: 0.5~7 kPa |
Respiratory Bellows | bellows for adults, tidal volume range:0~1500 ml bellows for children, tidal volume range:0~300 ml anyone can be chosen for application as required by the customer |
Part of Ventilator
Display mode | High-definition 8.4” TFT color LCD screen display |
Ventilation mode | IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, IMV, VCV, PCV |
Ventilation parameters | Tidal volume : 20~1500 ml Rate : 1~99 bpm SIMV rate : 2~20 bpm I:E: 4:1~1:8 Inspiratory trigger pressure:-1.0~2.0 kPa PEEP : 0~2.0 kPa Pressure range: 1.0~6.0 kPa SIGH :1.5 times the inspiratory time (70-150 adjustable) Inspiratory platform : 0~50% |
Parameters for ventilation monitoring | tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure - time waveform, flow rate - time waveform,PEEP,inspiratory trigger pressure, Inspiratory platform, autonomous inspiratory rate, lung compliance, airway resistance, flow-volume loop, pressure-volume loop |
Monitoring of oxygen concentration | 21%~100% |
Security Alarm System
Oxygen Concentration alarm | upper limit setting range 21%~100% low limit setting range 10%~80% |
Airway pressure alarm | upper limit setting range 0.3~6.0 kPa low limit setting range 0.2~5.0 kPa |
Per-minute ventilation volume alarm | upper limit setting range 3.0~30L/min low limit setting range 1.0~10L/min |
Sustained high-pressure alarm | it will give alarm when stress have consistently been higher than 2.5 kPa |
Suffocation alarm | it will give sound and light alarm if there is no tidal volume input for 15 seconds |
Power alarm | |
Power | AC 220V±10% 50Hz±1Hz (UPS, Storage battery) |
