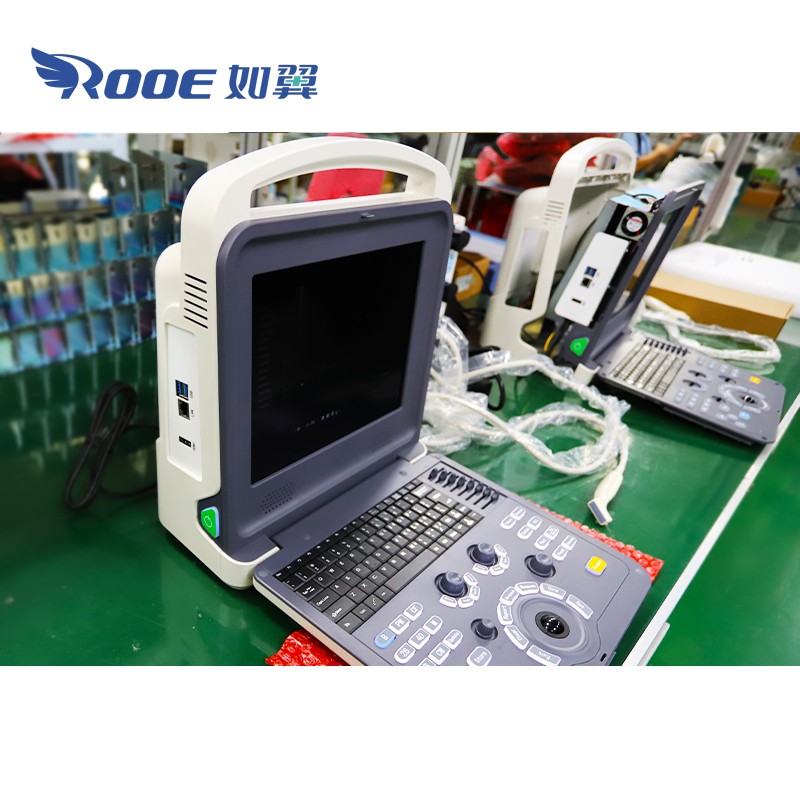

This is a lightweight and high-performance color Doppler diagnostic device designed for hospitals, clinics, and mobile healthcare services. Featuring advanced imaging technology, a 12-inch medical LCD display, and multiple probe options, it provides clear and accurate diagnostic results. With its ergonomic design, built-in battery, and multi-language interface, this portable ultrasound system offers exceptional mobility, reliability, and versatility for various clinical applications.
This is a compact, high-performance color Doppler diagnostic device designed for a wide range of clinical applications. Combining lightweight portability, advanced imaging technology, and an intuitive user interface, it provides excellent mobility, image clarity, and diagnostic precision. Ideal for hospitals, clinics, and mobile healthcare services, it ensures reliable performance and flexibility in diverse diagnostic environments.
 |  |

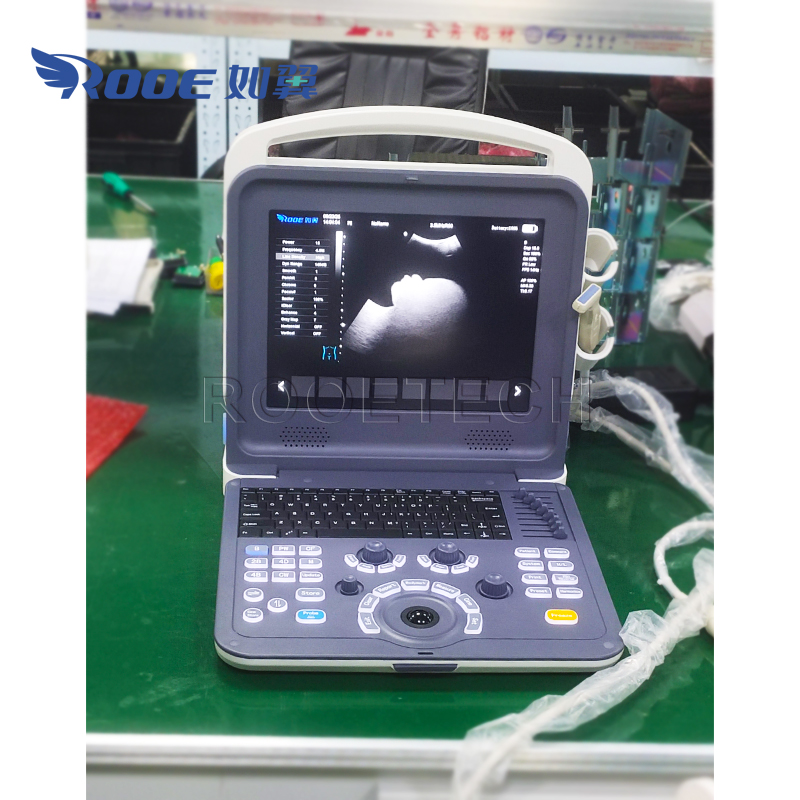

1. High-Definition 12-Inch Medical Display
Features a bright, high-resolution LCD screen with imaging precision under 0.5 mm for clear and detailed visualization.
2. Lightweight and Portable Design
Weighing approximately 6.5 kg, this portable ultrasound imaging system is easy to carry, ideal for bedside and field examinations.

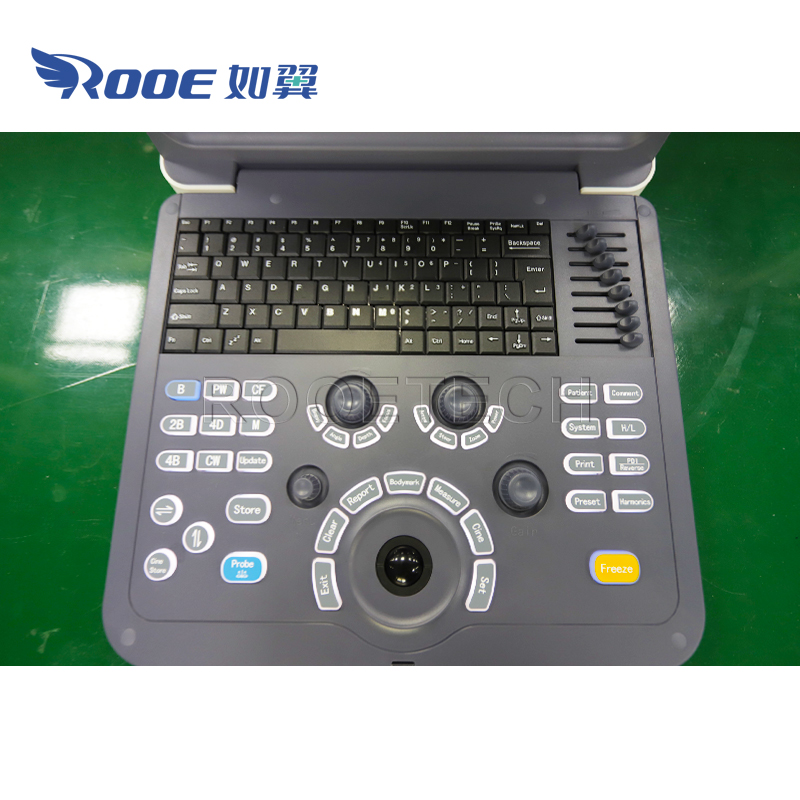

3. Ergonomic Backlit Control Panel
Equipped with a floating, backlit keyboard for comfortable and efficient operation under various lighting conditions.
4. PC-Based Architecture and Rich Connectivity
Built on a powerful PC platform, the system supports multiple peripherals and printers, offering USB, Ethernet, RS232, VGA, and DVI interfaces for smooth data transfer and expansion.
5. Multi-Language User Interface
Supports English, Chinese, Spanish, Russian, Persian, and French for convenient international use.

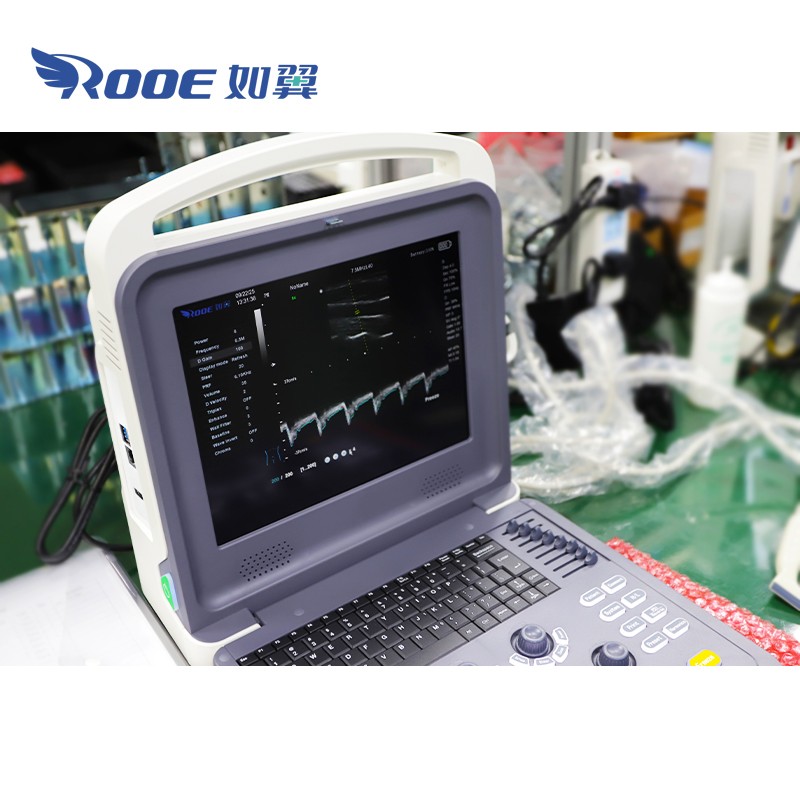

6. Advanced Imaging and Color Doppler Function
Delivers clear 2D imaging and sensitive Color Doppler visualization for accurate blood flow analysis and diagnostic reliability.
7. Multiple Imaging Modes
Offers B, 2B, 4B, B+CF, B+CF+PW, B+CW, and optional real-time 4D imaging modes to meet various clinical needs.
8. Built-In Battery and SSD Storage
Includes a long-lasting battery and high-speed solid-state drive for efficient, uninterrupted operation during mobile use.
9. 128-Element Probe Compatibility

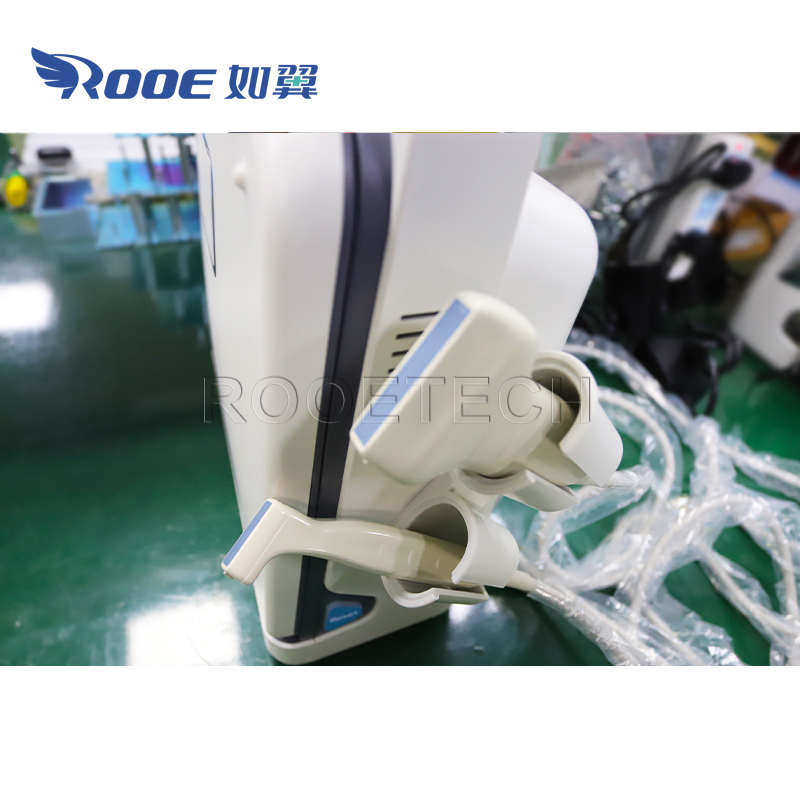

Compatible with a wide range of probes—abdominal, linear, cardiac, transvaginal, and convex—with optional 4D imaging upgrade.
 |  |
Probe configuration:
| Configuration | Probes | 5 Steps Multi-frequency |
| Standard | 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz | |
| Options | 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz |
| 3.5MHz micro-convex probe | 2.0, 2.5, 3.5, 4.5, 5.0Mhz | |
| 3.5Mhz phased array probe | 2.1, 3.0, 3.5, 4.0, 5.5Mhz | |
| 3.5Mhz 4D volume probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
Technical Parameters:
| Displaying mode | B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW,CW, 4D |
| Signal processing | Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
| Image processing | THI PSHI TM broadband multi-frequency harmonic image Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization Storage: Direct date transfere to U disk or PC MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing Composite gain technology: 8-segment TGC and D-AGC Focus: Launch focus area is full screen, digital dynamics are full receive focus Continuous Wave Doppler Trapezoid Image (Optionl) Real time 4D imaging (Optionl) |
| Scanning depth | ≥260mm |
| Probe elements | 128 |
