DG100 Manual Hydraulic Patient Lift For Home Patient Hoist Lift DG100 Manual Hydraulic Patient Lift For Home Patient Hoist Lift

DG100 Mobility Hoist Patient Lift for Disabled is suitable for stay in bed for a long term, Patients with inconvenient action or can not move after operation. They use it accompanied by nursing staff, Hospital, nursing center or family can be used.

Quantity:
Share this:
  • Product Description
  • Parameter

Manual Hydraulic Patient Lift For Home Patient Hoist Lift Description:

Manual Hydraulic patient lift is an assistive device that transfers a patient between a bed and a chair or other similar resting place, commonly used in hospitals, nursing homes, and home health centers. Manual Patient Lift is an entry level lift designed to provide a safe and comfortable lift experience for individuals and caregivers.
Accessories such as the patient lift for home help make the process of lifting and transferring a patient a more ergonomic task. Lifting slings are readily available to paramedics, thus saving time.
Patient Hydraulic Lift Lift actions are operated with simple manual controls, the Patient Hoist lift is easy to handle and maintain while providing powerful healthcare options. Hydraulic pumps provide a low-cost lifting option while allowing caregivers to easily transfer patients.

Manual Hydraulic Patient Lift For Home Patient Hoist Lift Features:

1. It is suitable for patients who are in bed for a long time and have inconvenient movements or cannot move after surgery. It can be used in hospitals, nursing homes or at home when accompanied by a caregiver.
2. Four-point hanger allows you to live as safely and comfortably as possible. Easily transfer from bed to wheelchair, recliner or shower chair, or from sofa to bed, or even from floor. Large sling size to accommodate patients of all sizes, sturdy and easy to hang up and take off. Slings are basic standard slings, if you need additional slings, you will need to order additional slings.
3. Manual hydraulic lifting device, a wider range. Up and down adjustment with switch.
4. The maximum load capacity is 150kg. The height range allows lifting from floors and high surfaces.
5. Padded rotating rod can rotate 360 degrees for added comfort and convenience.
6. The main frame is made of high strength steel with plastic-sprayed powder surface. Curved integral lifting arm improves strength and head space.
7. Front wheels are 3-inch universal wheels and rear brake wheels are 4-inch.
8. Footstool legs can vary the width of the leg extension and can be easily inserted under the bed or wheelchair.

9. To provide maximum space for the user, the lift is designed to ensure that it can be easily folded and unfolded without tools. Easy to carry on the car, no secondary installation, ready to use




  Lifting handle                                  Adjustable foot pedal                                            Release handel

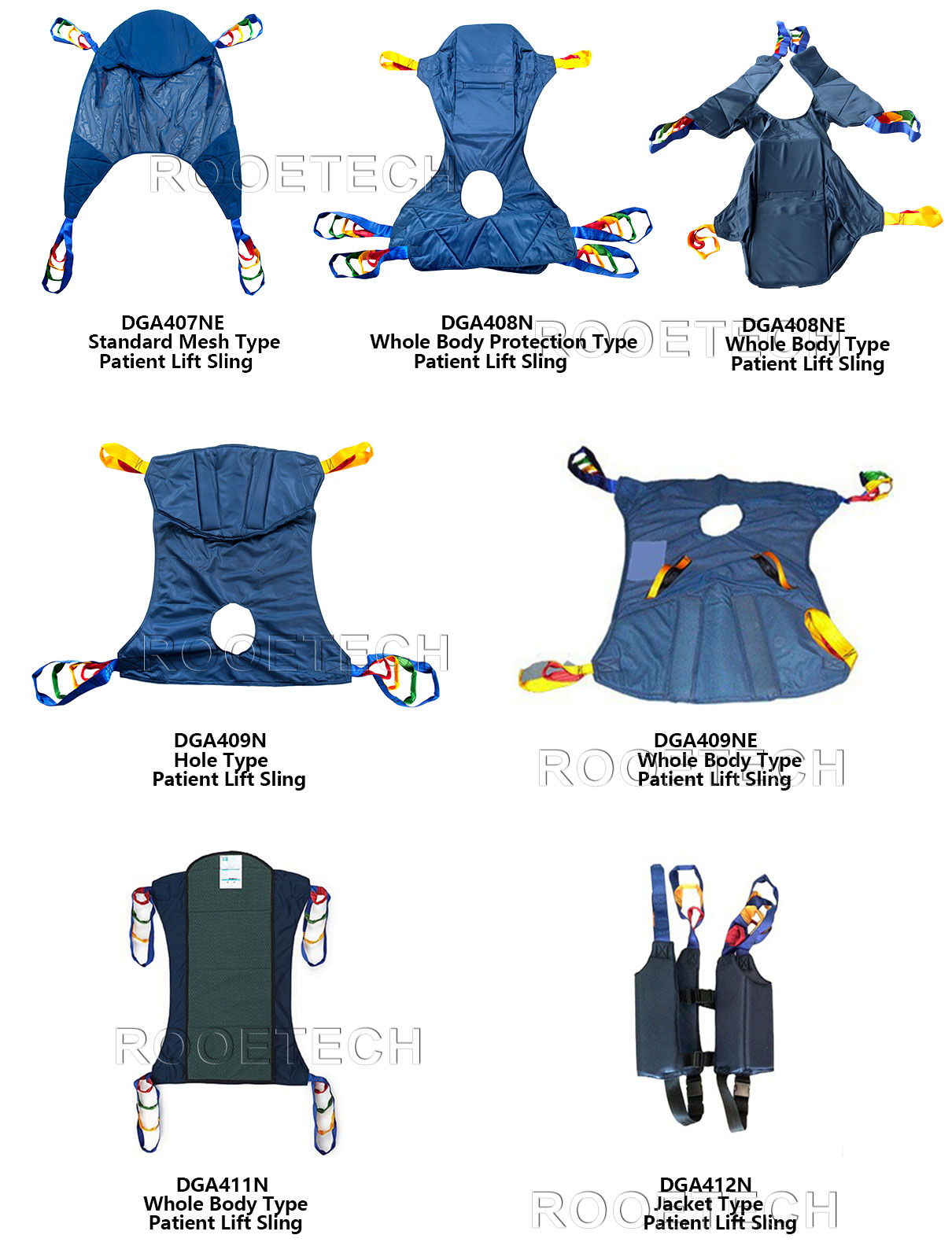

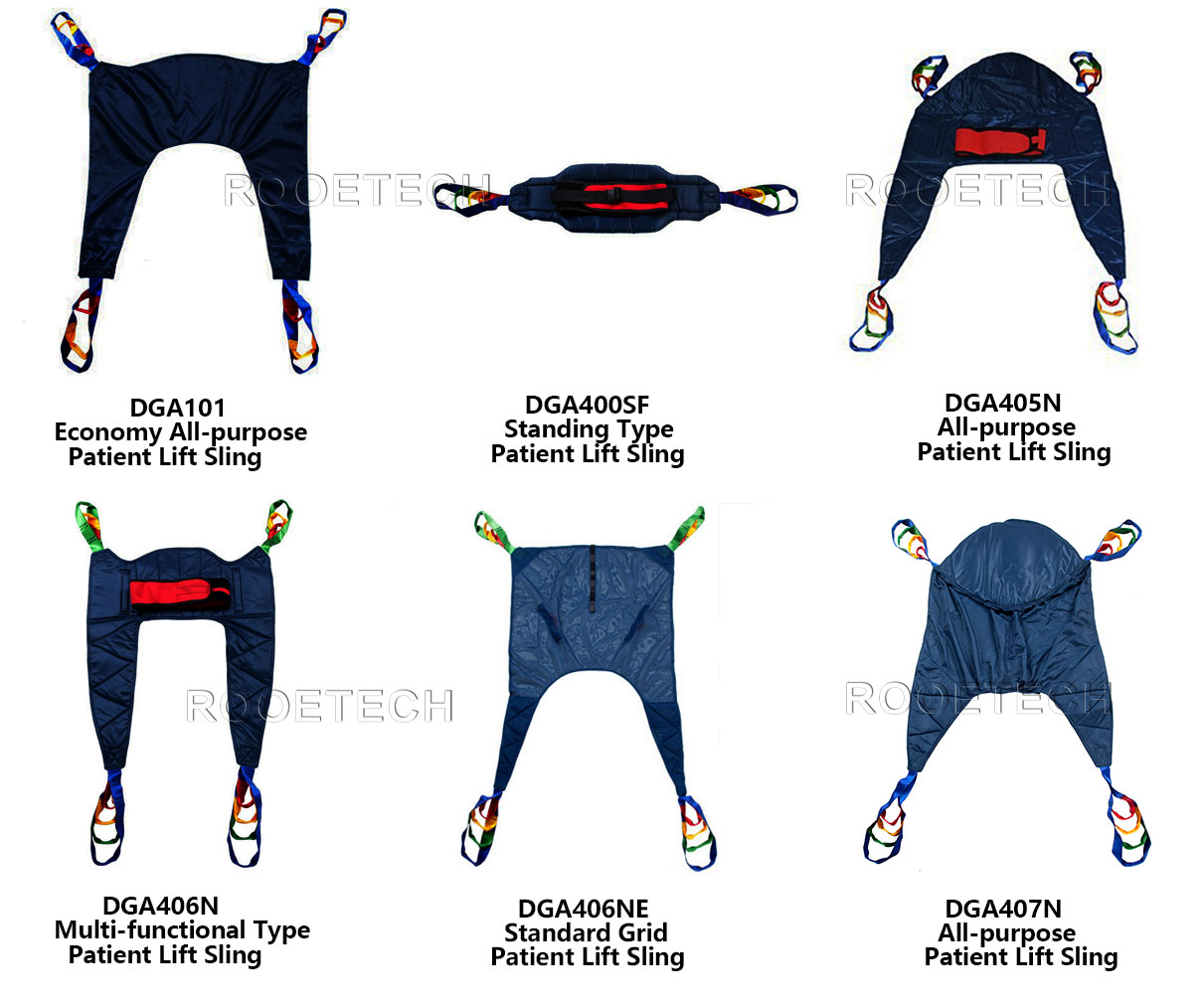

Optional Sling:

manual patient lift,manual hydraulic patient lift,patient lift for home,patient hydraulic lift,patient hoist lift

manual patient lift,manual hydraulic patient lift,patient lift for home,patient hydraulic lift,patient hoist lift


ModelDG100
Frame material:Strong steel frame
Coating:Powder coating
Front caster:3"
Rear caster4" with brake
Controller:Hand lift : up and down
Switch:With emergency lifting stop switch
Main Parameter
Arm Length990mm
Leg Length1190mm
Overall Width:590mm
Base Open Width860mm
Hook Height950-1650mm
Push Handle Height1140mm
Base Clearance115mm
Weight Capacity:150kg
×
