AOT-DT-100 Operating Room Pendant Rotary Endoscopy Pendant With Suspension Display AOT-DT-100 Operating Room Pendant Rotary Endoscopy Pendant With Suspension Display

The endoscope center pendant is designed to minimize tripping hazards in the operating room and improve workflow, thereby maximizing surgical work space. The display does not drift over time - while still allowing flexibility to move to a variety of locations.

Quantity:
Share this:
  • Product Description
  • Parameter

Operating Room Pendant Rotary Endoscopy Pendant With Suspension Display Features:

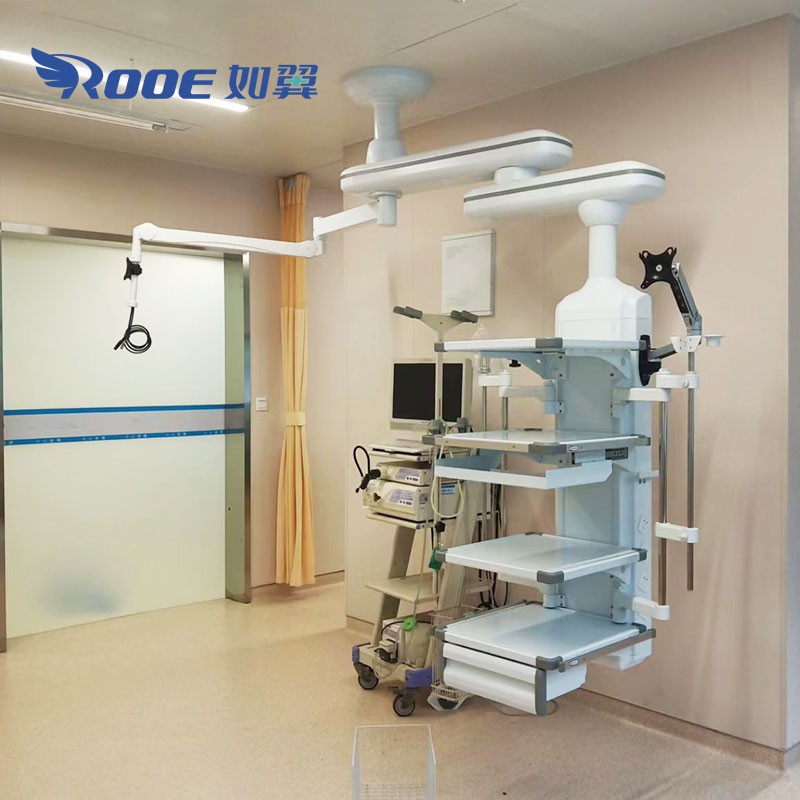

The Endoscope center ceiling pendant of endoscopy is a basic equipment designed for endoscopy and related treatment. It is used to carry endoscopy instruments, displays and other equipment to facilitate its rapid movement and positioning. At the same time, it provides air pump, power supply, video and communication interfaces for the equipment, and is equipped with cables and pipelines. Make the operating environment in order.

operating room pendant,rotary pendant,endoscopy pendant

1. Divided into equipment pendantand display pendant.

2. Integrate gas, power supply, light and integrated screen on the ceiling bracket.

3. Gas terminal provides oxygen, negative pressure suction and other medical gas output, electrical terminal provides AC power output. Electrical separation to ensure the safety of equipment.

operating room pendant,rotary pendant,endoscopy pendant

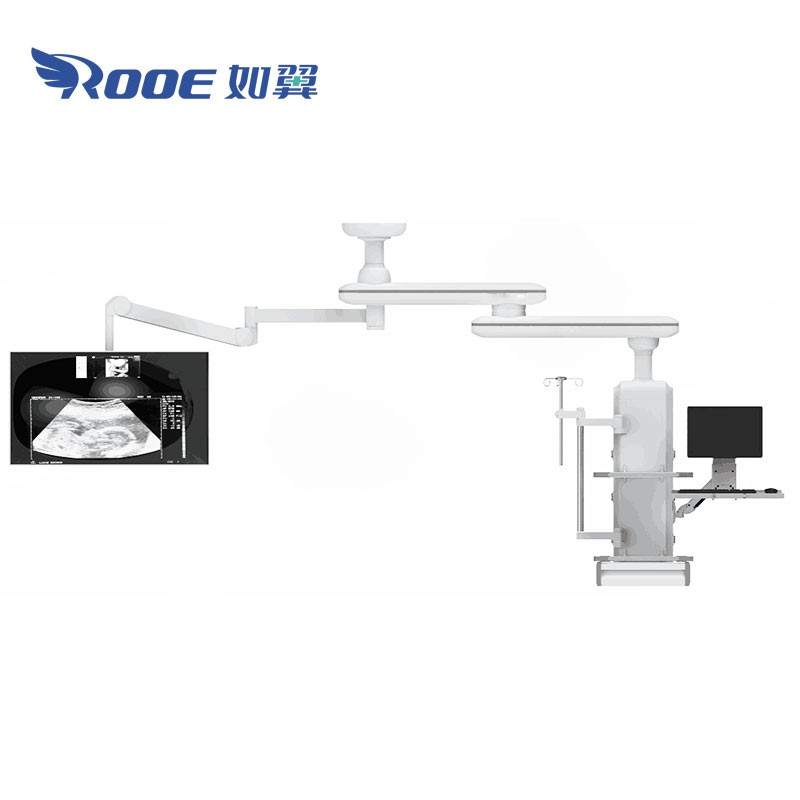

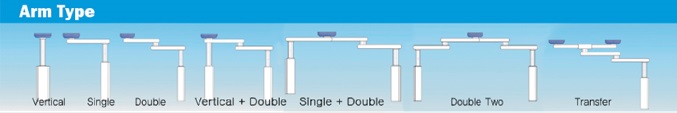

4. Single arm ceiling pendantor double arm ceiling pendant can be selected, electric lifting function, etc., compatible with operating rooms of different sizes.

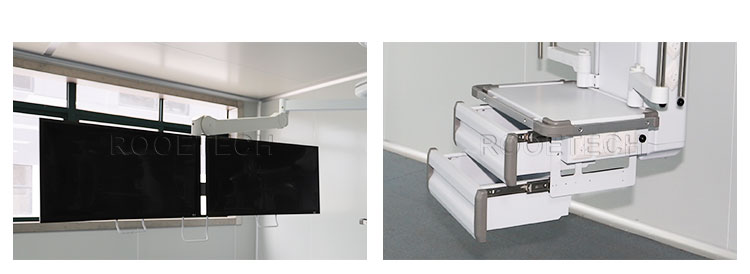

5. Display ceiling pendantbearing strong, can choose a single screen display frame or customized multi-screen display frame.

6. Different colors and shapes of gas interfaces to prevent wrong connections.

7. The tray can be adjusted according to the need of the height, silicone anti-collision design, drawer for automatic suction.

operating room pendant,rotary pendant,endoscopy pendant

8. Equipped with mechanical damping and gas double brake heavy brake device, so that the equipment does not drift during use.

9. Two IV poles can be moved with the tower to increase nursing support.



AOT-DT-100

Working power

AC220V 50Hz

Electrical box length

1200mm

Material

High-strength aluminum alloy

Surface treatment

Electrophoresis and powder coating

Standard Gas Outlets

O2*2, VAC*2, AIR*1, CO2*1

Tray

3 pcs

Sockets

8pcs (220V/10A) and one socket special socket for high-frequency electrosurgical unit

Grounding Terminal

2pcs

Network interface

 RJ45 1 pc

Drawer

1 pcs

Injection pump rack and infusion pump rack

2 sets

Storage container

1pc

Net load

250KG

Single tray net load

80kg

adjustable endoscope hanger

which can hang 2 endoscopes, the hanger can be adjusted in height, and can be adjusted by rotating left and right

Dual Articulating Heavy Duty Monitor Arm

1 set,Activity range: (radius) ≥ 1600mm

Left and right rotation angle ≧340 degrees

up and down rotation angle -15 degrees~+15 degrees

monitor up and down range: 1060mm


×
