A tourniquet can be defined as a constricting or compressing device used to control arterial and venous blood flow to a portion of an extremity for a period of time. Pressure is applied circumferentially around a portion of a limb at a desired location; this pressure is transferred to the walls of blood vessels, causing them to become temporarily occluded or restricted. In surgical settings, a tourniquet is used to occlude arterial blood flow following exsanguination to produce a relatively bloodless operative field and to minimize blood loss. In emergency settings, a tourniquet is used stop traumatic bleeding such that medical care can be provided in time before the injured person bleeds out.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Medical Automatic Tourniquet Rapid Hemostasis Description:

Automatic tourniquet mainly compresses blood vessels by inflating the hemostatic cuff to achieve the purpose of hemostasis. Medical tourniquet is used to impede blood flow to extremities during limb surgery (not suitable for rapid femoral artery hemostasis). The surgical Tourniquet Machine is made of high quality materials with touch screen and excellent performance. The Digital Tourniquet body is a lightweight and flexible instrument suitable for all kinds of equipment for most people.

Medical Automatic Tourniquet Surgical Tourniquet Machine Features:

Safety
Battery back-up, visual and audio alarms, positive locking connectors, and other proprietary features help ensure patient safety.
Reliability
Advanced microprocessor technology includes self-diagnostic tests and continuous monitoring for consistently dependable performance.
Convenience
Fast inflation and deflation save time for busy operating room personnel. Ergonomic contours facilitate handling and operation for positive, confident control.
High Quality Inflation
The Tourniquet System addresses important concerns in medical tourniquet system design, providing the features that healthcare facilities demand for safety, reliability and convenience.
Patient Safety
Dual cuffs provide precise, independent monitoring and performance for bilateral or Bier Block procedures.
Accurate pressure monitoring for patient safety and confidence.
User Friendly
Large LED display is adjustable and easy to read, even from a distance.
Simple setup includes user-defined default pressure and time settings.
Lightweight, portable unit can be mounted on an I.V. pole or placed on a table.

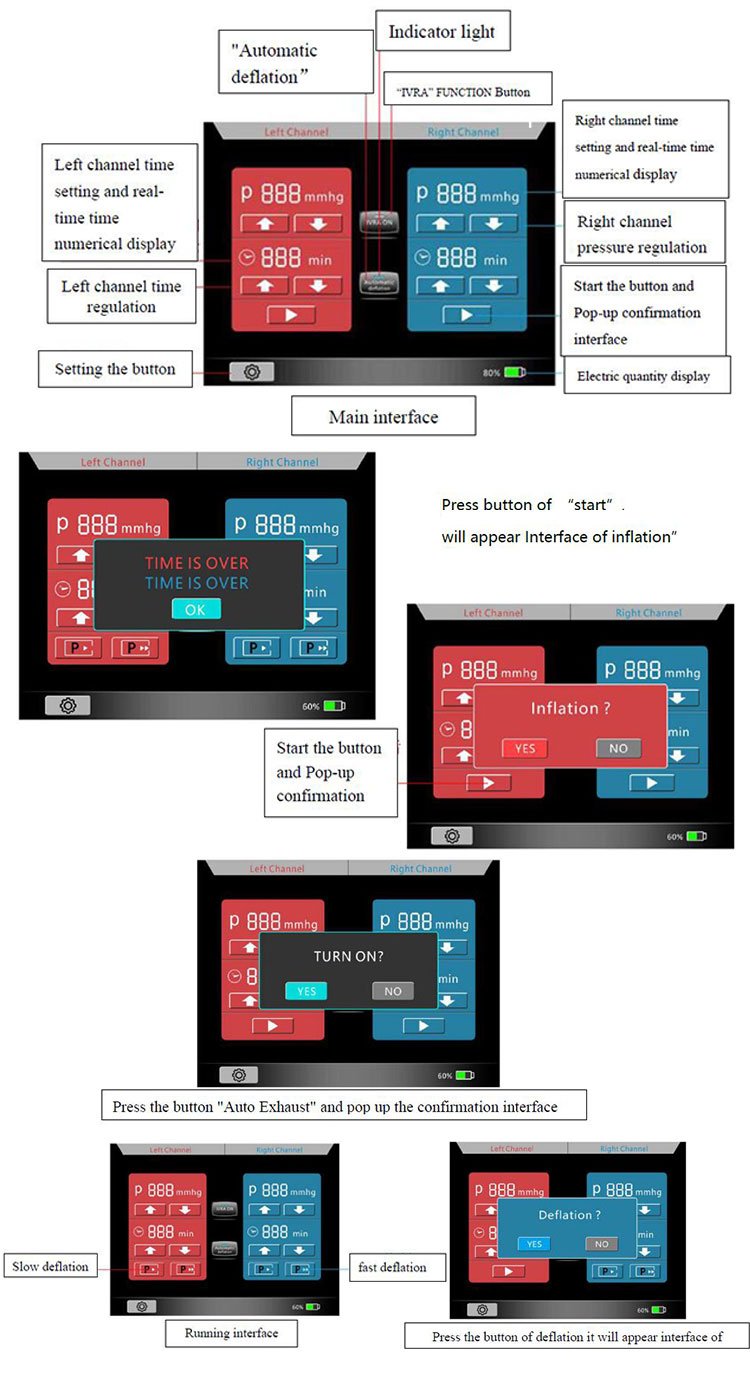

automatic tourniquet,medical tourniquet,rapid hemostasis,digital tourniquet,surgical tourniquet machine

automatic tourniquet,medical tourniquet,rapid hemostasis,digital tourniquet,surgical tourniquet machine

automatic tourniquet,medical tourniquet,rapid hemostasis,digital tourniquet,surgical tourniquet machine

ModelATS-103
Number of Ports:Dual Port
Mounting options:Table or Moving bracket
Battery Type and Duration :Lithiumlon / 4 hrs
6 pcs of cuffs:12inch 18inch 34inch(each size 2 pcs)
Working Conditions:
a) Ambient temperature:5 ℃-40 ℃
b) Relative Humidity:≤ 85%
c) Atmospheric Pressure:860hPa- 1060hpa
d)PowerSupply :AC100-240V 50Hz/60Hz
e)rated input power:90VA

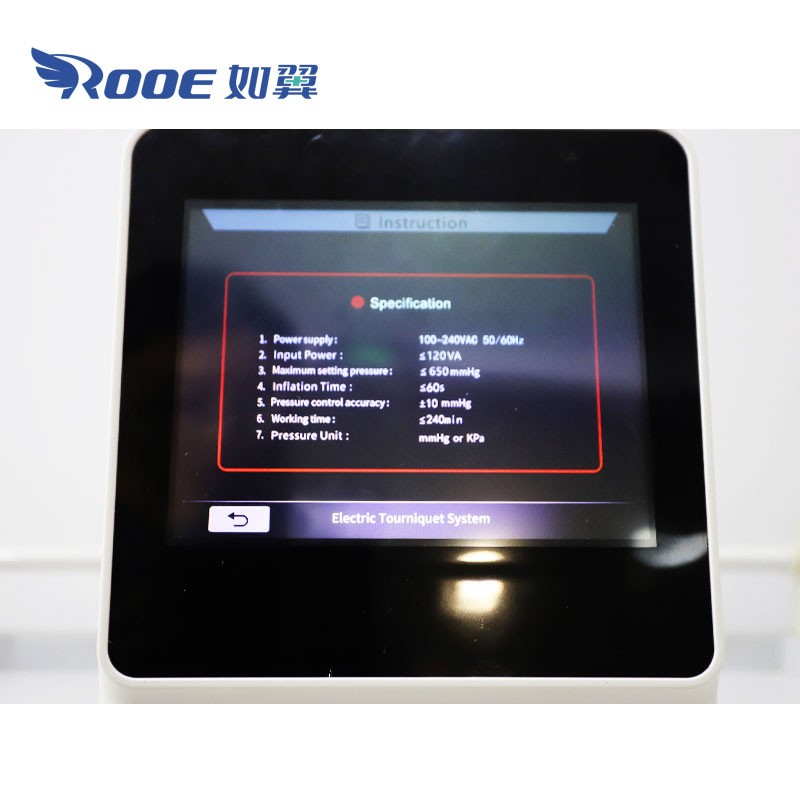

Performance
The pressure range of the rated output air pressure:30 mmHg to 650 mmHg;
Inflation time at maximum rated air pressure (from pressure less than30 mmHg):≤ 60 s
Work noise:≤ 80dB
Pressure control:± 10 mmHg(Adjustable)
Continuous:240min
Package:620*620*430mm, 13KGS
×
