HBXHZ-90P Mobile Neonate Bilirubin Phototherapy Lamp HBXHZ-90P Mobile Neonate Bilirubin Phototherapy Lamp

Blue fluorescent tube
Timer to count phototherapy time
Angle of lamp module can be adjusted (for mobile model)
Height of lamp module can be adjusted (for mobile model)

Quantity:
Share this:
  • Product Description

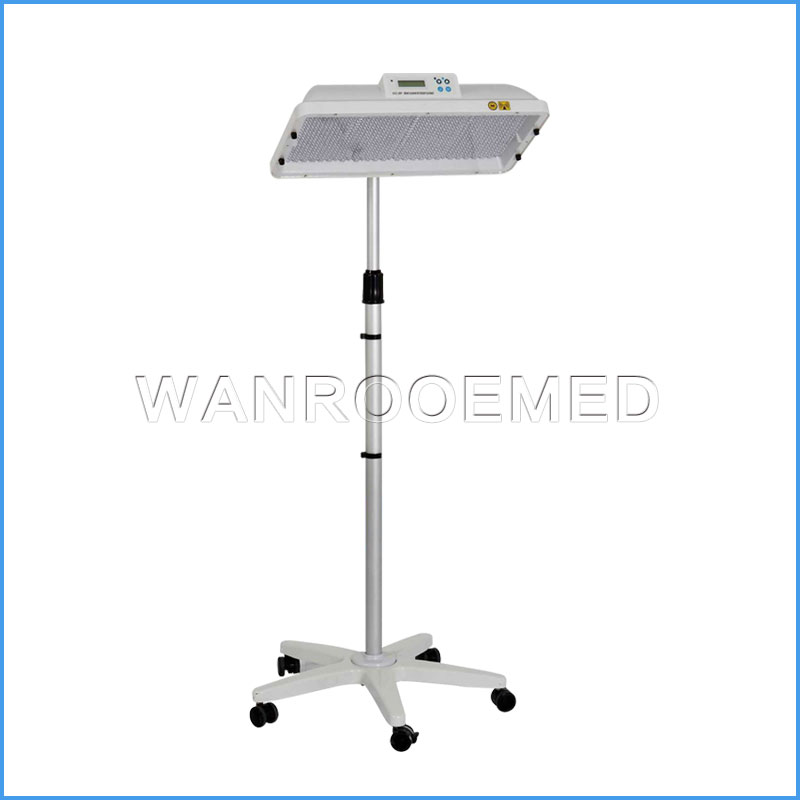

HBXHZ-90P Mobile Neonate Bilirubin Phototherapy Lamp

Brief Introduction

Blue LED as major light source and mixed with yellow LED to soften the irradiating light;

Intensive phototherapy equipment, large effective treatment area, meets AAP Guidelines for intensive phototherapy;

The irradiation intensity can be adjusted into high or low levels;

Angle of lamp module can be adjusted;

Radiant light equipped with fan cooling which ensure a low thermal radiation; Optional for infant incubator and infant radiant warmer;

Vertical height and horizontal position of lamp module can be adjusted;

With the timer and lockable wheels.

Standard Configuration:

Lamp module and mobile stand

Specification:

1:1 Power supply: AC220V-230V/50Hz or AC110-120V/50-60Hz, 75VA

Light source: Blue and yellow LED

Dominant wavelength range of blue light: 450-470nm

Dominant wavelength range of yellow light: 585-595nm

Effective surface area: 50cmx25cm

Life time of LED: 20000hrs

General bilirubin radiation of the effective surface area (Irradiation distance 30 cm): High irradiance mode: L 3.6 mW/cm2; Low irradiance mode: L 2 mW/cm2;

Uniformity of the total irradiance for bilirubin: > 0.4 a Adjusting range for the height of lamp module: 1350mm-1680mm

Adjust range for the radiation angle of lamp module: 0-60° up from horizontal and can be locked

Built-in timer range: 0-99999.9 hrs

Working noise: 50dB ( A )

Operating request:

Temperature range: 15°C -35°C O Relative humidity: 30%-75%RH  Atmospheric pressure : 700hPa 1060hPa

Product Packaging:

Package: each unit is packed as one carton

 Size:1375 mmx685 mmx260 mm

Gross Weight: 14.5 Kg


×
