Phototherapy is treatment with a special type of light (not sunlight). It's sometimes used to treat newborn jaundice by lowering the bilirubin levels in your baby's blood through a process called photo-oxidation. Photo-oxidation adds oxygen to the bilirubin so it dissolves easily in water.
Product Introduction:
Mattress cover configuration;
LCD display indicates the accumulative running time and the current working time;
Light switch;
Two modes of current working time: count up and count down.
Standard Configuration:

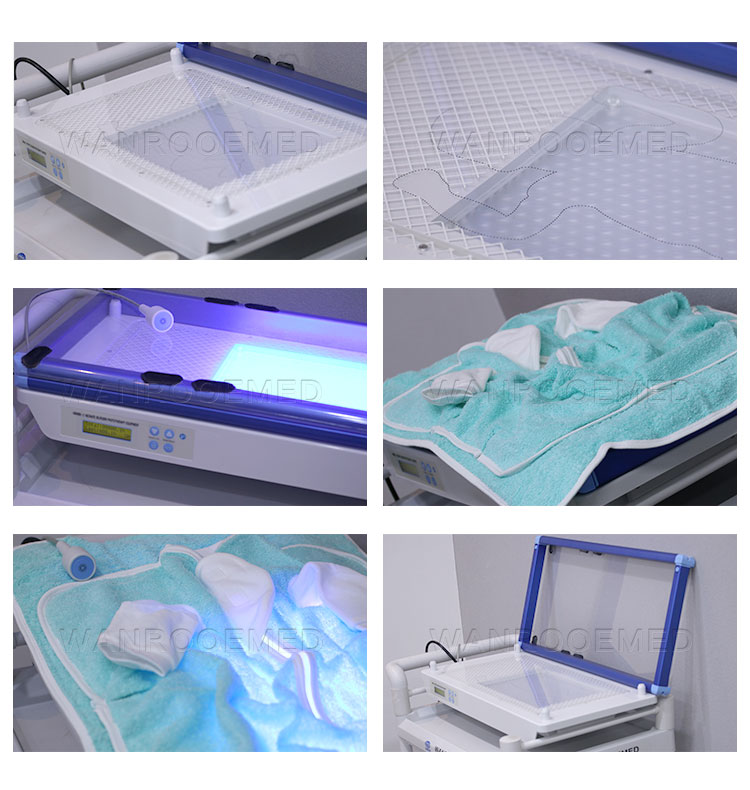

The bed (including the radiant light system, timer and light switch), bracket and mattress cover
Specification:
Power requirement: AC220V-230V/50Hz, 75VA (HBNBB-I)
AC220V-230V/50Hz, 40VA (HBNBB-II)
Light resource: LED blue light (HBNBB-I)
Fluorescent lamp (HBNBB-II)
Lifetime of LED: 20000hrs
Lifetime of the Fluorescent lamp: 2000hrs
The total irradiance for bilirubin on the effective surface area:
3.0mW/cm2 (HBNBB-I)
2.8mW/cm2 (HBNBB-II)
Average value general bilirubin radiation of on the effective surface area:
2.6mW/cm2 (HBNBB-I)
2.0mW/cm2 (HBNBB-II)
Uniformity of the total irradiance for bilirubin: > 0.4
Dominant wavelength of blue light: 400-550nm
Max. Load of mattress: 10kg
Indication range of accumulative running time for lamp: 0-99999.9hrs
Indication range of current running time for lamp: 0-999.9 hrs
Mode of time: count up and count down
Working noise: 50dB (A)
Environmental temperature:
Operating range: 20 °C -30°C
Ambient air movement rate: 0.3m/s
