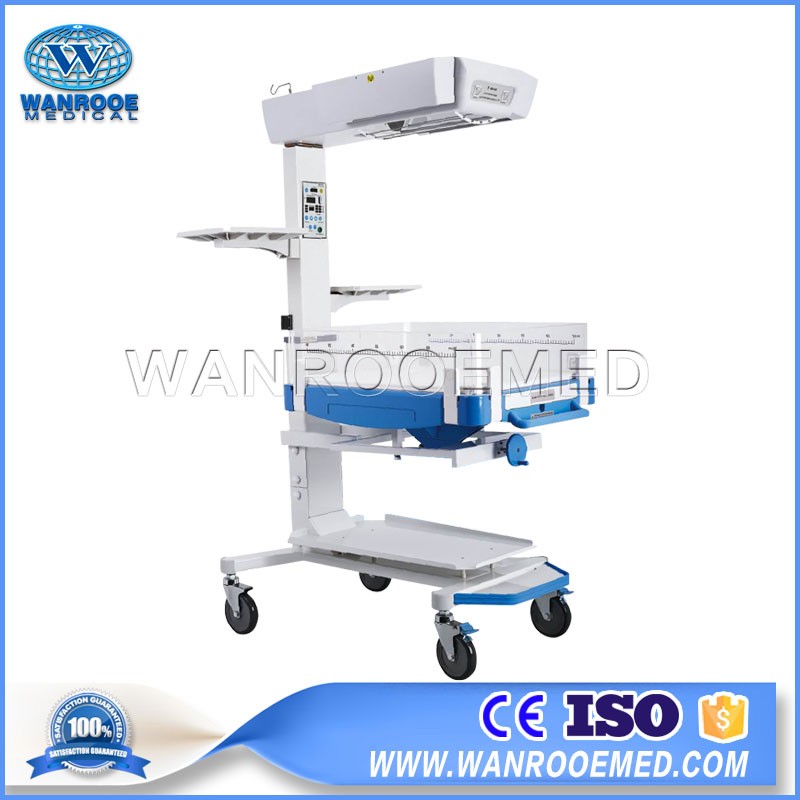

HBHKN-93/ HBHKN-93A / HBHKN-93B Hospital Medical Baby Care Newborn Infant Radiant Warmer

Standard configuration
HBHKN-93: the warmer module, bassinet, main column, stand, controller, I.V. Pole and tray.
HBHKN-93B: based on HBHKN-93, added with the phototherapy unit (with LED bulbs)
HBHKN-93A: based on HBHKN-93B, added with the Breath resuscitation bag, infant head fixing unit.
All of above three models can be configured with vertical height adjustment stand.
Specification
Power supply: AC220-230V/50Hz
Maximum Power Output: 700W (HBHKN-93 for fixed stand)
750W (HBHKN-93 for VHA stand)
750W (HBHKZ-93A/HBHKN-93B for fixed stand)
800W (HBHKN-93A/HBHKN-93B for VHA stand)
Mode of control: Pre-warm mode control, manual mode control and baby mode controlled by micro-computer
Baby mode temperature control range :34.5-37.5℃
Temperature sensor display range: 5℃-65℃
Accuracy of skin temperature sensor: ≤0.3℃
Deviation between the measure by the skin temperature sensor and control temperature: ≤0.5℃
Temperature uniformity of mattress: ≤2℃
Angle of warmer module: 0°;30°;60° for two ways;
Inclination of the bassinet: ±10°;
APGAR timer: it will give sound when the unit tones at1', 5 ', 10';
Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, power failure alarm, setting alarm, checking alarm and so on.
Max. bilirubin radiation on the mattress effective range :≥1000uW/cm2(HBHKN-93B,HBHKN-93A)
Bilirubin uniformity of radiating on the mattress effective range:>0.4(HBHKN-93A/HBHKN93B)
Wave length of blue light: 420-470nm
Environmental temperature
Operating range: 18℃-30℃
Ambient air movement rate: ≤0.3m/s
