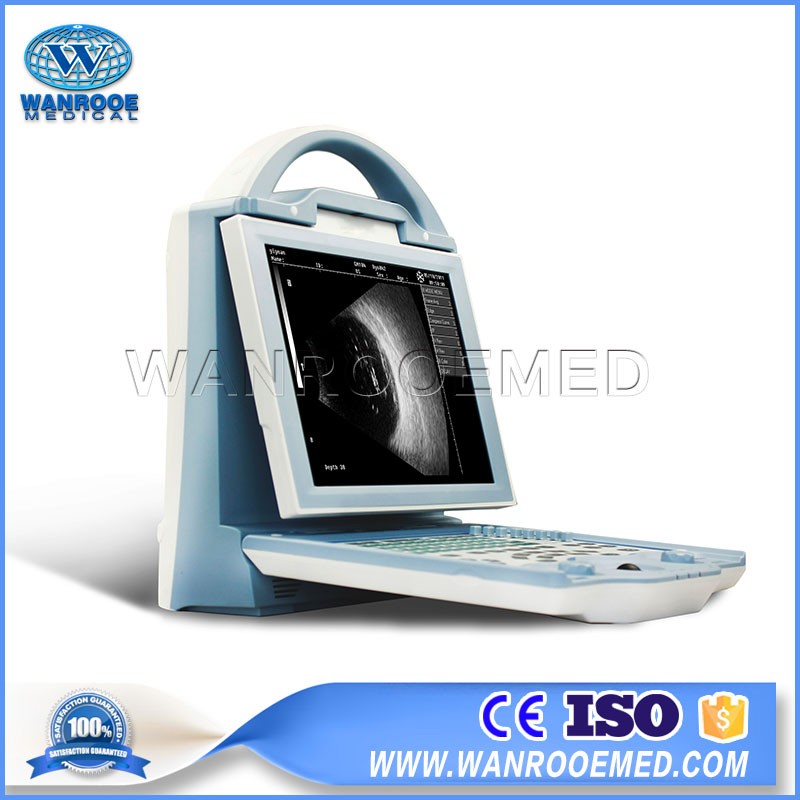

US101 10.4 Inch Notebook Portable Ophthalmic A/B Scan Ultrasound Machine
US101 10.4 Inch Notebook Portable Ophthalmic A/B Scan Ultrasound Machine

US101 10.4 Inch Notebook Portable Ophthalmic A/B Scan Ultrasound Machine US101 10.4 Inch Notebook Portable Ophthalmic A/B Scan Ultrasound Machine

A-scan Ultrasound biometry, also referred to as just A-scan, utilizes an ultrasound device for diagnostic testing in Opthalmology practices. This device can determine the length of the eye and can be useful in diagnosing common sight disorders. A-scans are also extremely beneficial in cataract surgeries, as they enable the Opthalmologist to determine the power of the intraocular lens (IOL) needed for the artificial implant. Another use for A-scans is diagnosing and measuring masses in the eyes.

Quantity:
Share this:
  • Product Description

General parameters:

1.Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system, make the machine more reliable.

2.10" high resolution CRT display monitor, image clear and exquisite.

3.Menu operation, Language: Chinese/English switchable.

4.Double probe sockets: A mode probe: 10MHz, imported probe with fixation light; B mode probe: 10MHz, imported transducer.

5.Preset items

A.System setting (hospital name, mode selection, date, time, format, probe protection time, help, keyboard sound etc.)

B.IOL setting

C.Network setting, DICOM3.0

D.Password setting

E.Software upgrade setting

6.Diplay: B, B/B,4B,B/A, A; A single-point measurement(under A mode), five-point measurement(under A mode)

7.Gains range: 0--120dB

8.Dynamic range: 30-100dB, visual and adjustable

9.Gray: 256

10.Intelligent TGC adjustment: 8

11 Internal D disk: 4GB, save mass images, reports, move clips, etc.

12 Report function: printscreen, IOL report, patient report with picture, etc.

13 Two USB ports, support for large capacity USB disk (support for document management/software upgrades/one-key storage), and laser printer directly print various image and report.

14 Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.

15 DICOM3.0 network port, realizing network transmission easily.

16 Power supply :AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.

17 Net weight.: 8kg

18 Dimension:400*280*325mm(length x width x height).

A scan parameter

1.measuring range:A single-point measurement:0-36mm; A five-point measurement: 0-72mm(including delayed depth)

2.Measuring accuracy: ±0.05mm

3.Measuring parameter: ACD, LENS, AXL, Vitreous Length, corneal thickness(immersion mode)

4.Eye mode: normal/aphakia/dense cataract/various IOL eyes

5.Measuring Mode: Contact and Immersion, automatical and manual

6.Calculation: std. deviation, average, automatical measuring averages of 8 groups, results correctable

7.Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).

8. IOL Formula: SRK-II, SRT-T, BINKHOST,HOLLADAY, HOFFER-Q, HAIGIS, two random items of them can be displayed relatively. Calculate IOL, DEM, DAM, REEF, etc. And long term  save 100 groups of measurement result of A scan.

 9.A single point measurement

Magnification:1.0、2.0、4.0;

Display Depth:0~36mm , delayed depth: 0--36mm

B scan parameter

1. Scan mode:High accuracy stepping Sector , motor-powered

2.Scan Angle:53°

3. Display Depth:0~88mm(incl.delayed depth)

4.Delayed depth: 25--32mm

5. Gray:256

6. Frame frequency:30frames/s;

7.depth seletion:8

8. Frame correlation: 4

9. Edge enhancement:4

10. Compression Curve 8

11 Post-processing 8

12.Eight Pseudo colors

13.Cine loop: 256 frames, support to measurement the playback image.

14 Disk management

15  General Measurement(various callipers),distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram view, sectional view, etc.

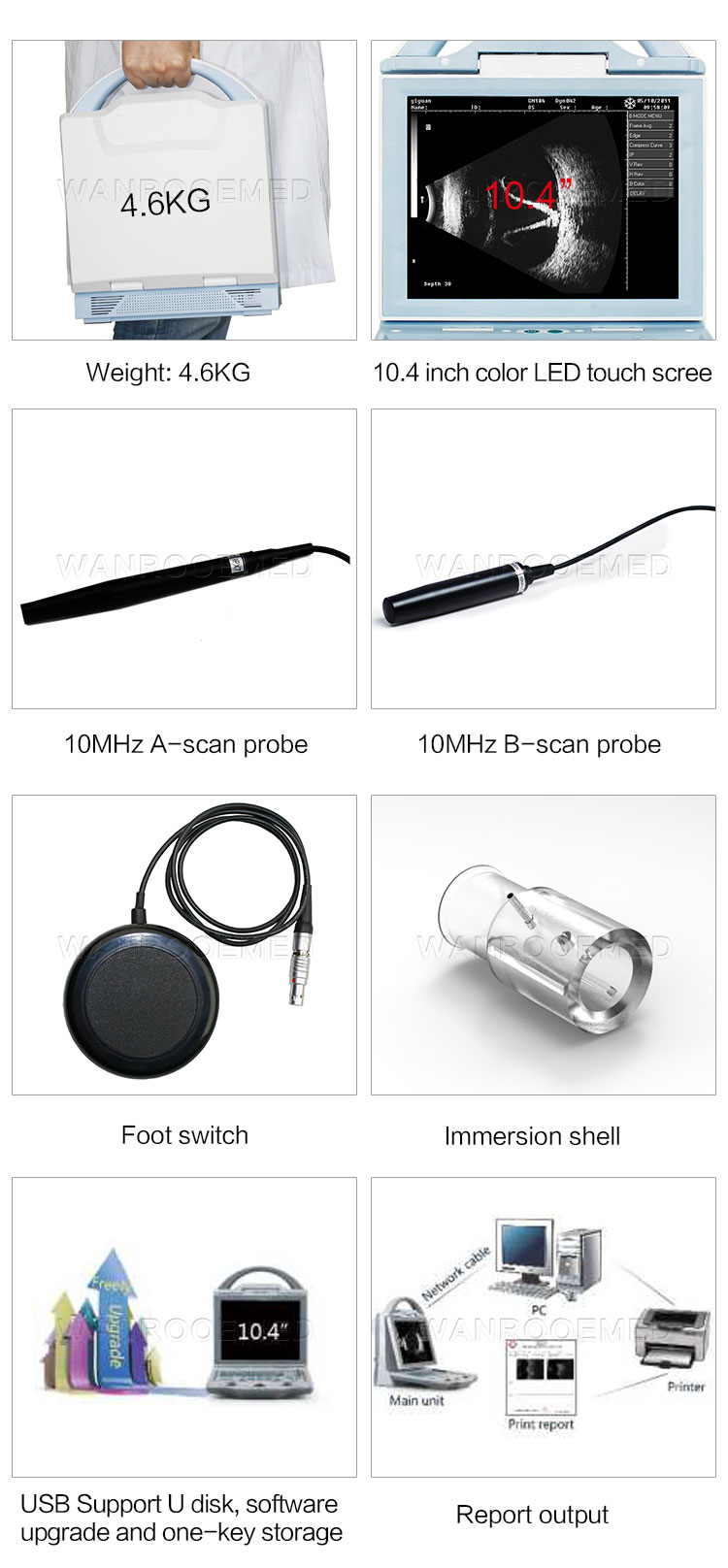

Standard configuration:

1.Main unit: 1pc

2.B probe, 10MHz mechanical : 1 pc

3.A probe, 10MHz : 1 pc

Optional configuration:

1.Trolley

2.Foot switch: 1pc

3.Battery: 1pc

4.Immersion Shell: 1pc

5.Video Recorder: 1pc
