LS-HG Series Vertical Automatic Steam Sterilizer Hospital Laboratory Autoclave

LS-HG Series Vertical Automatic Steam Sterilizer Hospital Laboratory Autoclave LS-HG Series Vertical Automatic Steam Sterilizer Hospital Laboratory Autoclave

The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantages of effective sterilization, convenient operation, safe, less electricity consuming and cheap, It is an ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture medium etc.

Quantity:
Share this:
  • Product Description
  • Parameter

Vertical Automatic Steam Sterilizer Hospital Laboratory Autoclave Features:

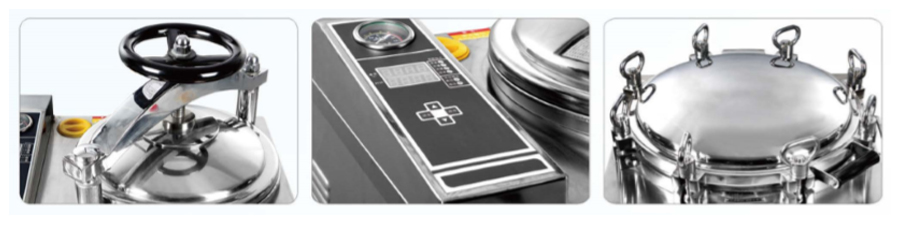

1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status, touch of key
6.Over temperature&over pressure auto-protection
7.Steam-water inner circulation system:no steam discharge, and the environment for sterilizing will be clean and dry
8.Self-inflating type seal
9.Safe protection of water lacking
10.The drying system is optional,which can be equipped according to the customers' request
11.Automatically shut off with beep reminding after sterilization
12.With two stainless steel sterilizing baskets

Automatic Steam Sterilizer, Hospital Autoclave, Vertical Steam Sterilizer, Laboratory Autoclave, Table Top Sterilizer

Model technical dataLS-35HGLS-50HGLS-75HGLS-100HG
Chamber volume35L(φ318*450)mm50L(φ340*550)mm75L(φ400*600)mm100L(φ440*650)mm
working pressure0.22MPa
Working temperature134℃
Max working pressure0.23 Mpa
Heat average≤±1℃
Timer0-99min or 0-99 hour 59 min
Temperature adjustment0-134℃
Power2.5KW/AC220V.50Hz3KW/AC220V.50Hz4.5KW /AC220V.50Hz
Overall dimension600*410*1030(mm)650*410*1140(mm)690*470*1140(mm)730*510*1270(mm)
Transport dimension730*500*1170(mm)730*500*1290(mm)760*550*1290(mm)820*600*1380(mm)
G.W/N.W96Kg/77Kg102Kg/83Kg120Kg/98Kg135/110Kg
×
