The medium negative pressure and large flow suction device designed by integrated circuit and sensor control technology is suitable for the negative pressure drainage of patients' body surface wounds and ulcer wounds treated by medical institutions after matching with special dressing, and also suitable for continuous postoperative drainage of patients.

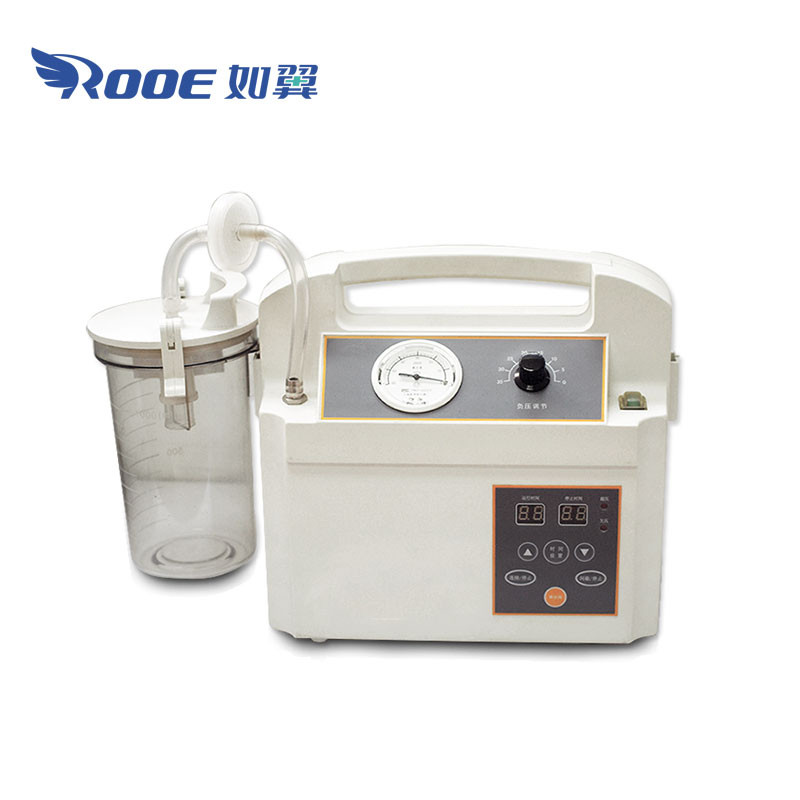

Continuous/Intermittent Electric Suction Machine With Single Bottle Features:
1. The use of oil-free lubricating electromagnetic pump as a negative pressure source, attracting large flow, very low noise, no oil fog pollution environment;
2. The negative pressure value can be set arbitrarily according to the need, and the high precision pressure sensing element makes the negative pressure value constant and reliable;
3. Continuous/intermittent two modes of work, intermittent attraction time can be controlled;
4. Long life, can be a long time low noise continuous work;
5. Overflow protection device can prevent the suction of liquid into the intermediate pipeline; Buffer bottles can be added according to clinical needs.
6. The release valve is used to release the sudden rise of negative pressure in the pipeline to ensure use;
7. With undervoltage light prompt and overpressure acousto-light prompt device.
Specification | |
Model | SXT-5A Plus |
Max vacuum | ≥32KPa(240mmHg) |
Adjustable Vacumm Range | 2.5kPa(18.75mmHg)~Max.Vacuum |
Noise | ≤50dB(A) |
Operation mode: | continuous operation and intermittent operation |
Intermittent running time: | 5 minutes on /2 minutes off (default) or 1 to 15 minutes |
Flow Rate | ≥20L/min |
Power | AC 220V,50Hz |
Input power(VA) | 100 VA |
Storage bottle | 1000ml(PC) |
N.W.: | 6.6Kg |
G.W.: | 7.6Kg |
DIM | 45cm×20cm×32cm |
Package Size | 54.5cm×26cm×37.5cm |
