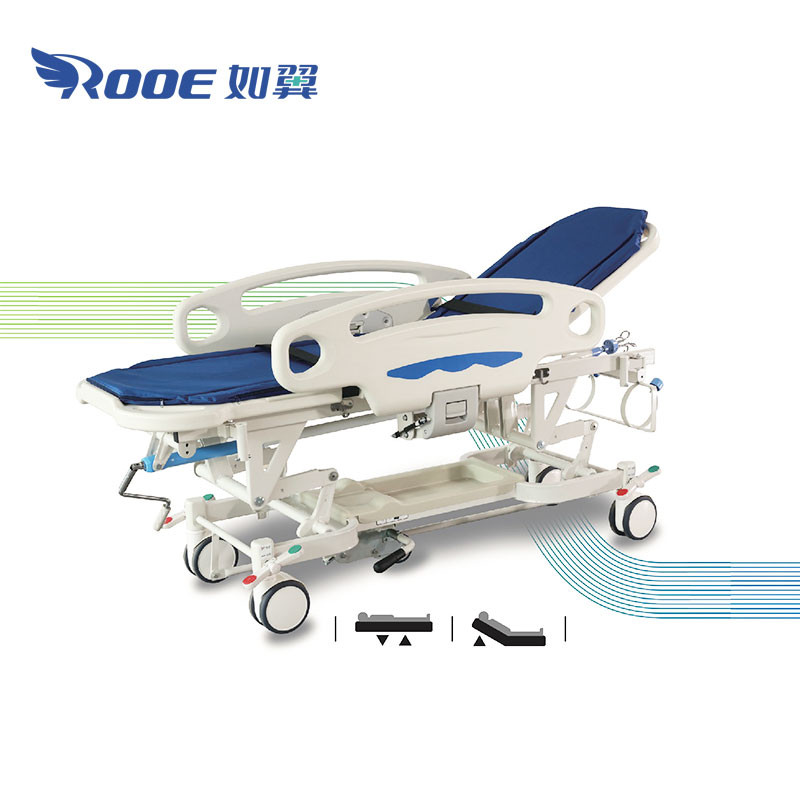

BD111 Plus Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts
BD111 Plus Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts

BD111 Plus Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts  BD111 Plus Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts

The transport stretcher uses an innovative design and incorporates unique features designed to help caregivers provide a more meaningful level of care to patients. The product is designed to meet customer needs and help improve healthcare efficiency.

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts Description:

This is a manual transfer stretcher. Handling increases the risk of injury to caregivers, and thanks to its user-centric design, Surgical Stretcher is easy to push and handle. Hospital Gurney has a fifth castor that helps with obstruction and shock absorption. From state-of-the-art mattress options to guardrail, patient safety and comfort are Paramount. Eye Stretcher guardrails cover most of the stretcher's length. They can be released easily from the sides of the stretcher when needed. Manual Transfer Carts offer a choice of two types of fences to meet the various needs of hospitals. The patient Cart has a concave case cover for storing oxygen bottles, and a single crank for height adjustment that turns the crank clockwise and counterclockwise to position the stretcher up and down, fully meeting medical functions and saving costs.

surgical stretcher,hospital gurney,eye stretcher,manual transfer carts,patient cart

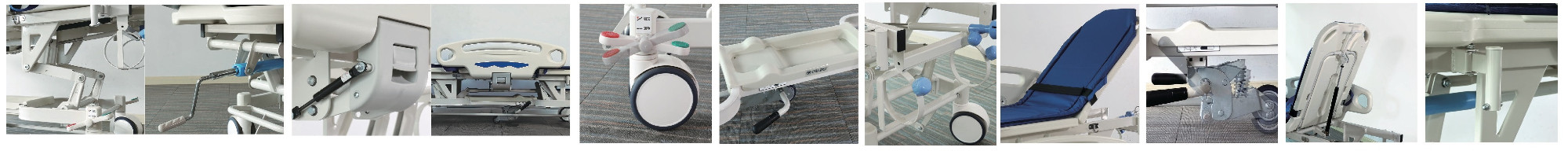

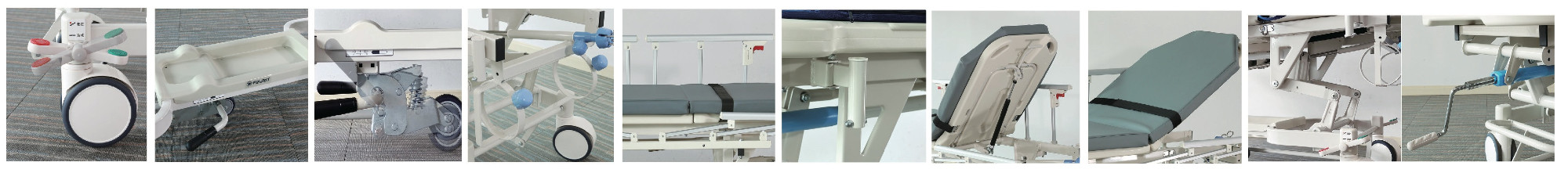

Surgical Stretcher&Hospital Gurney Eye Stretcher Manual Transfer Carts Features:

Casters

150mm in diameter, resin castors, with central locking pedals at four corners, which is convenient for medical staff to operate.

Base Cover

Base cover has two sections of different size and depth,multiple leaking holes, easy to use and clean, loading capacity 10kg.

 Fifth Round Center

The conversion of stretcher cart is easily realized  between ' straight' and " free' by operating the  lever easier to control the direction with' 'straight'.

Optional guardrail

1. Aluminum alloy guardrail

Luxury double liter aluminum alloy guardrail, with guardrail switch on the head side and foot side, which can meet different use needs.

2. New safety fence

The new satety guardral design is adopted. When the guardrall Is under stress, it cannat be opened. It can be pressed from the outside to the inside to open the guardrall, thereby efectively preventing the patent frorm misoperation from the inside. resulting in bed flling accidents, making it safer.

infusion stand socket

There are rotary infusion stand sockets at the front and back of the bed, which can be tumed out when in use and can be stored when not in use, which is convenient to use.

 Back lifting function

Operate the control handle to control themute gas spring, realize the lfting of the back plate, the angle is 0- 70°.

Hi-Low funtcion

The height of the bed can be adjusted up and down by hand crank to achieve a height of 510- 850mm.

Thicker mattress

The surface of the fabric is PU waterproof, easy to clean, with a thickness of 5 cm. It is more comfortable for patients to lie down during gastrointestinal endoscopy.

Oxygen cylinder storage rack

There is a horizontal storage rack for oxygen cylinders under the back panel,which can hold up to 7L oxygen cylinders.

surgical stretcher,hospital gurney,eye stretcher,manual transfer carts,patient cart

Specification

Size

Model

BD111 Plus

Length

1930mm

Width

645mm

Adjustable range

Backrest max upward angle

0~70°

Elevation(up/down)

510~850mm

Main material

Bed board, frame

Bed board -PP resin integrated molding;

Frame - Quality steel

guardrail

Aluminum alloy

The mattress

Surface material PU polyester (sitase);

The inner core material is polyammonia brew foam

castor

150 mm

Safe working load

170kg


×
