With its precision drive, intelligent speed control, multiple vibration damping, precise stopping and perfect safety protection, this stair lift chair creates an unparalleled smooth ride, allowing every user to feel unprecedented peace of mind and comfort when going up and down the stairs.

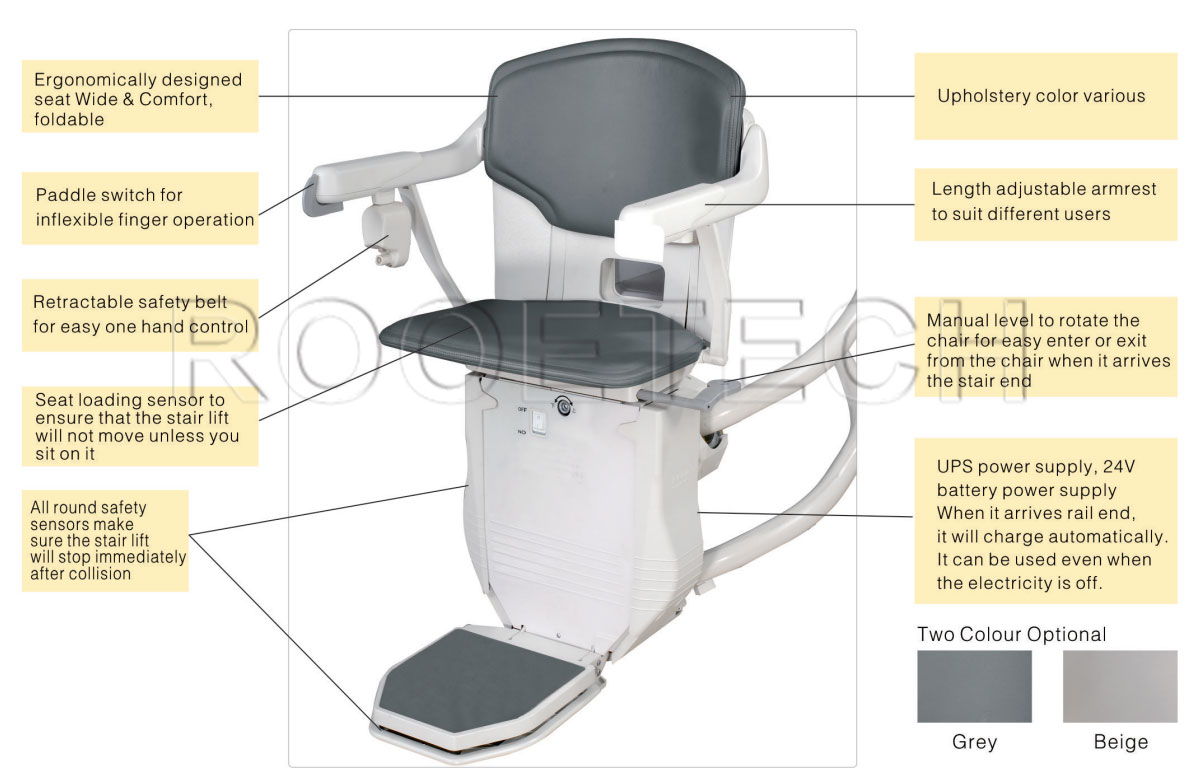

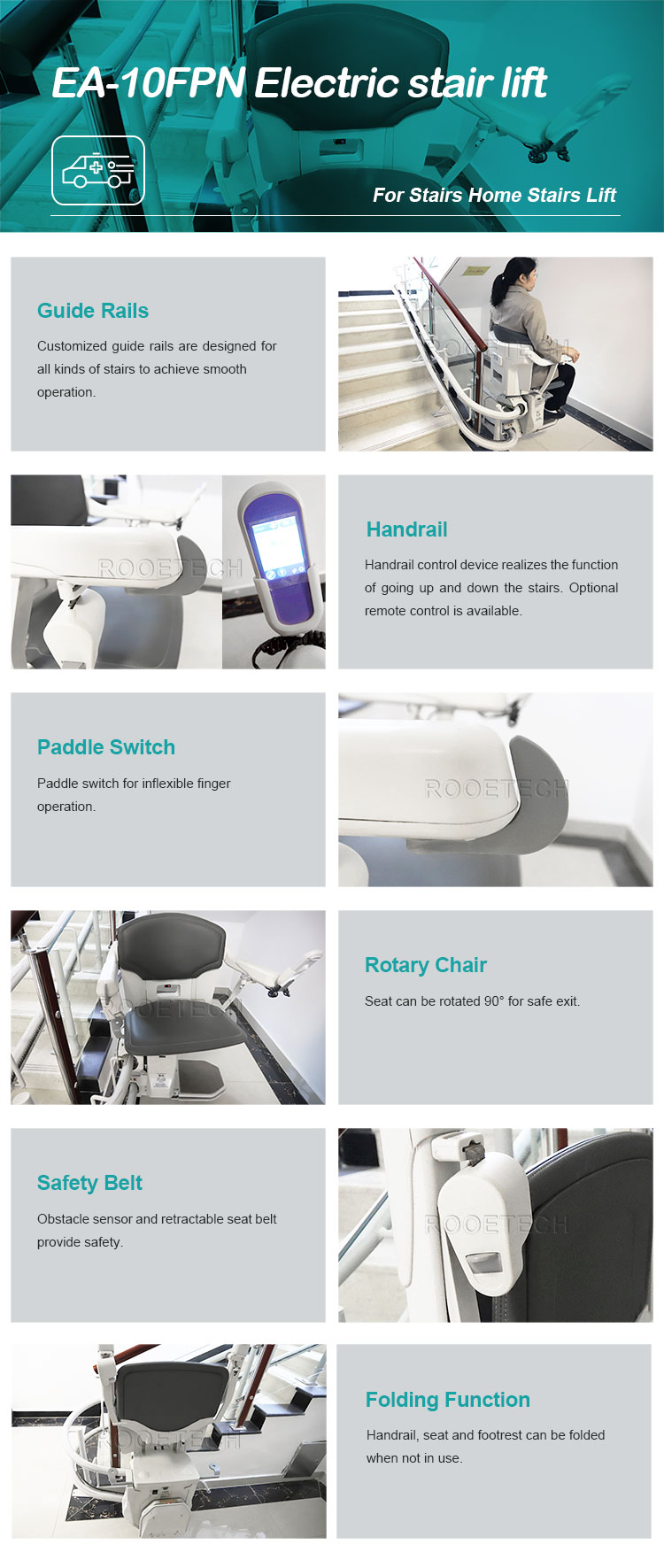

Elderly Stair Chair Lift For Outside Stairs Features:
1. Customized guide rails are designed for all kinds of stairs to achieve smooth operation.

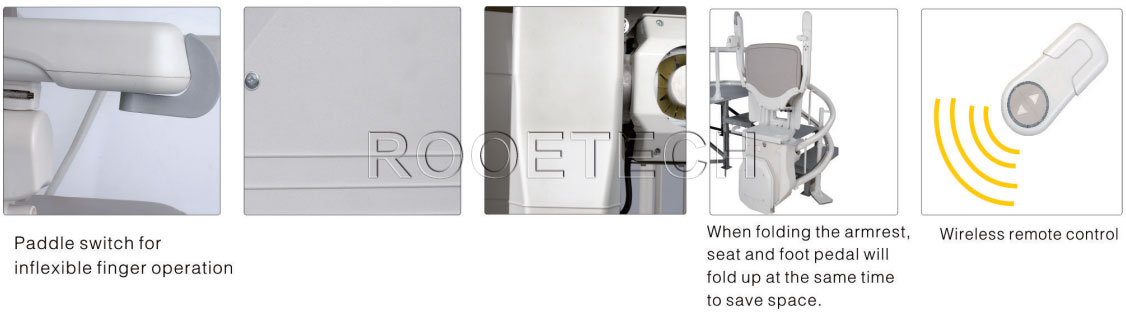

2. Handrail control device realizes the function of going up and down the stairs. Optional remote control is available.

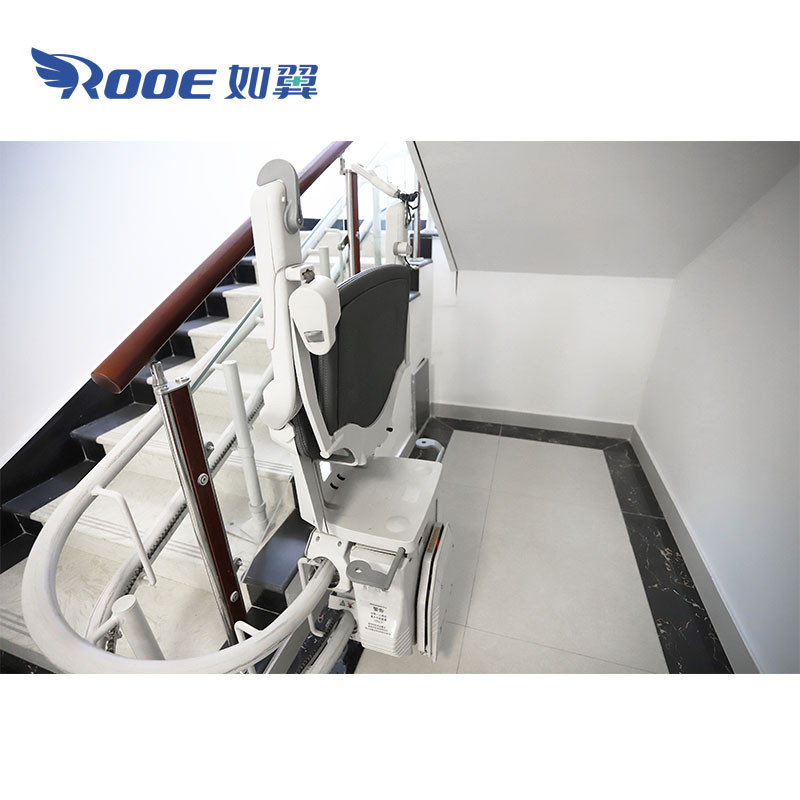

3. Handrail, seat and footrest can be folded when not in use.
4. Seat can be rotated 90° for safe exit.
5. Obstacle sensor and retractable seat belt provide safety.
6. Built-in battery makes it easy to cope with power outages.
How to use electric stair lift?
♦When the passenger presses the switch button, the elevator will travel up or down the stairs.
♦It has automatic sensing function and will automatically stop running when encountering obstacles to ensure safety.
♦If the switch is released along the way, the elevator will stop immediately.

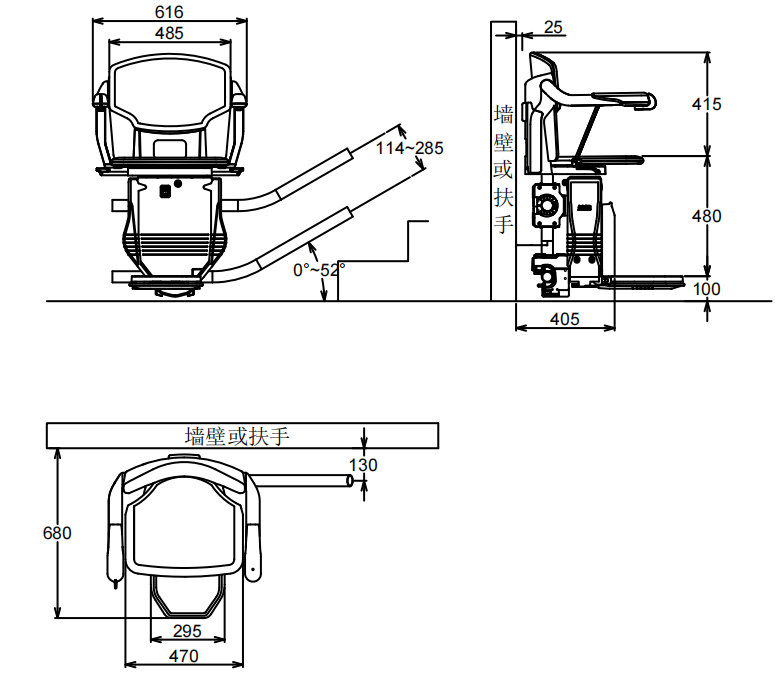

Model | EA-10FPN |
Safety load: | 120kg |
Rail max rising angle: | 52° |
Running speed: | 6.8 m/min |
Rail tube diameter: | 45mm |
Distance between wall and rail: | 130mm |
Noise(under max load): | 70dBA |
Distance between stair surface and rail: | 80mm |
Drive motor power: | 200w |
Power: | 2*12v-7Ah |
Driving mode: | Gear and rack |
Accessories | |
Remote control 2 pcs with AAA battery | |
Emergency operation handle: | 1 pc |
Recharger 1 pc Power input: | AC100- 240V, 50- 60HZ |
Power output: | DC 24V, 1A |
